CONNECTIONS & SETUP
20
CONNECTIONS & SETUP
HDSTB SETUP
This TV can receive Digital Over-the-air signal without an external digital set-top box. However, if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown
below.
Y L RPB PR
S-VIDEO
ANTENNA
IN
VIDEOVIDEO AUDIOAUDIO
COMPONENT INCOMPONENT IN
ANTENNA
IN
HDMI IN
ANTENNA
IN
ANTENNA
IN
RGB IN
AUDIO (RGB/DVI)
RGB IN
AUDIO (RGB/DVI)
RGB (PC/DTV)
HDMI IN

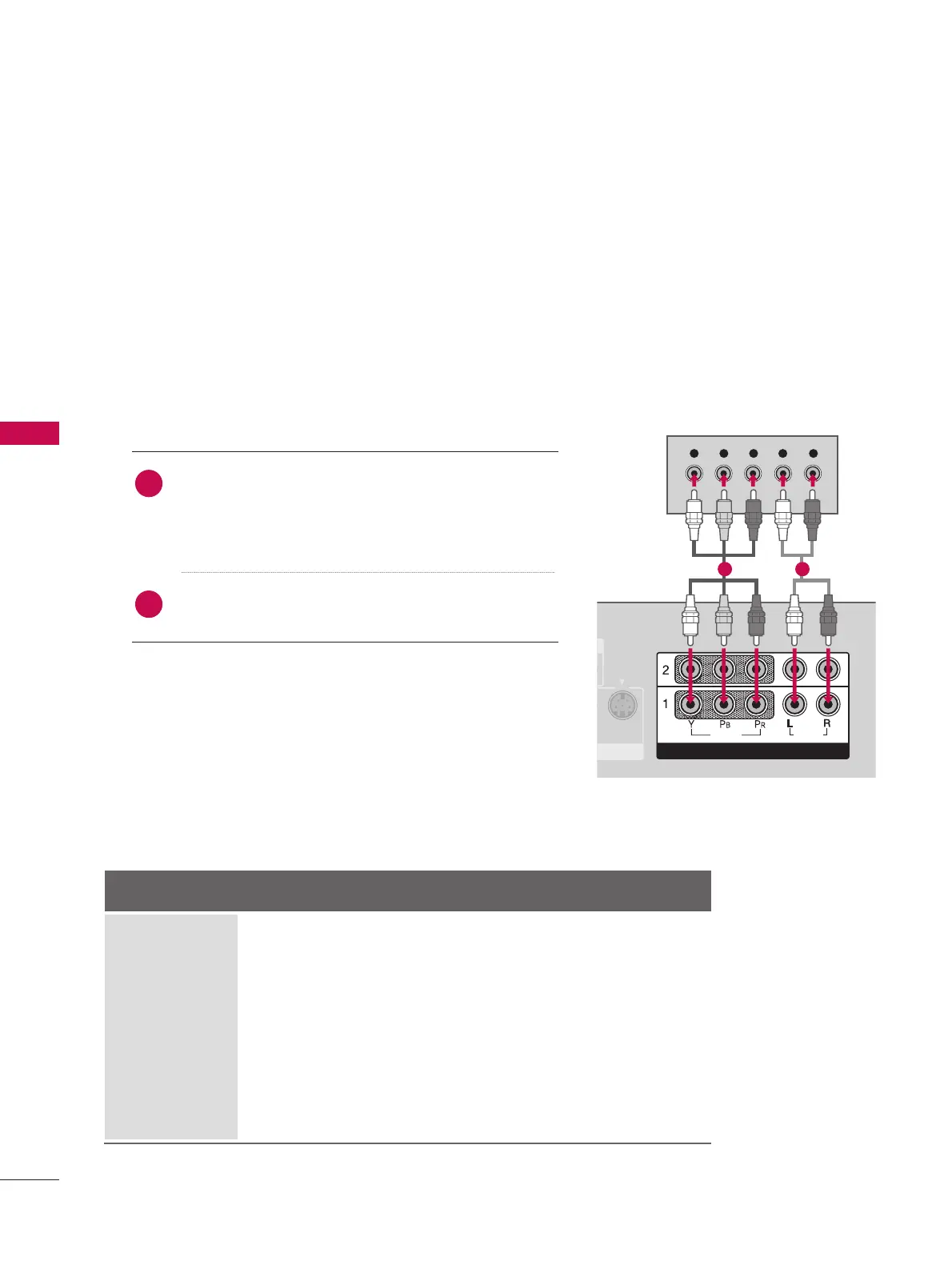

When connecting Component cable
1. How to connect
Connect the video outputs
(
Y, P
B, P
R
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
jacks on
the set. Match the jack colors
(Y = green, P
B = blue, and PR = red)
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
jacks on the set.
2
1
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manu-al for the digital set-top box.
)
■
Select
CCoommppoonneenntt 11
input source using the
IINNPPUUTT
button
on the remote control.
■
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select
CCoommppoonneenntt 22
input source.
Signal
480i
480p
576i
576p
720p
1080i
1080p
(24, 30, 50, 60 Hz)
((4422//4477LLBB22DDEE oonnllyy))
Component 1/2
Yes
Yes
Yes
Yes
Yes
Yes
24p/30p
RGB-DTV
No
Yes
No
Yes
Yes
Yes
No
1 2
HDMI
No
Yes
No
Yes
Yes
Yes
Yes
* In some resolution (1080p), the PIP, Twin Picture, TV Guide, and some other functions are not available.
