12. EXPLODED VIEW & REPLACEMENT PART LIST
12. EXPLODED VIEW & REPLACEMENT PART LIST

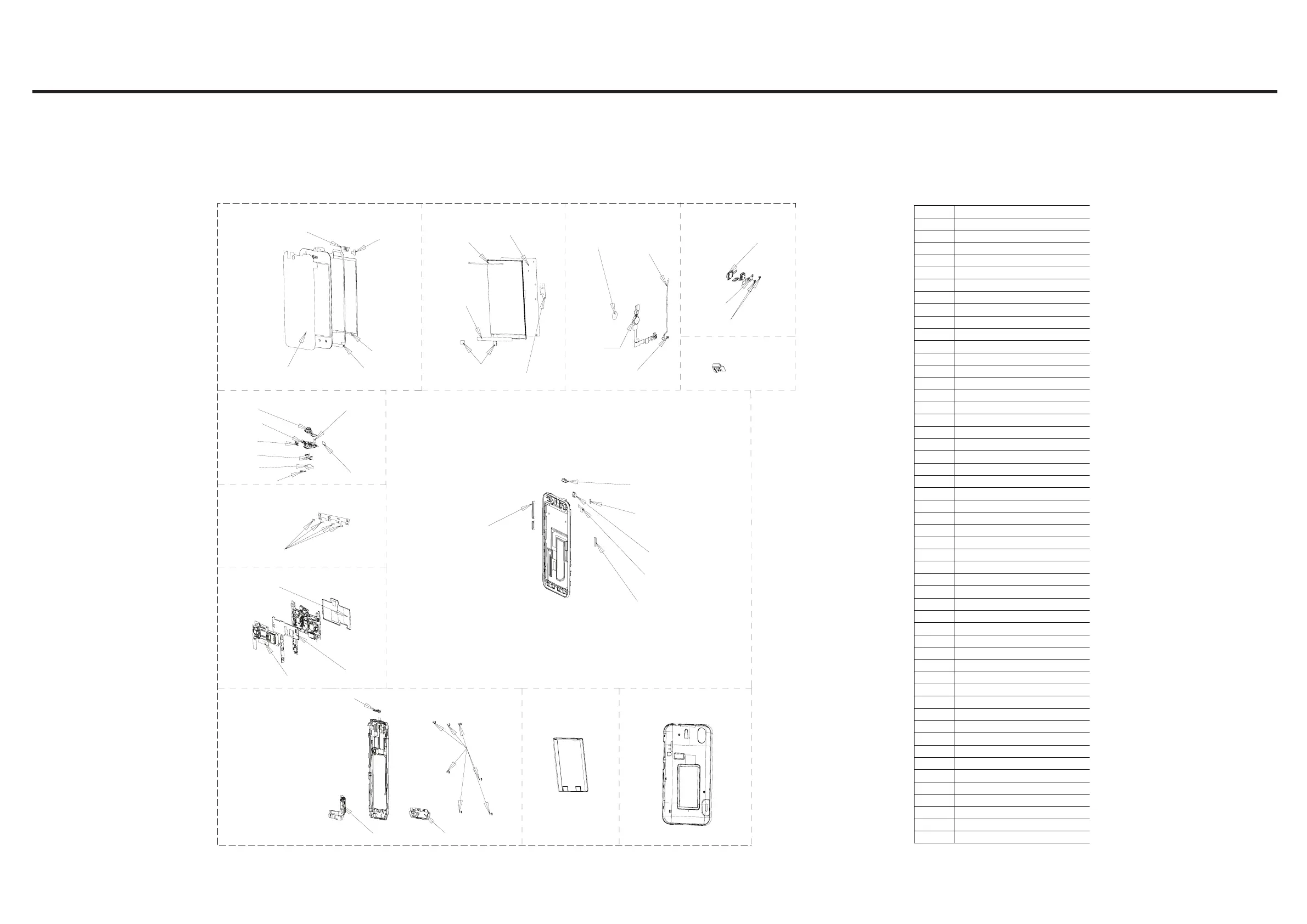

12.1 EXPLODED VIEW
EBD00
EBR01 ACQ01
MHK00
EBR03
ACQ00 EAC00 ACQ02
EAJ00 EBR02 EBR00
SVCY01
MDJ00
MEV02
MHK01
MJN02
SJMY00
GMZZ00
EAD00
EAB01
MAZ00
GMEY01
MEV00
MJN03
MCQ04
MEV01
MJN01
SVCY00
MJN000
MBG00
MBG01
MCQ05
MBL01
MCQ02
MCQ07
SUMY00
MEG00
MAZ01
MCQ06
MHK02
MCQ03
MCQ01
ABM00
ABM01
MBL00
EAB00 EAA00
GMEY00
EBR04
MJN00
MCQ00
Location Description
ACQ00 Cover Assembly,Rear
MBL00 Cap,Receptacle
EAA00 PIFA Antenna,Multiple
EAB00 Speaker Module
SVCY00 Camera Module
SJMY00 Motor,DC
EBR00 PCB Assembly,Flexible
EBR01 PCB Assembly,Flexible
EBR02 PCB Assembly,Flexible
SUMY00 Microphone,Condenser
EBD00 Touch Window Assembly
EAJ00 LCD,Module-TFT
EAD00 Cable,Assembly
EAB01 Receiver
ACQ01 Cover Assembly,Front
MBG00 Button
MBG01 Button
MJN000 Tape
GMEY01 Screw,Machine
GMZZ00 Screw,Machine
MAZ00 Bracket
MAZ01 Bracket
MBL01 Cap
MCQ00 Damper,LCD
MCQ01 Damper
MCQ02 Damper
MCQ03 Damper
MCQ04 Damper,LCD
MCQ05 Damper
MCQ06 Damper
MCQ07 Damper,LCD
MDJ00 Filter
MEG00 Holder
MEV00 Insulator
MEV01 Insulator
MEV02 Insulator
MHK00 Sheet
MHK01 Sheet
MHK02 Sheet
MJN00 Tape,Window
MJN01 Tape,Window
MJN02 Tape
MJN03 Tape
EBR03 PCB Assembly,Main
ABM00 Can Assembly,Shield
ABM01 Can Assembly,Shield
SVCY01 Camera Module
EBR04 PCB Assembly,Flexible
GMEY00 Screw,Machine
ACQ02 Cover Assembly,Battery
EAC00 Rechargeable Battery,Lithium Ion
