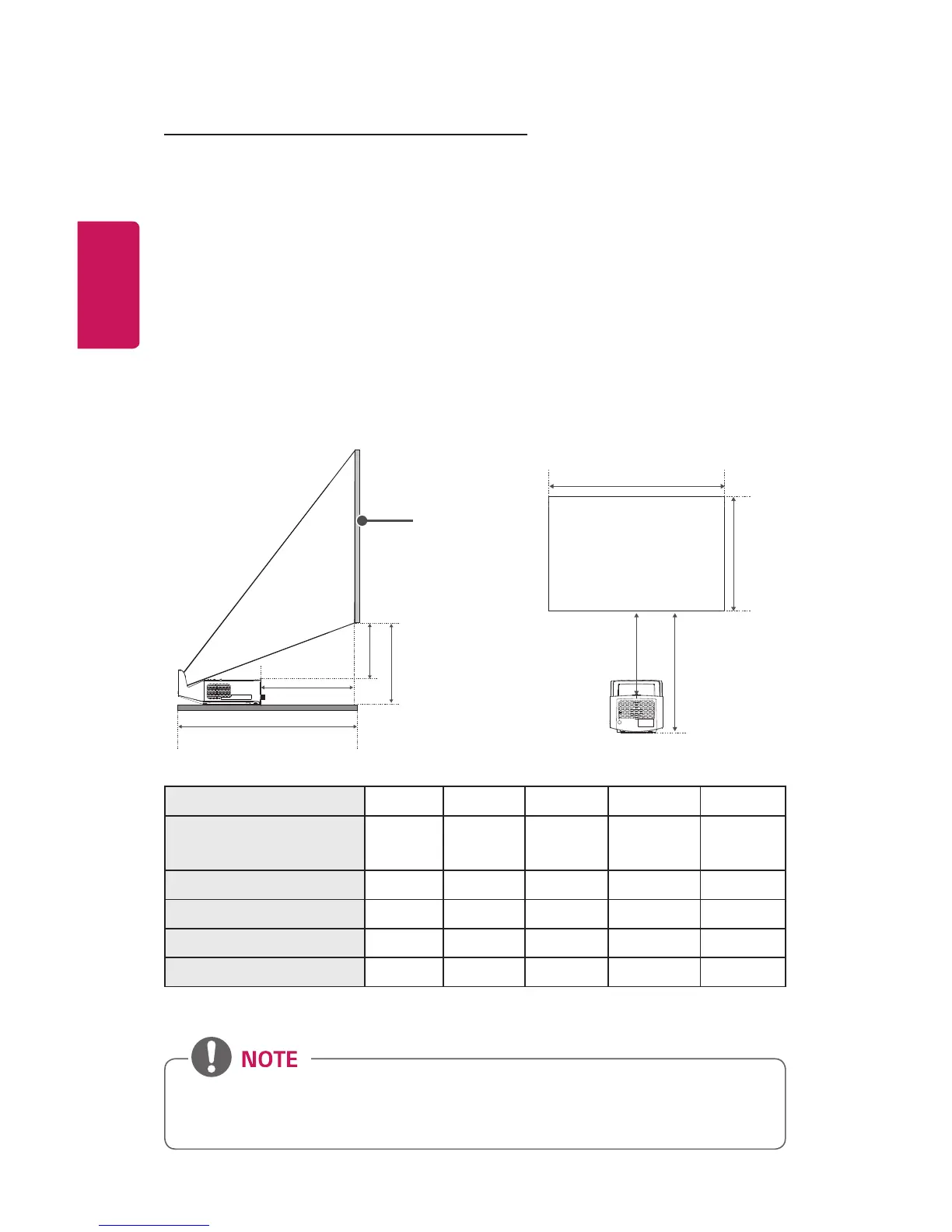

Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the PC or audio/
video source.
2 Place the projector an appropriate distance away from the screen. The distance
between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is at a right angle to the screen. If the
projector is not at a right angle, the projected image will look distorted. To
correct the distortion, use the Edge Adjustment function.
4 Connect the power cord of the projector and the connected device to the wall
outlet.
Ratio of upward projection: 125 %
Screen Size [mm] 1524 1778 2032 2286 2540
Horizontal Size (X) x
Vertical Size (Y) [mm]
1328 x
747
1550 x
872
1771 x
996
1992 x
1121
2214 x
1245
A [mm] 414 482 550 618 686
B [mm] 105 173 241 309 377
C [mm] 149 181 213 245 276
D [mm] 241 273 304 336 368
The projection distance may vary depending on the installation conditions.
•If the projected image looks distorted or bent, check to see if the screen is
installed properly.
To Next Page
