8 Assembly
8.1 Potential Equalisation
The bed is equipped with a standard protective connector. This connector is used for potential equalisation
between the bed and any intravascular or intracardiac device connected to the patient to protect the patient from
static electric shocks.
Use equalisation connector if:
 The patient is connected to any intravascular or intracardiac device.
Before connecting the patient to an intravascular/intracardiac device:
 Connect the ground wire of the device to the potential equalisation connector (Fig. 1) on the bed on which
the patient in question is lying.
 Use a standard hospital connector (Fig. 2).
 Make sure the connectors match.
 Make sure there is no possibility of accidental disconnection.
Before moving the bed:
 Disconnect the patient from the intravascular or intracardiac device.
 Disconnect the potential equalisation connector.
WARNING!
Risk of injury when working on the bed!

Ensure the bed is disconnected from the mains connection prior to assembly, disassembly and
maintenance.

Ensure the castors are locked prior to assembly, disassembly and maintenance.
CAUTION!
Material damage due to incorrect assembly!

Ensure the assembly is performed only by seller´s customer service or trained hospital personnel.

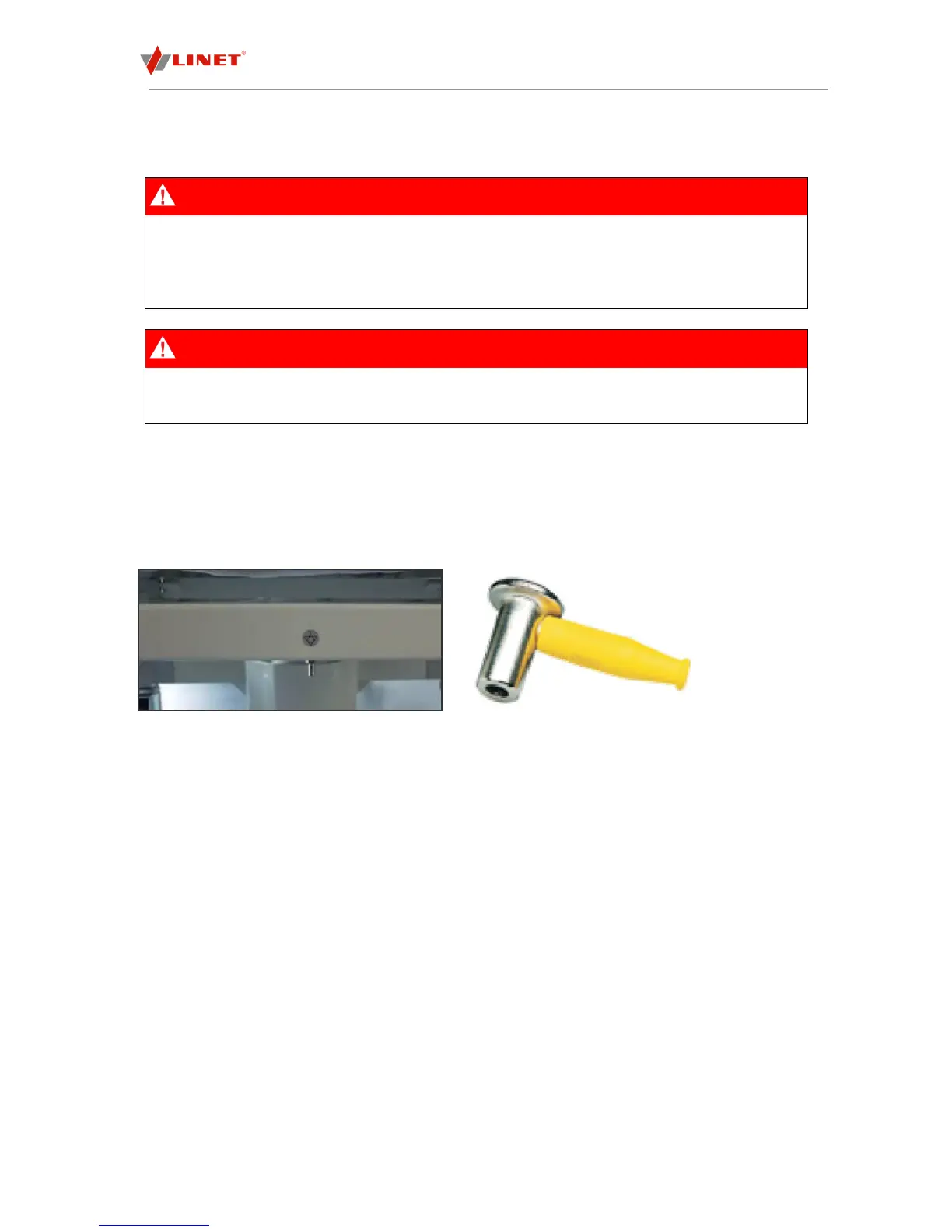

Fig. 1 Potential equalisation connector – male
Fig. 2 Potential equalisation connector – female
