8.3 Image 3 B (1AM2) - Single Collapsible Side Rails and Powder Coated Bed Ends
1. Foot end of the bed
2. Virtuoso II compressor
3. Side rail release mechanism
4. Side rail extension – Extender®
5. Virtuoso II active mattress for bariatrics
6. Head end of the bed
7. Single collapsible side rails
8. Handset
9. Castor control lever
10. Castor
11. CPR control lever – backrest release
12. Accessories rail
13. Fifth castor
14. Calf rest handle / Mattress holder
15. Housing for the Protector®
16. Bed end unlocking mechanism
17. Supervisor control panel
18. Protective bumper
NOTE For safe, easy handling, LINET® recommends that two technicians assemble the bed.

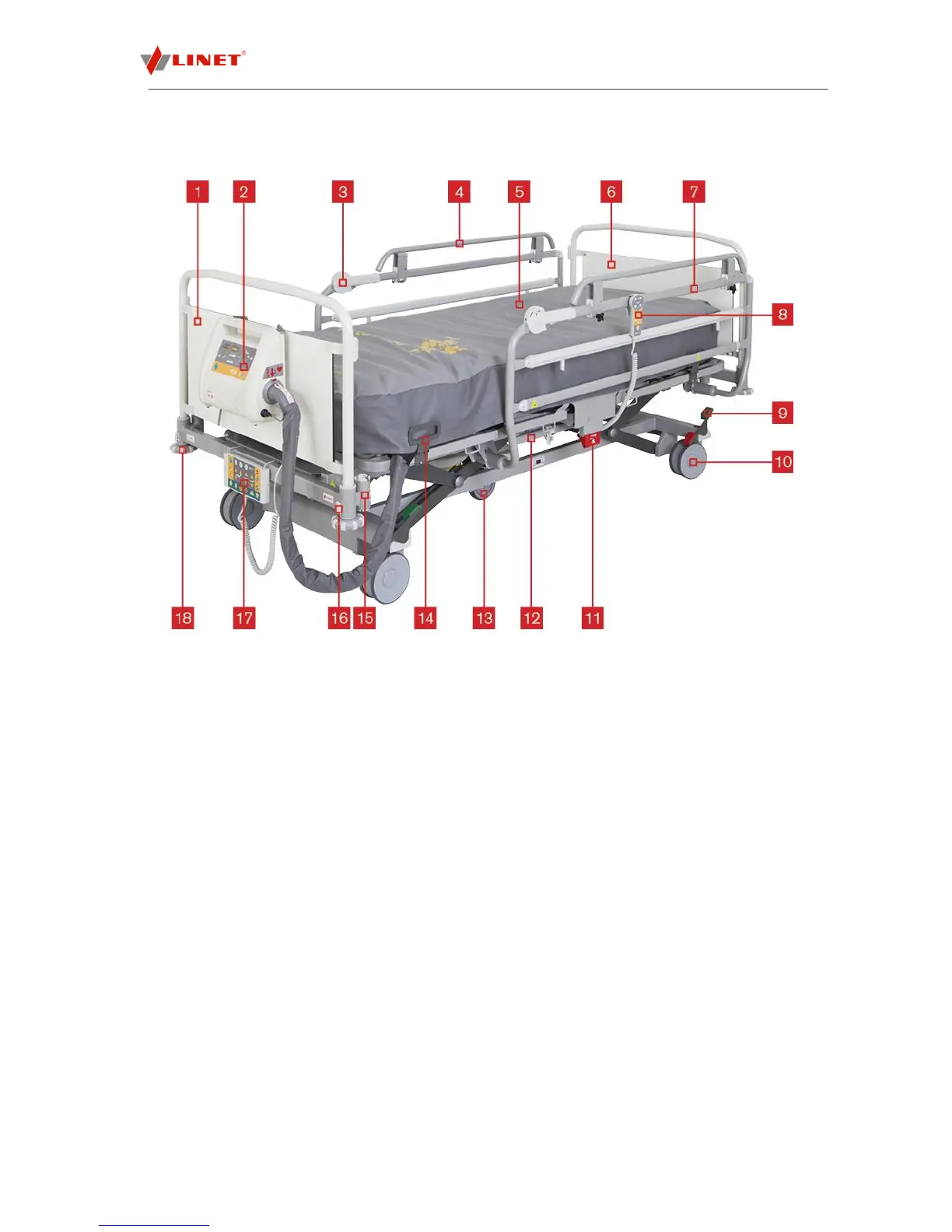

Fig. 4 Overview Image 3 B – Single Collapsible Side Rails
