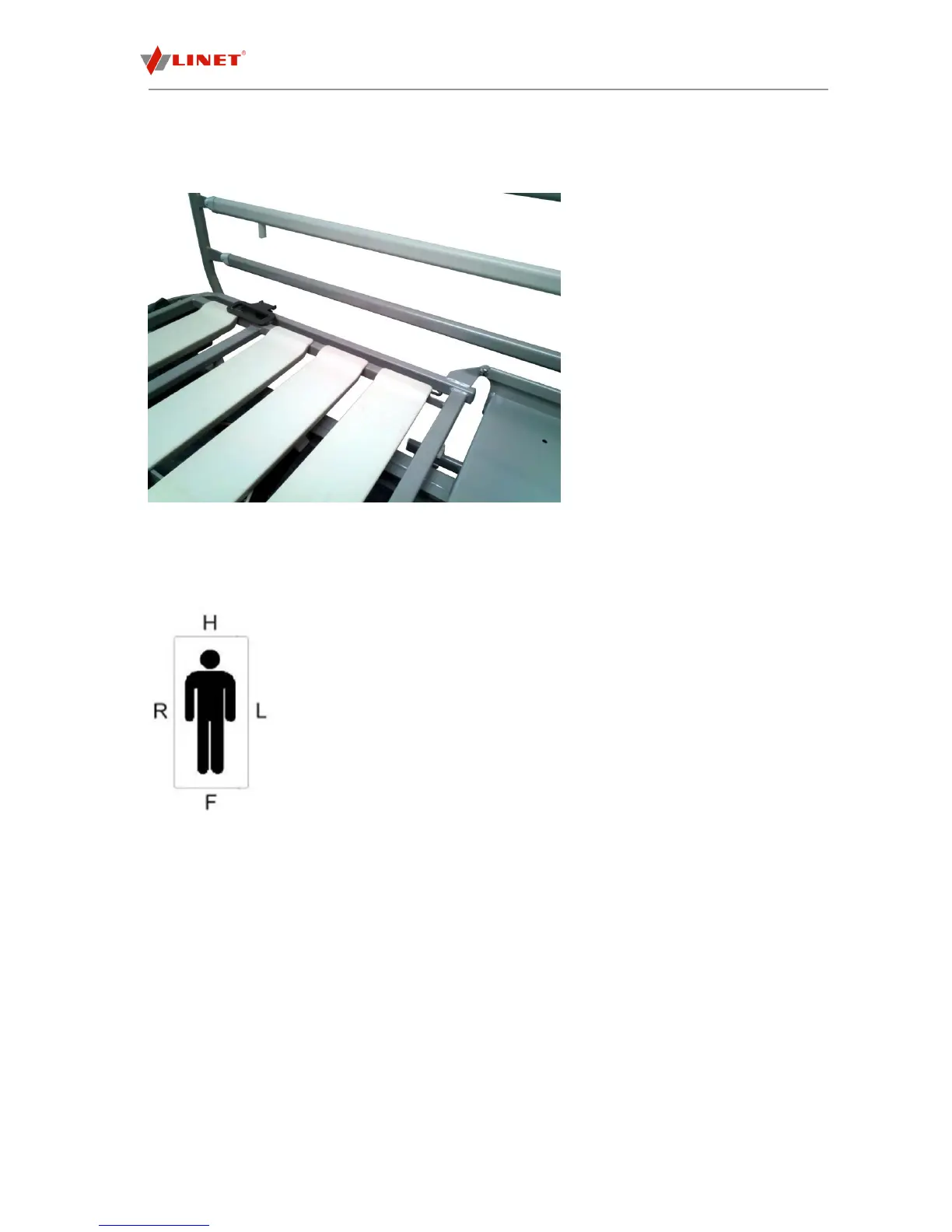

18
D9U001AM2-0101_04
8.2
Mattress platfor
m
The mattress platform consists of removable plastic sections.
To remove/install sections of the mattress platform:
Pull out mattress platform sections.
Install mattress platform section.
The correct fitting of section is signalized by hearable “click”.
Ensure that mattress platform sec
t
ions are fitted correctly by trying pull the section up with little manpower.
Fig. 3 Label on Mattress Platform Parts
17
19
