④ How to use jumper cables
※
if the battery which is attached to the tractor is discharged and needs to connect a auxiliary battery,
follow the instructions as below.
①
①①
①②
②②
②
③
③③
③ ④
④④
④
Engine
Normal Discharge
Red cable
ⓐ
ⓐⓐ
ⓐ Connecting Jumper cables
Check followings before connecting the cables.
- is the spring of clamp normal?
- Is the cable and clamp cut-off?
1. Stop engine, apply parking brake and remove the
ignition key.
2. Connect two (+) terminals of both batteries.
with red cable.
ⓑ
ⓑⓑ
ⓑ Removing Jumper cables
Remove jumper cables as referring to the right
figure, “Removing order of jumper cables”.
③
③③
③
④
④④
④
Engine
Red cable
Caution
▶
The gas generated from the battery can be exploded by spark.
▶
The negative(-) cable of auxiliary battery must be connected to the engine block,
not to the tractor battery.
▶
Keep all flames and sparks away and DO NOT smoke while you charge battery.

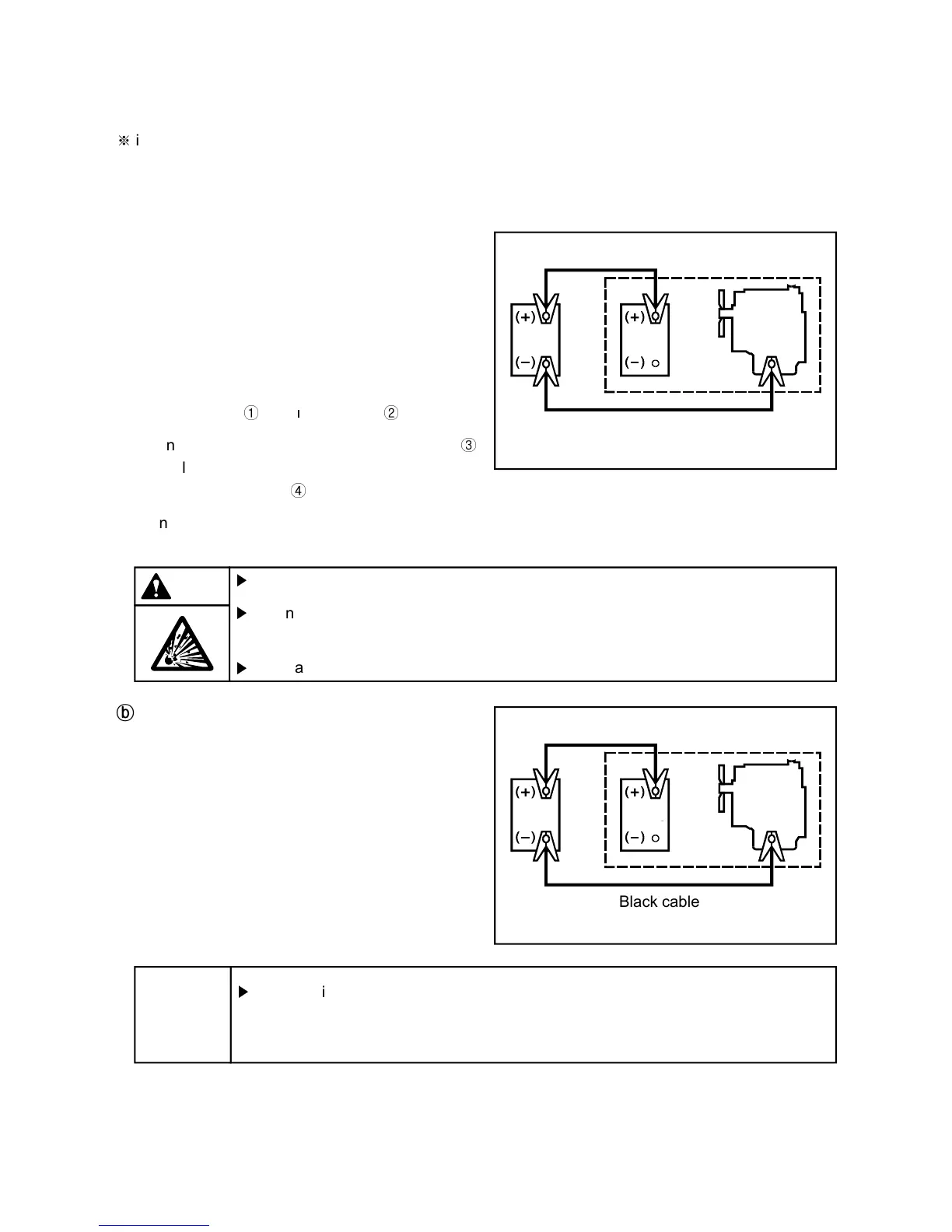

< Connecting order of jumper cables >
Black cable
3. Connect one end of black cable to (-) terminal(
③
)
of auxiliary battery and the other end to engine
block desired to start (
④
).
4. If engine does not start,
check the electrolyte level of each battery.
5
5 5
5 - 32
▶
Pay attention not to change the (+) and (-) pole. If not, it may cause a failure of
electric circuit or the damage of wire and even the polarity of battery can be
changed at over-discharged state.
Notice
< Removing order of jumper cables >
①
①①
①②
②②
②
