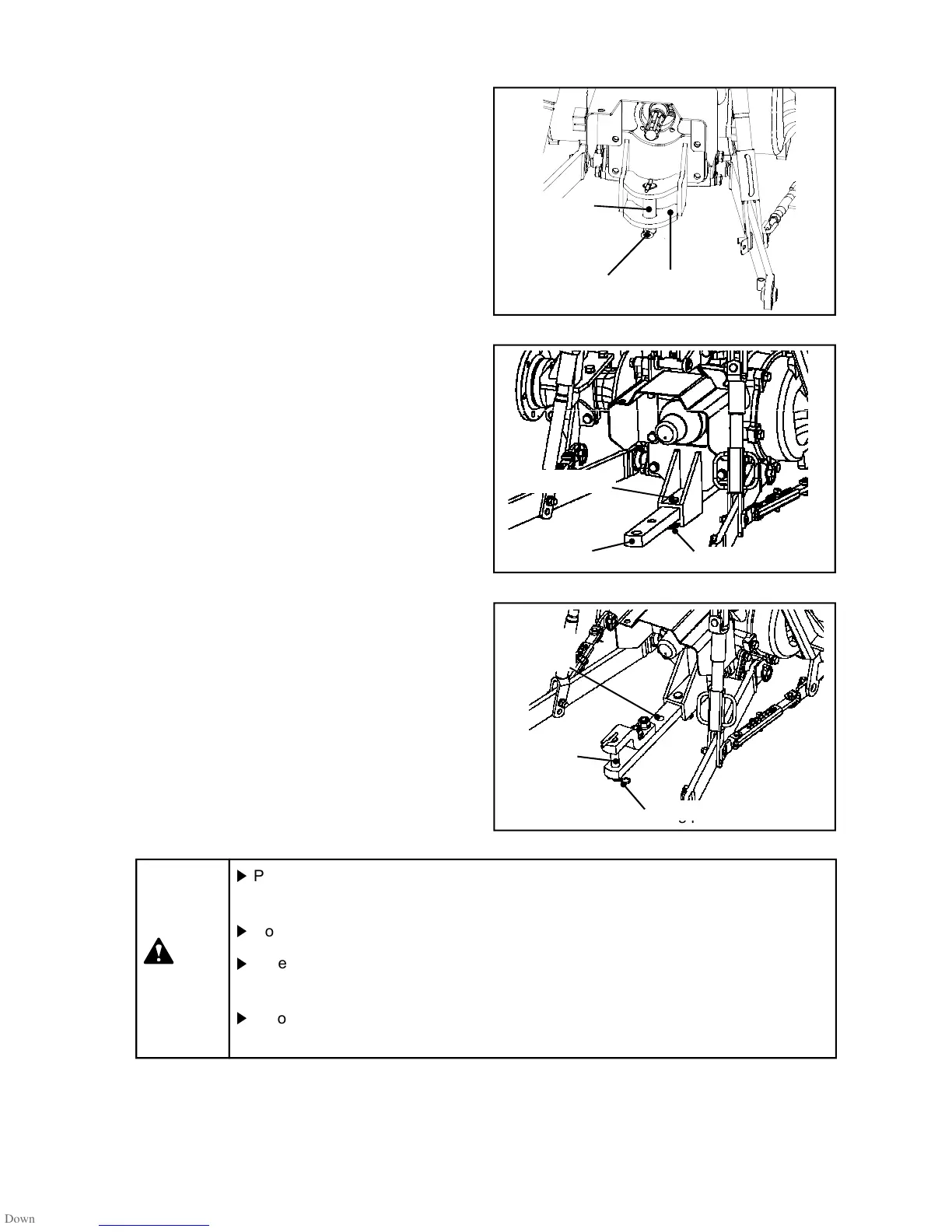

① Hitch
 Vertical load : 900kg (1984 lbs)
HitchFixing pin
Hitch pin
(8) Hitch and Drawbar (option)
 When attaching towing equipments, use the hitch
or drawbar. DO NOT use the 3-point linkage or
other parts. If so, the tractor could turnover.
 Insert the hitch pin and snap pin correctly after
attaching/detaching equipment.
 DO NOT exceed the maximum permissible
vertical and horizontal load as below.
 Horizontal load : 3600kg (7937 lbs)
②
②②
② Drawbar
 Vertical load : 400kg (Long position) (882 lbs)
575kg (Short position) (1268 lbs)
 Horizontal load : 2800kg (6173 lbs)
③
③③
③ Drawbar w/clevis
 Vertical load : 400kg (Long position) (882lbs)
575kg (Short position) (1268lbs)
 Horizontal load : 2800kg (6173lbs)
Fixing pin
Connecting pin
Drawbar
Drawbar
w/clevis
Hitch pin
Fixing pin
4
4 4
4 - 16
▶ Pulling from the tractor rear axle or any point above the axle may cause the tractor
to overturn. Use always the drawbar or hitch for pulling work.
▶ Do not tow equipment without brakes, weighing more than twice the tractor weight.
▶ When locking the hitch or drawbar with pin after aligning to the towing equipment,
apply the parking brake and stop the engine.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
Fixing pin
