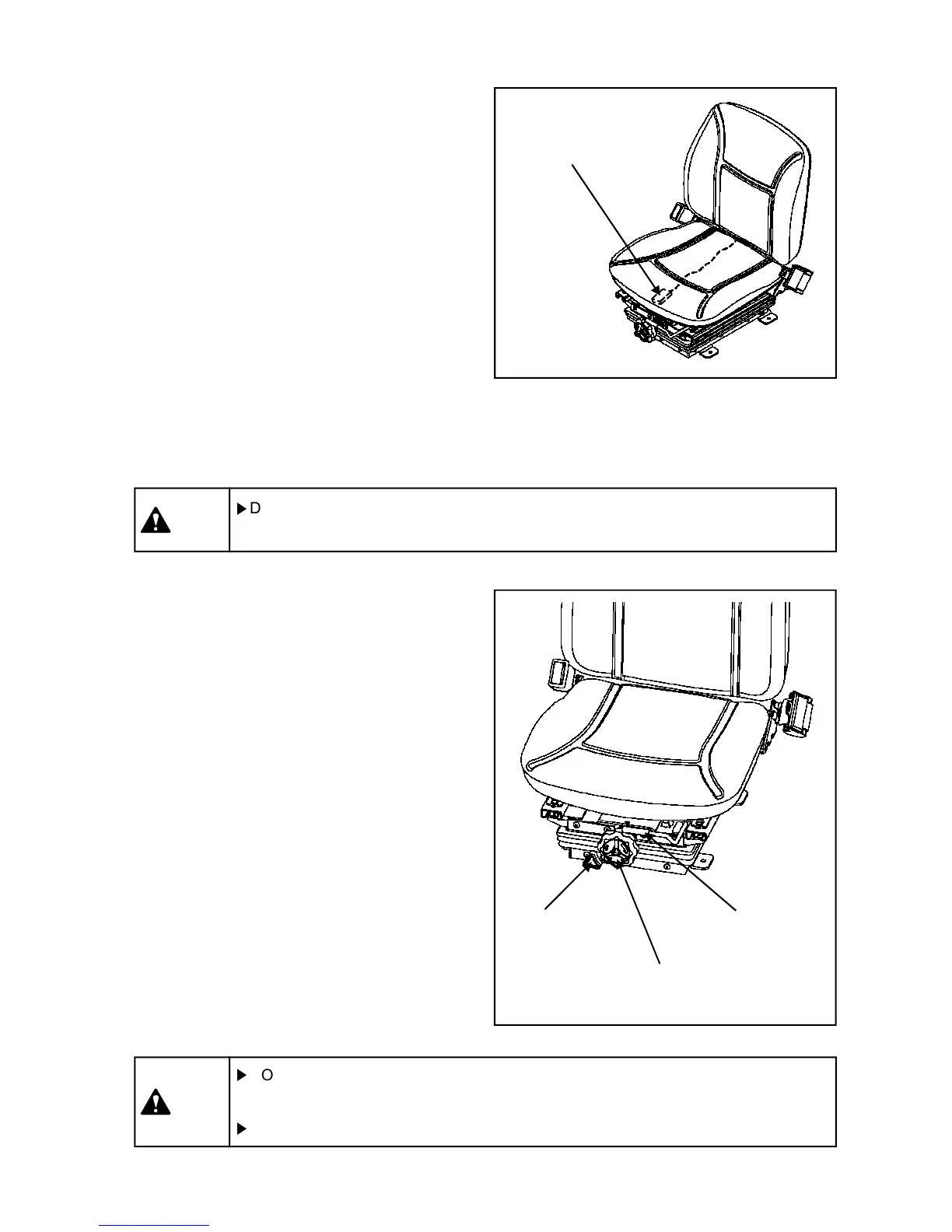

(14) Driver’s seat (HST type)
 At the lower end of the seat, there is a switch to
detect that operator is sitting in seat.
 If the operator gets up from the seat while engine is
running, the engine will stop automatically for safety
in case of ;
- getting up from the seat for more than 2 seconds
with HST pedal NOT in neutral position.
- the HST pedal is in NEUTRAL and rear PTO is
engaged without applying the parking brake.
-
the Middle PTO lever (option) is engaged.
Seat switch
warning
▶ Do not arbitrarily remove the seat switch. If it is necessary to replace the seat the
seat switch has to be replaced together. If not, the engine does not start.
-
the Middle PTO lever (option) is engaged.
 Before leaving the driver’s seat, turn the PTO switch to “OFF” and place the Middle PTO lever (option)
on “OFF” position, and apply the parking brake.
(15) Seat adjustment
 Before operating the tractor, adjust the position of
driver’s seat according to body size and length.
 Seat F/R adjustment lever
1) After sitting on driver’s seat, move the seat F/R
adjustment lever up to release the lock.
2) Move the driver’s seat forward or backward
depending on driver’s body length.
3) Release the seat F/R adjustment lever and check
the seat is locked.
3
3 3
3 - 14
warning
▶ DO NOT put your hand under the seat while sitting. It may cause a injury by seat
suspension.
▶ DO NOT adjust the seat position while driving.
the seat is locked.
 Seat height adjustment knob
1) If you turn the seat height adjustment knob
clockwise, the seat height shall be lowered.
 Weight adjustment knob
1) Adjust the seat suspension depending on your
body weight by using the weight adjustment knob.
If you turn the knob clockwise, the suspension
stiffness shall be increased.
Seat height
adjustment knob
Seat F/R
adjustment lever
Weight
adjustment knob
