DO NOT ride your foot on the clutch pedal while driving the tractor.

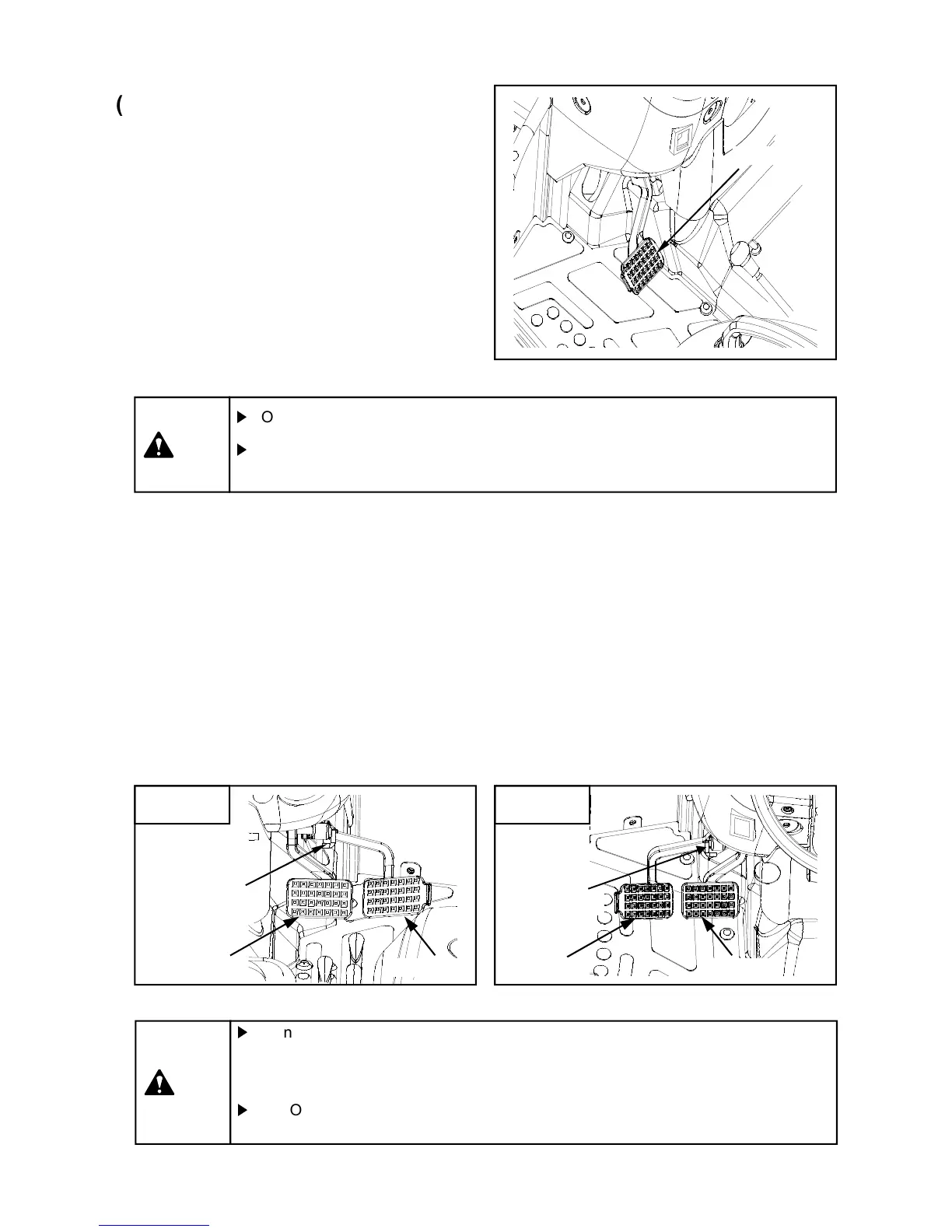

(4) Clutch pedal (Mechanical type)
 This is used to engage or disengage the main
transmission clutch for starting engine and
shifting transmission gear.
 Depress the clutch pedal quickly and fully and
release it slowly.
 If the PTO mode switch (if fitted) is placed on
“MANUAL”, the PTO shaft will NOT stop and if
the switch is placed on “INDEP”, the PTO shaft
will stop, when the clutch pedal is fully
depressed.
Clutch pedal
▶
DO NOT ride your foot on the clutch pedal while driving the tractor.
▶ As the start safety switch is installed for the operator’s safety, depress the clutch
pedal fully to start engine.
Caution
(5) Brake pedal
 When stopping, press both brake pedals together with depressing the clutch pedal.
 If disengaging the brake pedal connecting pin, you can press the left or right brake pedals. one side
at a time, the left and right brake is applied on the rear wheel of the pressed pedal.
 When working, If you press one brake pedal to the left or right, you can make shorter turning radius.
 DO NOT press the one side brake pedal while the differential lock is engaged. It may cause damage
or failure of the axle.
 Regarding the position of the brake pedals, HST type is on left side of plate form and mechanical is
on the right side plate from. Each pedals have same function on both different side.
Mechanical
HST
3
3 3
3 - 9
Brake pedal
connecting pin
Brake pedal
connecting pin
Caution
▶ When driving on the road, engage the left/right brake pedal by the brake pedal
connecting pin. If pressing one side brake pedal when driving, the tractor may
turnover.
▶ DO NOT ride your foot on the brake pedals while driving. If so, it may cause failure
of brakes.
Right side
Left brake Right brake
Left side
Left brake Right brake
