►Even though the EZ-Shift system is considered and designed for operator’s safety,
it is necessary to reduce the driving speed before shifting the shuttle lever.
Especially, ON A SLOPE, when shifting the shuttle lever in reverse/forward, the
driving speed sometimes goes faster than before shifting the shuttle lever by rolling
down. HAVE TO PRESS THE BRAKE PEDAL FOR SAFETY.
►Park the tractor on level ground and apply the parking brake. If you have to park the
tractor on a slope, apply the parking brake and apply the wheel chocks to the
wheels. To apply the low speed gear for engine brake, you have to place the EZ-
Shift shuttle lever to the forward or reverse as the slope BEFORE TURNING OFF
THE ENGINE.
EZ-Shift : downward slope ⇒ reverse 1 gear / upward slope ⇒ forward 1 gear
- Shifting the shuttle lever after turning off the key switch is NOT USEFUL, because
electric power does NOT activate the EZ-Shift actuator.

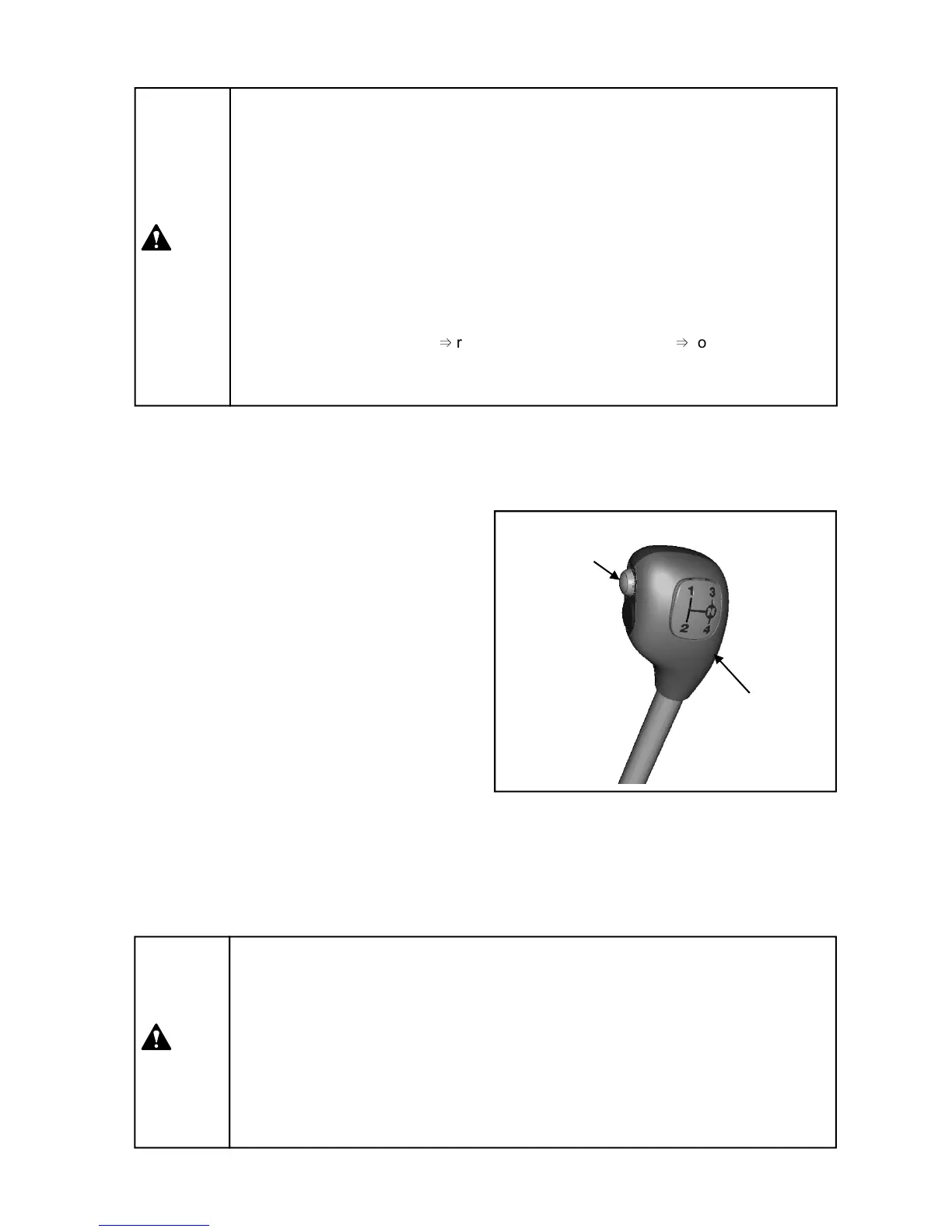

Caution
Main gear
shift lever
Main clutch
control switch
(2) Main clutch control switch (EZ-
Shift)
 The electro-hydraulic operation of the main
clutch allows the operator to control the
movement of the tractor without using the clutch
pedal by simply moving the gear lever from one
gear to another, whether forward or in reverse,
without using the clutch pedal.
 After selecting the required range, move the
shuttle lever into the forward or reverse gear
position, press the main clutch control switch
installed on the main gear shift lever in the right
figure, without pressing the clutch pedal move
the main gear shift lever onto the required gear
and release the button to set the tractor in
motion.
3
3 3
3 - 17
motion.
 If there is the need to stop the tractor
momentarily, press this main clutch control
switch with pressing the brake pedals. Release
the switch to restart work.
► Do not operate the main clutch control switch unnecessarily and habitually. It may
cause damage to the main clutch.
► Do not operate the main gear shift lever hastily after pressing the main clutch
control switch. If the engine power is not cut off completely, it may cause damage to
the synchromesh gear.
► In case of operating the main clutch control switch on the downhill area, depending
on the slope or traction load, the tractor may move down due to the consistent
clutch modulation. BE CAREFUL.
