REAR SUSPENSION BUSHES (SHACKLE & PIVOT) - INSPECT
 Rear Suspension Shackle & Pivot bushes to be inspected at every 20000 kms.
Refer below chart for Rear Suspension torque values.
REAR SUSPENSION (Leaf Spring)
U bolt 130 ± 10 Nm
Assembly Shackle plate & Pin 60 ± 10 Nm
Leaf spring end pivot 60 ± 10 Nm
Assembly Plate end pivot 25 ± 10 Nm
Rear Shock Absorber LH/RH Top/Bottom bolts 50 ± 10 Nm
Suspension – Shackle & Pivot
SUSPENSION BUSHES (SHACKLE & PIVOT) REAR - CHECK

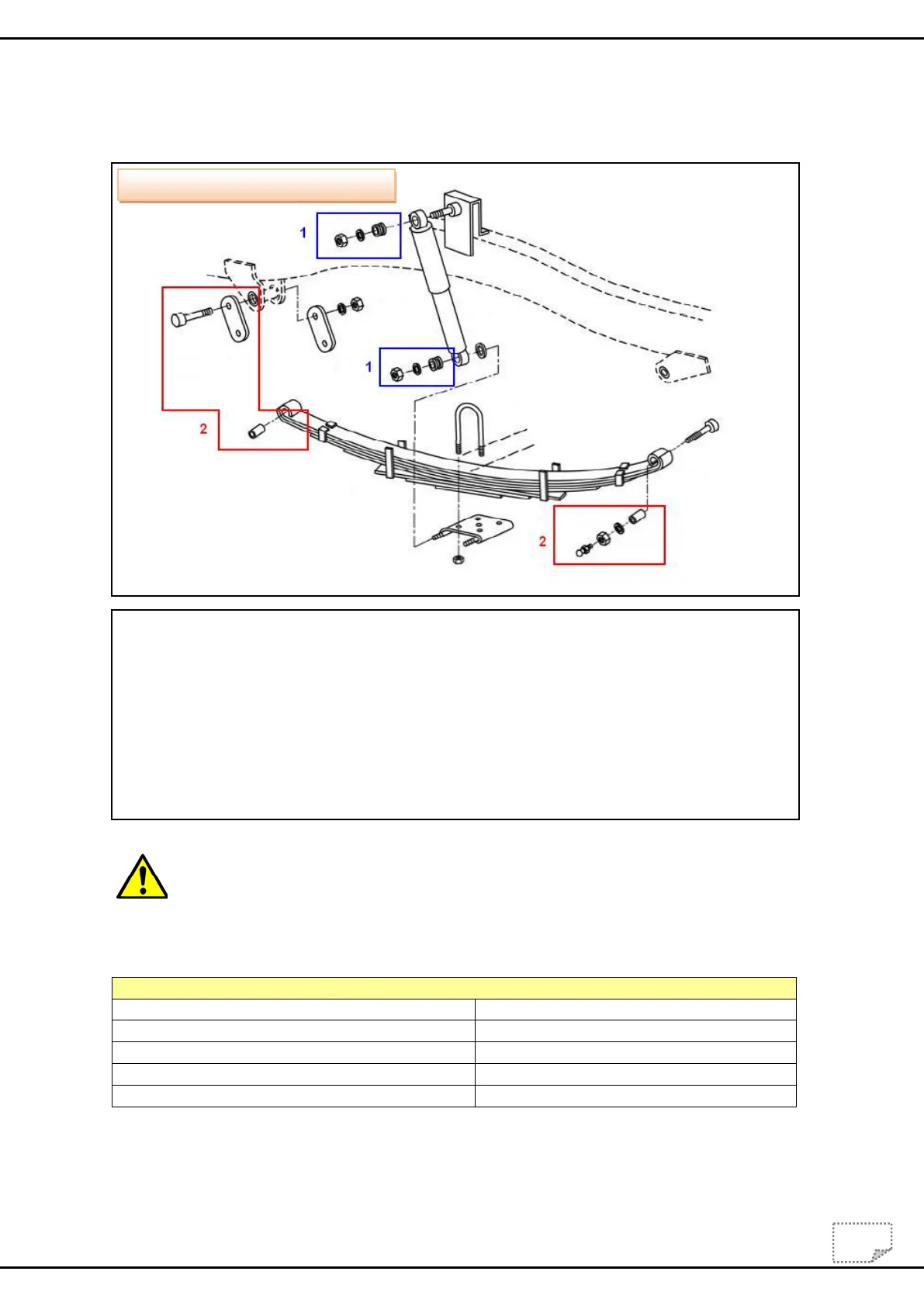

Refer illustrations shown.
1. Check the Shock Absorber bushes for wear, cracks & damage.
2. Check & ensure the lower & upper mounting nut torque.
3. Check the leaf spring bushes for wear, cracks & damage. Check & ensure the nut torque
at pin end & shackle end.
4. Grease shackle Pins; in case of Rigid Suspension.
