705-MAT-0028 : 0.20 hrs
POWER STEERING BELT - CHECK
Belt Type: 3PK, 815mm, GATES make.
POWER STEERING BELT - CHECK
Refer illustrations.
 Check the belt visually for -
1) Abrasion
2) Cracking
3) Improper Install
4) Uneven Rib Wear
5) Misalignment
6) Chunk-out
7) Gravel penetration
8) Pilling
 Check belt tension and reset tension to
specifications – Refer to procedure 705-
MAT-0029.

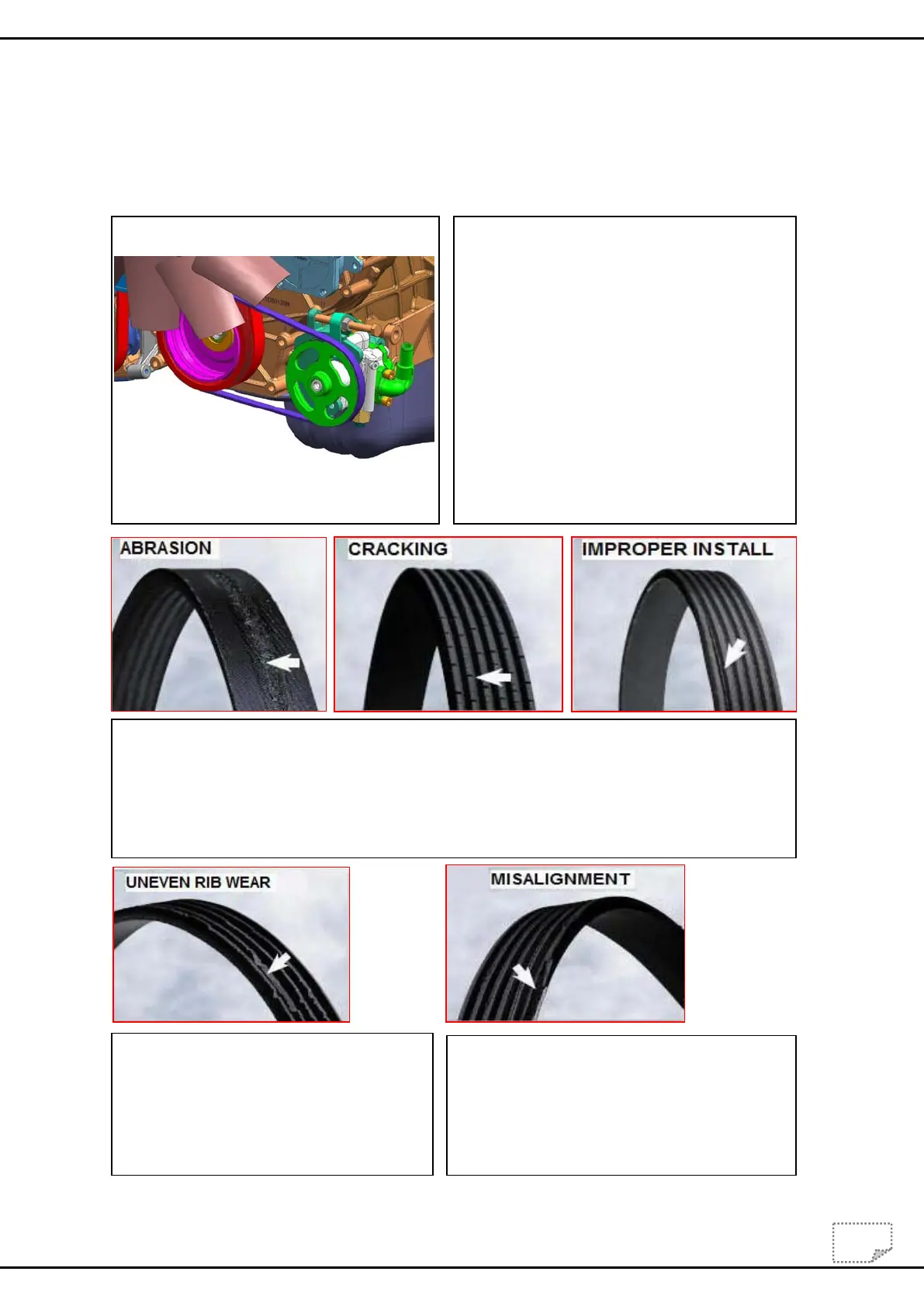

POWER STG. PUMP DRIVE BELT
Refer illustrations shown.
1. Abrasion – Each side of belt appears shiny or glazed. In advanced stages, fabric becomes
exposed.
2. Cracking – Small, yet visible cracks along the length of a rib or ribs.
3. Improper Install – A belt rib begins separating from the joined strands. If left unattended,
the cover will often separate, causing the belt to loosen.
4. Uneven Rib Wear –
Refer illustration shown.
Belt shows damage to the side with the
possibility of breaks in the tensile cord or
rough edged ribs. A thumping noise may
also be heard when running.
5. Misalignment –
Refer illustration shown.
Sidewalls of the belt may appear glazed or the
edge cord may become frayed and ribs
removed. A noise may result. In severe cases,
the belt can jump off the pulley.
