Maintenance Manual MAN-00135
GENIO DC (BS-III & BS-IV) JULY 2011/Rev1
The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes
introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of or
whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the
Authorized Service Centre of Mahindra & Mahindra Ltd., will amount to unauthorized use and shall be liable for penalty/prosecution © 2011 Mahindra & Mahindra Ltd.
42

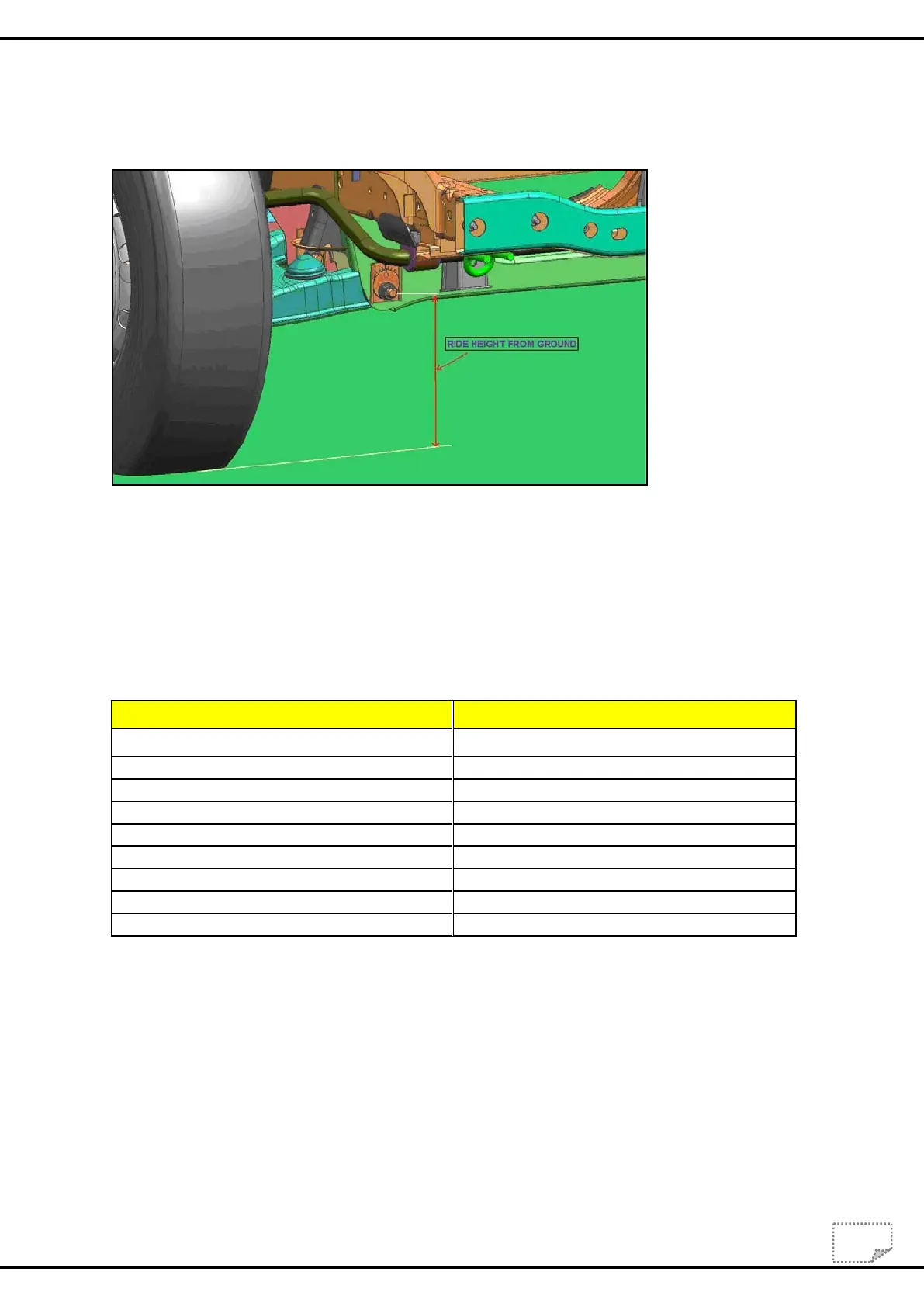

Ride height - Is the verticle distance between front camber bolt nut side end center to the ground
plane.
The ride height should be Unladen 346 ± 5 mm; Laden 281 ± 5 mm.
If ride height is not within limits then please check for the coil spring damage or any issue is the
rubber or mounting bolt area or weak shock absorber. Also confirm if the shock absorber
projection is as per the specification. Last parameter to be checked should be the rubber bushes of
the LCA and UCA.
Wheel alignmnet Parameters -
Description Parameters
Toe-in partial 0 to 1 mm ( 0 to 13’)
Toe-in Total 0 to 2 mm ( 0 to 26’)
Camber - 30' to + 10'
Difference between LH & RH camber 30’
Caster 1°45' to 3°45'
Difference between LH & RH caster 1°
King pin Inclination 10°30’ to 12°30’
Wheel turning angle- Inner (Max) 35˚ to 38˚
Wheel turning angle- Outer (Max) 34˚ to 36˚
