Makita 2704 User Manual

10
When using the sub table (R ), locate the scale plate on the sub table after
loosening the screw on it with a screwdriver so that it becomes successive with
the scale plate on the main table.
Sub table (back)
(optional accessory for other than European countries)
To use the sub table (back), loosen the screw on the left hand side under the
table and pull it out backwards to the desired length. At the desired length,
tighten the screw securely.
NOTE:
• When using the sub table (back ) during use of the rip fence, pull out the
sub table (back) more than 50 mm so that it does not hit against the top
end of the rip fence.
Sub table (L) (optional accessory)
Sub table (L) (optional accessory) can be installed on the left side of the table
to obtain wider space.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
The tool is shipped from the factory with the saw blade and blade guard not in
the installed condition. Assemble as follows:
Installing or removing saw blade
CAUTION:
• Always be sure that the tool is switched off and unplugged before
installing or removing the blade.
• Use only the Makita socket wrench provided to install or remove the
blade. Failure to do so may result in overtightening or insufficient
tightening of the hex bolt. This could cause an injury.
• Use the following saw blade. Do not use saw blades which do not comply
with the characteristics specified in these instructions.

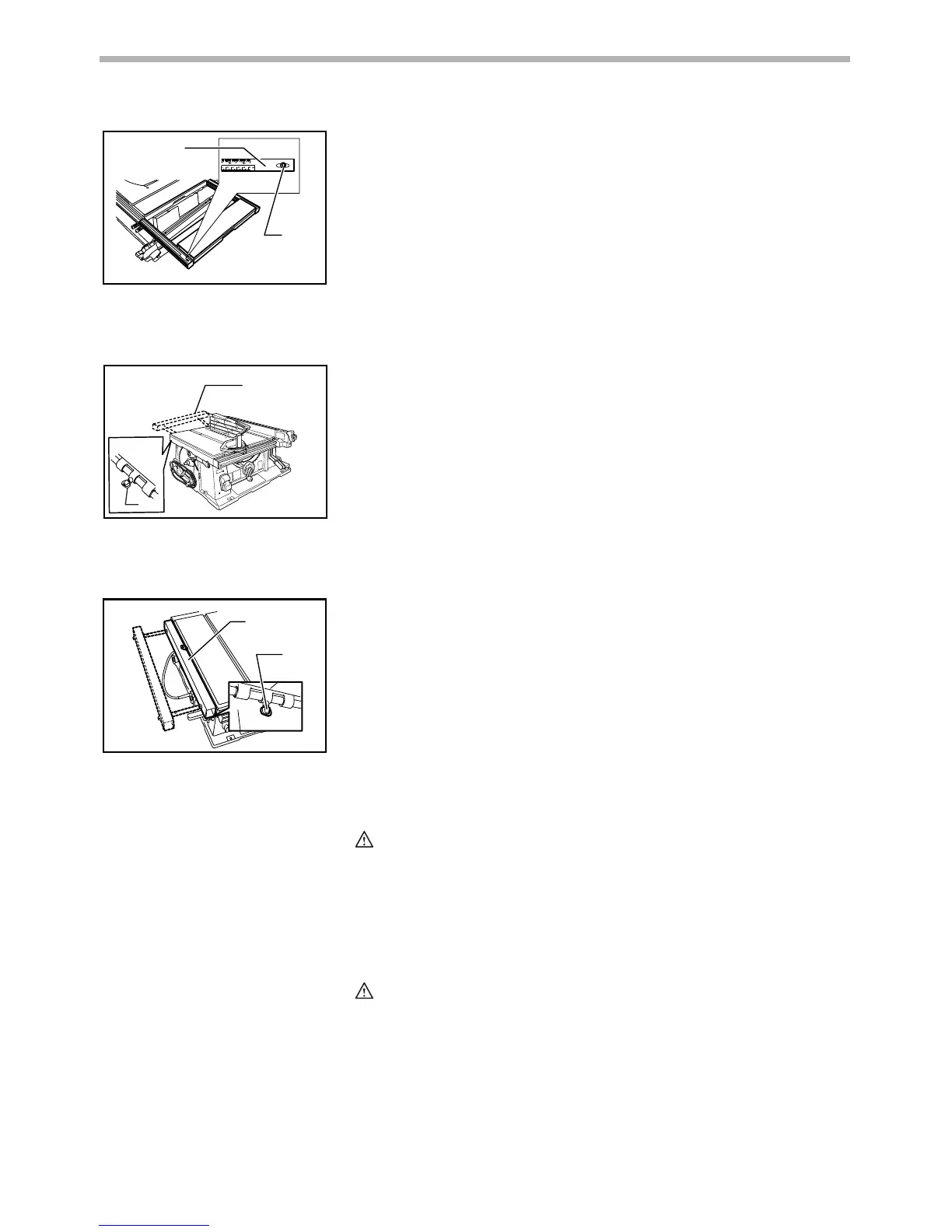

1. Scale plate
2. Screw
1
2
006162
1. Sub table (back)
2. Screw
1
2
006212
1. Screw
2. Sub table (L)
2
1
006151

Makita 2704 Specifications

General

Input power	- W
Blade bore	15 mm
Blade diameter	255 mm
Saw blade included	-
Idle speed (max)	4800 RPM
Cutting depth (45º)	63 mm
Cutting depth (90º)	91 mm
Product color	Blue, Stainless steel
Placement supported	Tabletop

Weight and Dimensions

Depth	665 mm
Width	753 mm
Height	344 mm
Weight	28000 g
Bore diameter	15.88 mm
