4. MMDS-CLC 6.5 ship's alarm display, operation
Introduction
This document describes how the MMDS-CLC 6.5 colour display with MMDS-CLCB 6.5 remote control op
erates and is used as a ship's alarm display. Fitting, mounting and installation are explained in separate in
structions for the unit.
The data monitored on the ship is visualised by the corresponding symbols and displays on the colour dis
play. LED symbols and a table that lists all active alarms with detailed information indicate states of alarm.
For commissioning and service, there is a service page where all the measured values as well as alarm
states of all sensors can be viewed at a glance.
To optimise adjustment to the user's requirements, five languages and display of the data in either metric
or non-metric units can be selected.
Buttons
6
5
4
3
2
1

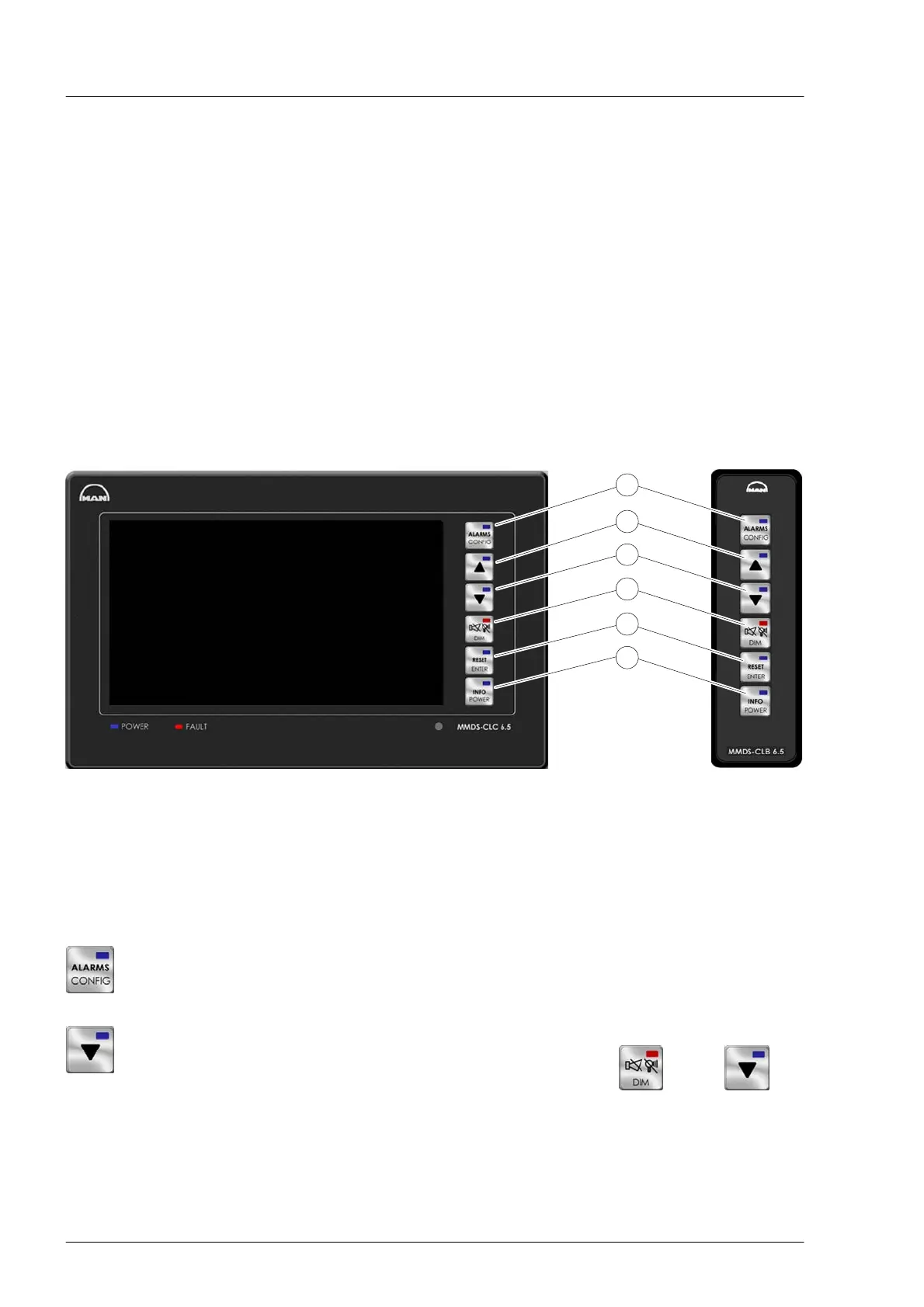

MMDS-CLC 6.5 ship's alarm display
Operational functions and configuration
The operation of the system and the display adjustment is carried out with the display buttons or the re
mote control MMDS-CLCB 6.5.
The following functions are implemented:
Standard function: Call the alarms table, or browse to further alarm pages.
Additional function: If pressed longer than 5 seconds ⇒ Switches configuration menu on and off.
Standard function: Page back to the previous page
Additional dimming function: On simultaneous actuation of the buttons (4) and (3)
the brightness is reduced.
Additional function in the menu: Change parameter / reduce value.
To Next Page
