MasterCraft NXT20 2017 User Manual

2017 OWNERS MANUAL / 50
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
01 02 03 11 131208 09 1007 1404 1705 06 15 1816 19 20 21 22 23 24 25 26 28 29 3027

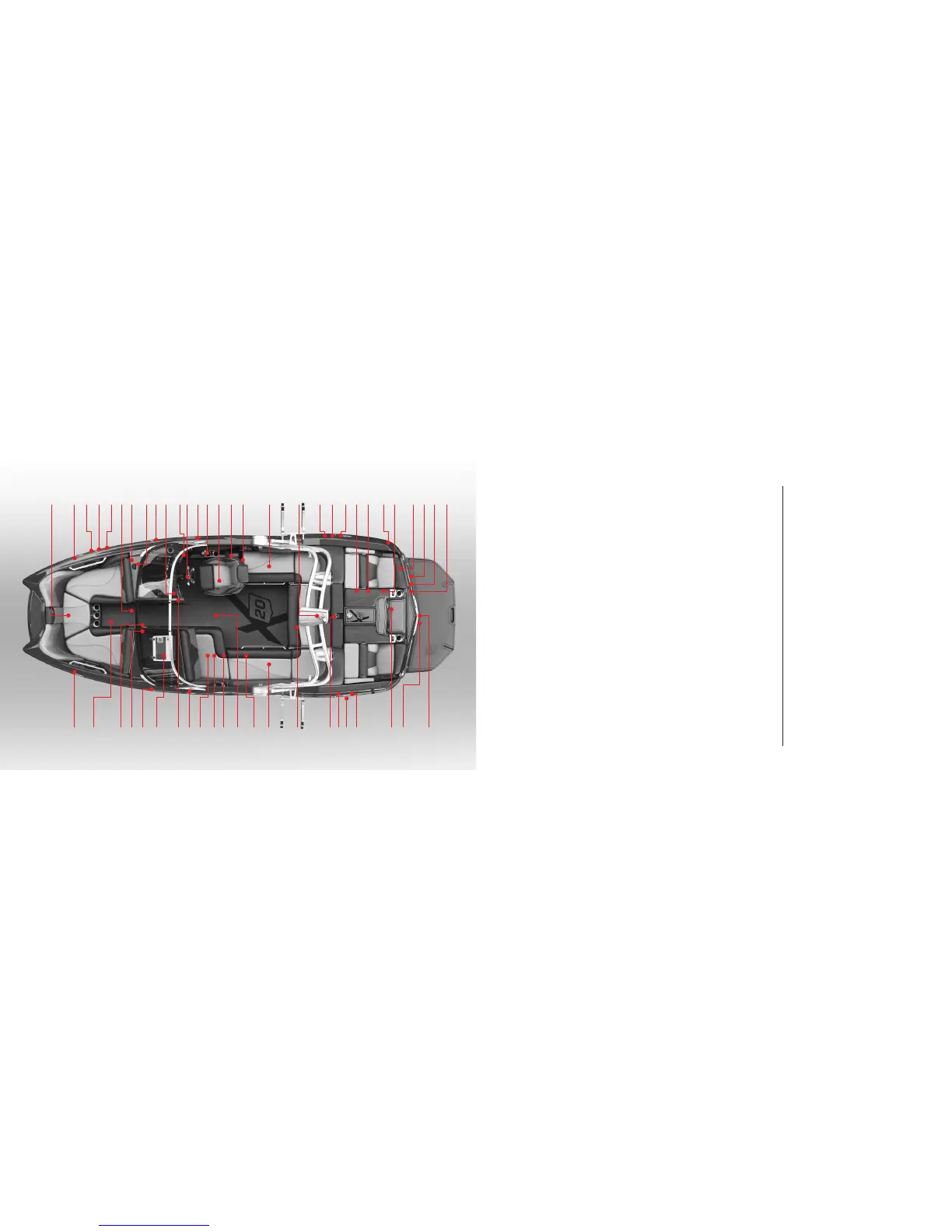

FEATURES
01. Anchor storage
02. Bow cleat
03. Horn
04. Bilge thru-hull outlet
05. Ballast thru-hull vent
06. Ballast tank (located beneath floorboard)
07. Lifting bow back storage
08. GPS
09. Navigation light
10. Adjustable mirror
11. Instrument panel (details in Video Display
Gauge section)
12. Steering wheel
13. Midship cleat
14. Shift-throttle control
15. Heated seat (where equipped)
16. Fire suppression unit manual override
17. Subwoofer (where equipped)
18. Cooler (under gas-assisted seat lift)
19. Navigation light
20. Ballast thru-hull vents
21. Fuel tank filler
22. Stern cleat
23. Automatic fire extinguisher (inside engine
compartment)
24. Engine compartment
25. Bilge thru-hull vent
26. Sea strainer
27. Convertible aft seating (both port and starboard)
28. Engine exhaust (under swim platform)
29. Underwater lights (two, where equipped,
under swim platform)
30. GEN2 Wake Shaping Device (beneath swim
platform, both sides)
31. Bow cleat
32. Bow filler cushion (where equipped)
33. Circuit breaker panel (walk-thru side panel)
34. Batteries ON-OFF switch (walk-thru side panel)
35. Navigation light
36. Glovebox
37. Stereo remote (on dash)
38. Mid-ship cleat
39. Amp (where equipped, under observer seat)
40. Hand-held fire extinguisher (beneath
observer seat)
41. Observer seat (heated, where equipped)
42. Center drain plug (under inspection plate)
43. Heater vent (where equipped)
44. Batteries (under observer seat)
45. Reversible seating (where equipped)
46. Removable ski pylon
47. Fuel tank filler
48.Ballast thru-hull air vent
49. Stern cleat
50. Transom stereo remote (where equipped)
51. Center tab plate (under swim platform)
52. Billet grab handle with tow eye
SPECIFICATIONS
Length of Boat 20’ 0”
Width Amidship 98”
Boat Weight 4,800 lbs.
Length of Boat w/Platform 22’ 5”
Towing Length 25’ 6”
Towing Width 102”
Fuel Capacity 47 gallons
Maximum Capacity 12 people
or 1,595 lbs.
Bow: 4 people or 600 lbs.
Weight must be evenly distributed.
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
X20
