2017 OWNERS MANUAL / 178
TAB SETTINGS
(SPEED, AUTO, POSITION)

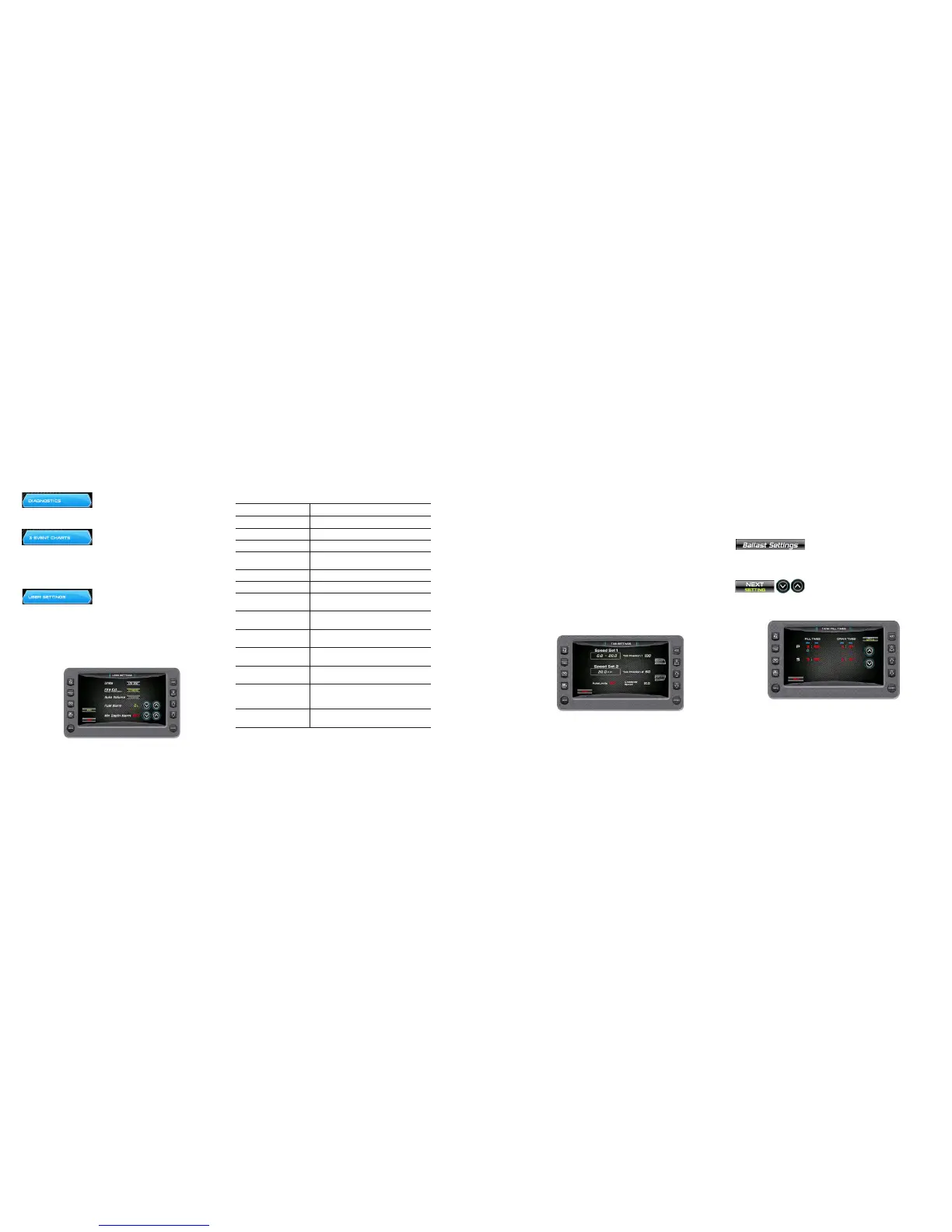

On the User Settings Screen, touch the Tab Settings touch com-
mand to access the Tab Settings screen. The Auto Tab Settings
provide the user with the opportunity to control the tab positions for
two trim tabs on the boat. The following can be controlled through
these settings:
• Two Speed settings
• Trim Tab positions
• Turn Auto Limits ON and OFF
• Set the Auto Launch timing
BALLAST SETTINGS
(TANK FILL/DRAIN TIMES)
In the User Settings Screen, touch the Ballast
Settings key to access the Ballast Settings
screen. This screen provides the ability to
control the ballast fill and drain times.
Touch the Next Setting key to move the Trian-
gle under a setting and touch the arrows to
change the setting.
Diagnostics – Displays Engine, PDM, and
3 Event Diagnostics including a list of fault
codes and descriptions; on some screens,
corrective action will be shown.
3-Event Charts – Displays reference tables
of the Slalom Timing Tolerances and Jump
Timing Tolerances.
USER SETTINGS
On the Settings Menu, touch the User
Settings touch command to access the
first of two user settings screens. Touch
the field following the option to change the
setting. When arrows are available, touch
the option to highlight it and touch the
arrows to change the setting. Touch [Next]
to access the second screen and [Back]
to return.
Description of Options
Touch Commands Description
Units US Standard (US Std) or Metric
Fire Extinguisher Enable (Pop-up) or Disable (Pop-up)
Auto Volume Enable or Disable
Fuel Alarm Sets the percent of fuel left in tank to
deploy the alarm
Min Depth Alarm ON or OFF
Day Brightness Sets the screen brightness for daylight
Night Brightness Sets the screen brightness for night-
time
Gauge Brightness Day Sets the gauge brightness for
daylight
Gauge Brightness
Night
Sets the gauge brightness for night-
time
Tab Settings Page Controls the tab positions for two trim
tabs on the boat. See Tab Settings.
Ballast Settings Controls the ballast fill and drain times.
See Ballast Page Setting.
Connects to GPS YES = There is no Paddle Wheel Oset
field. NO = A Paddle Wheel Oset field is
provided.
Paddle Wheel Oset Sets the paddle wheel oset. (Only
available if GPS is not connected.)
