MasterCraft NXT22 2017 User Manual

2017 OWNERS MANUAL / 304

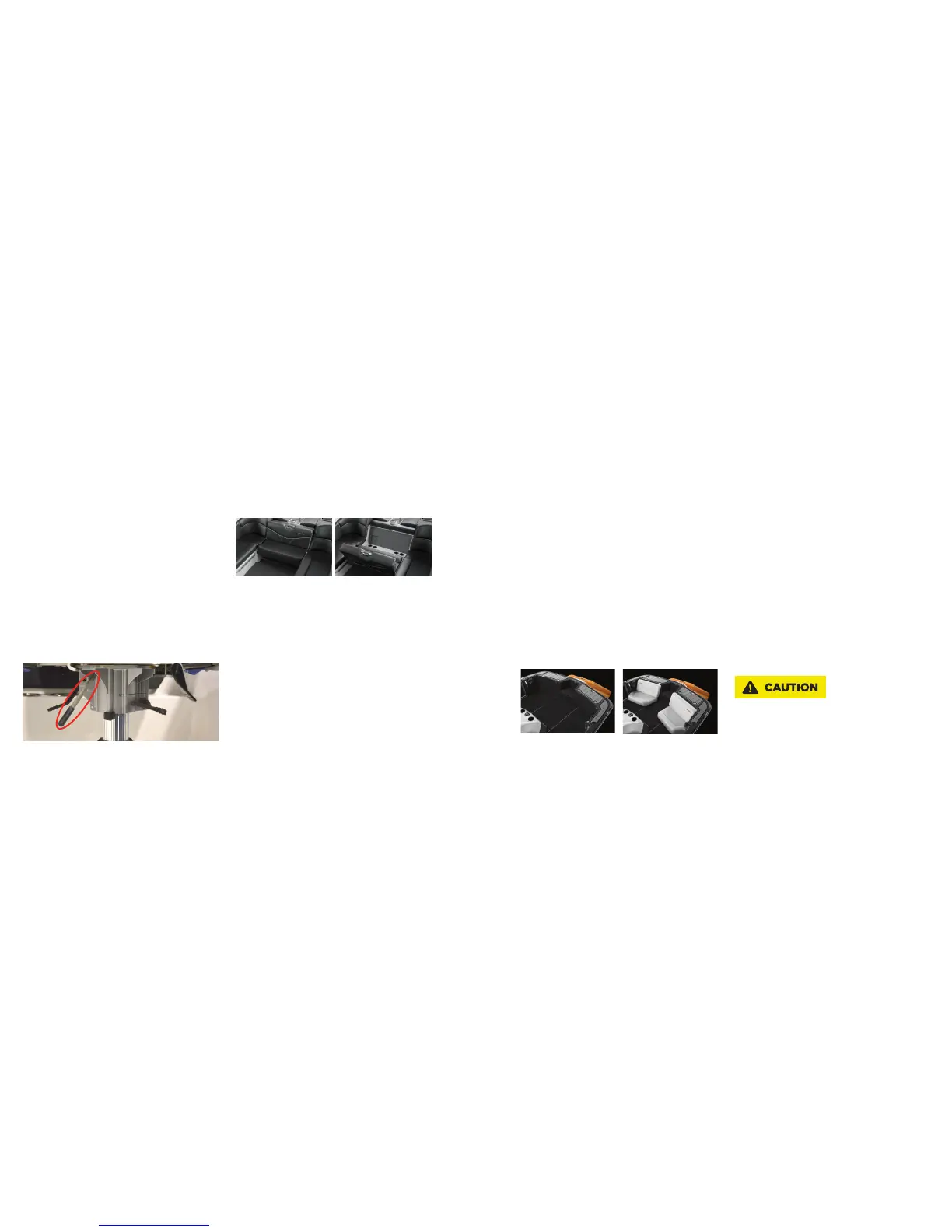

CONVERTIBLE CENTER REAR SEAT
Models
X10, X20, X23, X26, XT23, X46 and XStar, as an option
Purpose
Allow the option of occupants to sit forward facing, rear facing or
create a center cockpit sunpad.
Location
Aft section of the cockpit.
Operation
The seat has a sliding/locking pivot connecting the seat back to the
seat cushion.
Forward to Rear Facing and vice versa: Lift sharply up on the handle
at the top of the seat back to lift o the “Lock” position. Hold the
handle while lifting the seat back up and away from its current
GAS ASSISTED SEAT LIFT
Models
X10, X20, X26, XT23 and XStar, as an option
Purpose
Allow the helm seat to raise and lower ~3” to accommodate dierent
operator seat height preferences.
Location
Helm Seat
Operation
Lift the handle on the seat pedestal located on the outboard side of
the pedestal (circled in red). To raise, lift handle and remove body
weight and the seat will extend up. To lower, lift handle while apply-
ing weight to the seat to compress the gas assisted mechanism
inside. Release handle between the topmost and lowest position to
set and hold the seat height.
Models
ProStar, as an option
Purpose
Two removable rear seats allow additional passengers to be trans
ported in the boat. The seats can be removed when not needed.
Location
Aft section of the cockpit, port and starboard.
Operation
Removal: Lift the forward edge of the seat bottom. Rotate up and
pull forward at the same time. Two hooks on the seat back will re-
lease from eyelets connected to the rear deck wall. When released,
lift seats out of the boat and store.
Installation: Set the seat on the cockpit floor near the aft cockpit
wall. Lift the forward edge of the seat bottom. Slide the seat rear-
ward until the seat back hooks touch the aft cockpit wall just blow
the eyelets. Set the seat bottom down slowly, ensuring that both
seat back hooks pass through an eyelet.
Never operate the boat without the rear seats installed properly.
Seat back hooks firmly captured by the eyelets and all four foot
pads sitting on the cockpit floor.
position. The seat cushion will then lift and rotate. Continue pulling
forward until the seat cushion rotates past vertical. Then lower the
handle and press the seat back down toward the cockpit floor as the
seat cushion comes to rest 180 degrees from its previous position.
This will reengage the seat back “Lock”
Rear Facing to Sunpad: When the seat is in the rear facing position,
lift sharply up on the handle at the top of the seat back to lift o the
“Lock” position. Hold the handle while rotating the seat back toward
the bow of the boat. The seat back will rotate and lay down on braces
in the cockpit to create a full sunpad.
Sunpad to Rear Facing: Lift and rotate the handle on the seat back.
When the seat back is vertical, press the seat back down toward the
cockpit floor as the seat cushion comes to rest 180 degrees from its
previous position. This will reengage the seat back “Lock”.
REMOVABLE REAR SEATS
