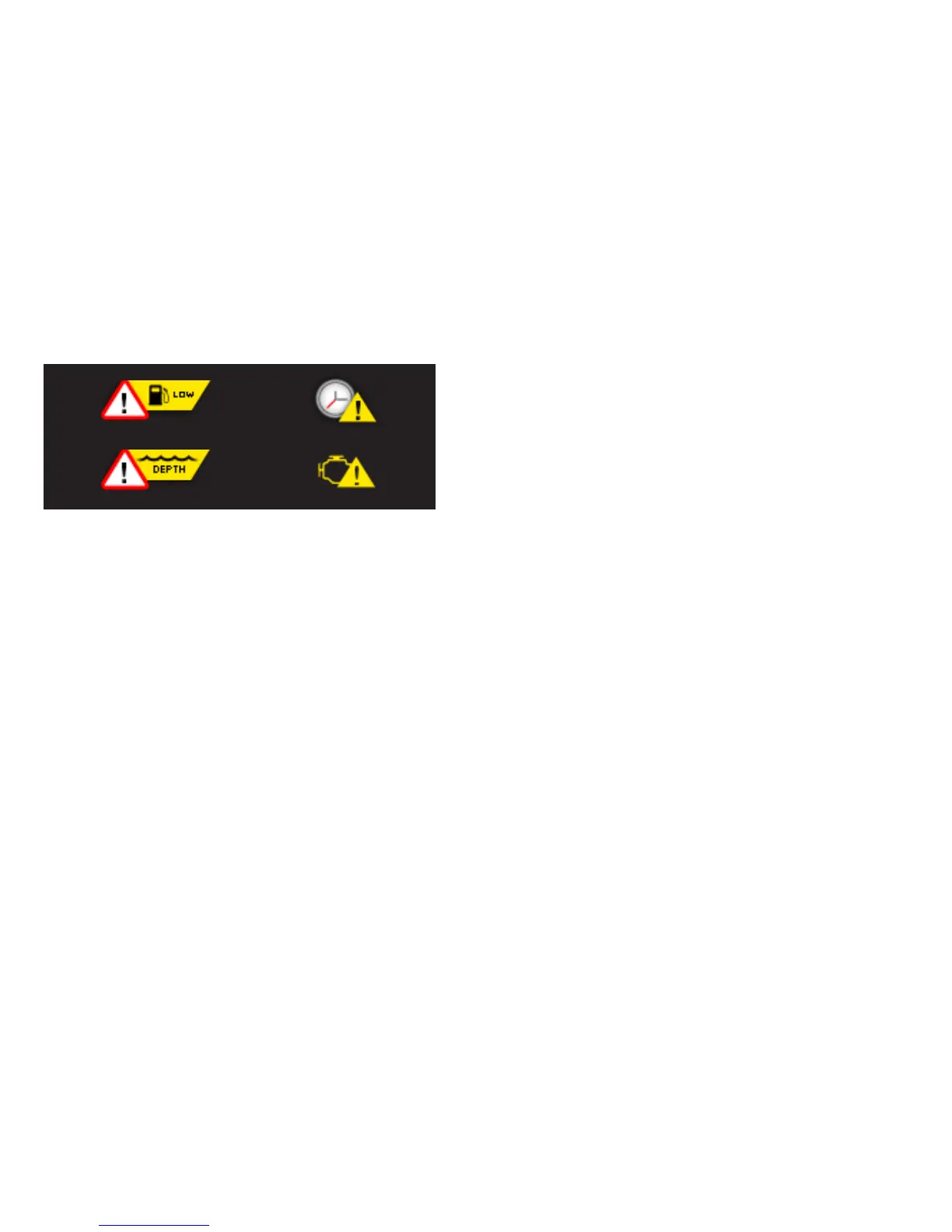

A = Low Fuel
The fuel in the tank is low and has reached the selected alarm level.
Action: Refuel the vessel
B = Low Water Depth
The seawater level is shallow and has reached the selected alarm
level. Shallow seawater may cause harm to vessel or vessel may
bottom-out preventing safe passage.
Action: Move the vessel to deeper seawater.
C = Engine Service
Time for a scheduled engine maintenance or engine oil change. See
Service Information for details.
Action: See your local dealer.
D = Engine Faults
An engine fault code is present. See Engine Diagnostics for details.
Action: See your authorized MasterCraft dealer for assistance.
SCREEN FEATURES
Home
The Home screen can be accessed by pressing the Display Key
under HOME in the Menu Bar or press the middle Display Key two
times.
NOTE: The display in this document is set to US Standard Units.
You may change it to Metric on the User Settings screen.
Home Screen Features:
• Fuel Tank Level
• MPH/KPH – Vessel Speed
• RPM – Engine Speed (Revolutions Per Minute)
• Cruise ON or OFF
• Water Depth (FT/M) (Optional)
To navigate to another screen, press the Display Key under an
action in the Menu Bar.
NOTE: The Water Depth is an option that can be chosen on the
Factory Settings Screen. If the option is selected as NO, it is
not displayed. A Dealer Code is required to access the Factory
Setting screen.
A. C.
B. D.
