Matrix A5x-02 User Manual

25
8.2 FRONT SHROUD REMOVAL
CHAPTER 8: PART REPLACEMENT GUIDE
1) Remove the front disks as outlined in Section 9.1.

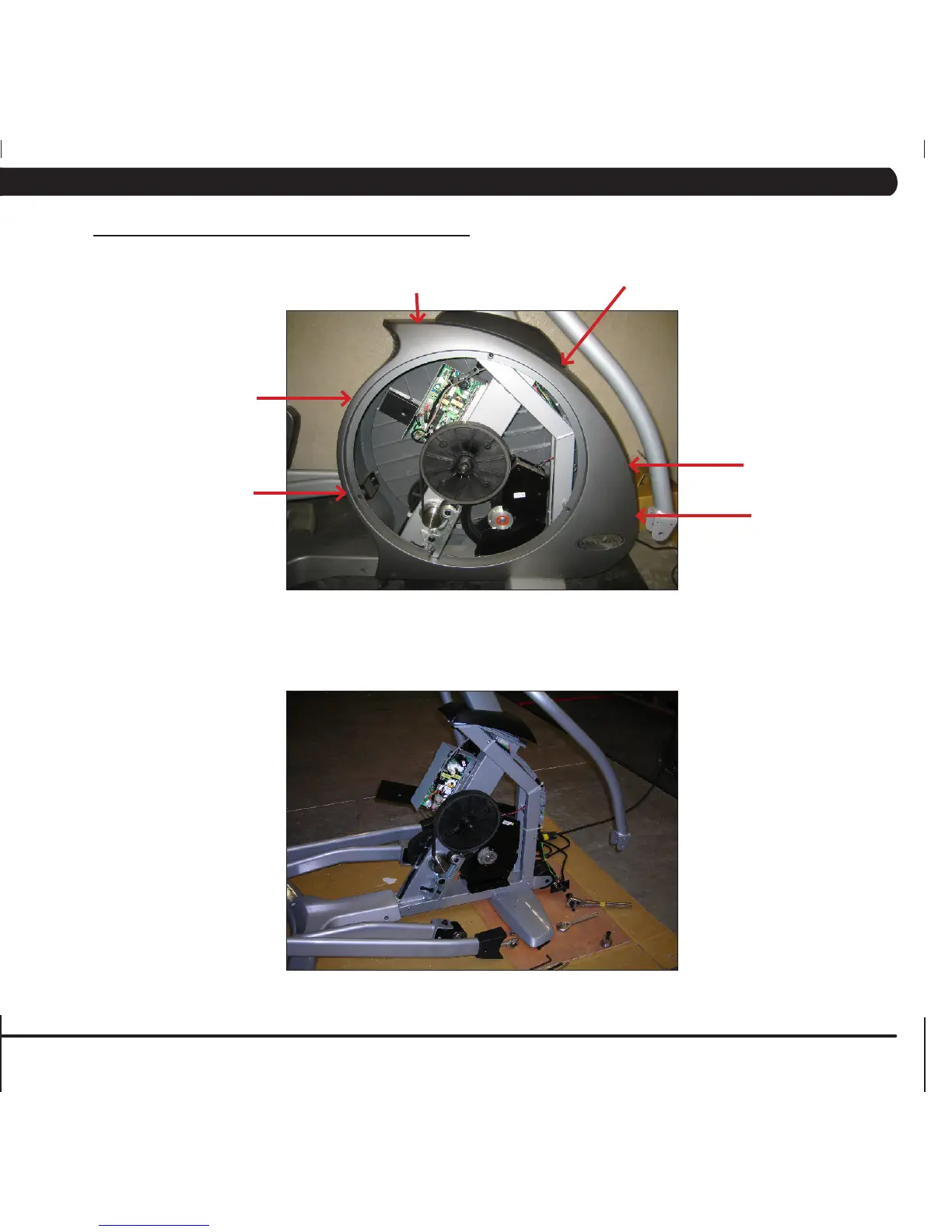

2) Remove the 6 screws that hold the front shrouds in place on each side (Figure A).
3) Remove the front shrouds for frame access (Figure B).
FIGURE A
FIGURE B
