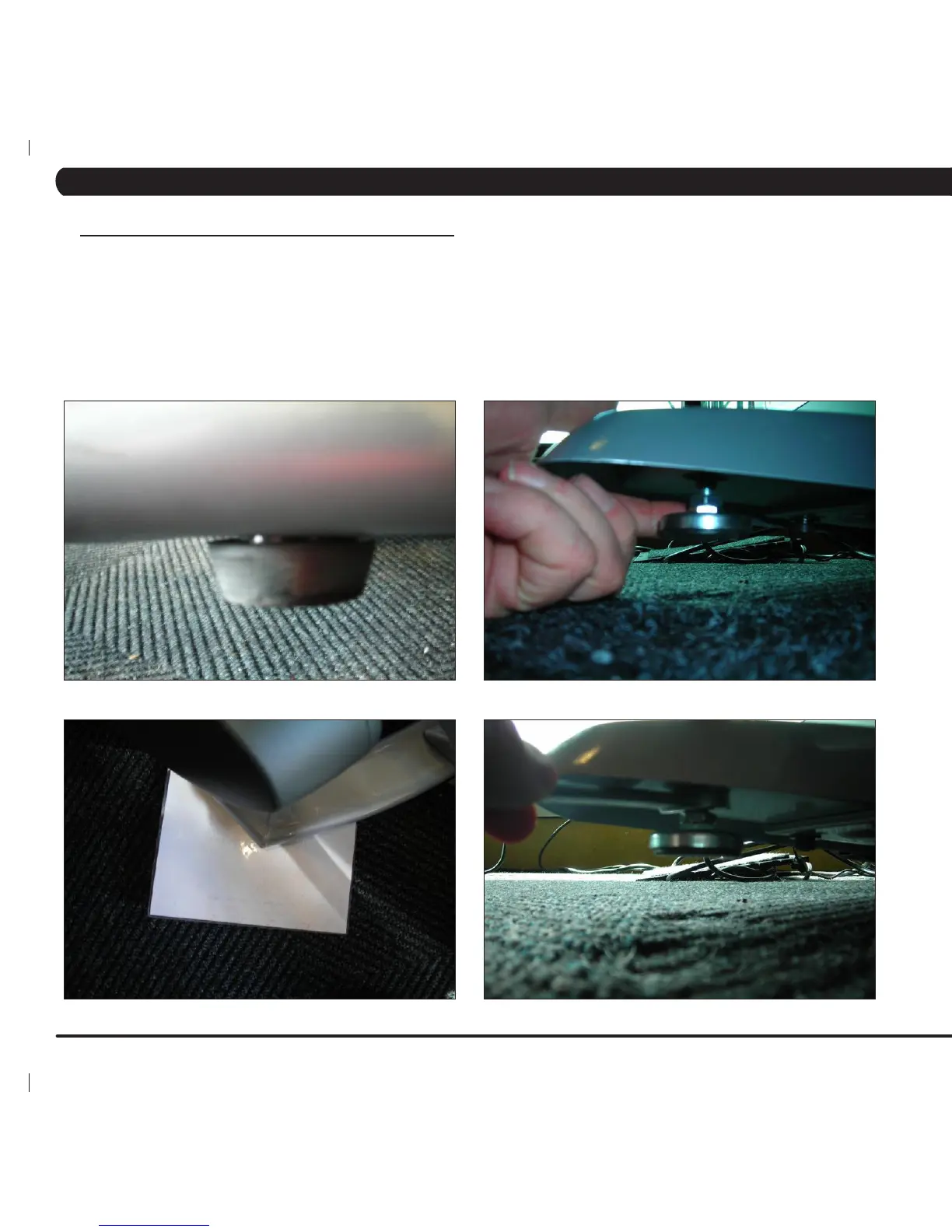

On a new Ascent Trainer, the rubber foot on the underside of the center of the frame should be flush against the frame itself. The rubber foot
has a washer that eliminates pressure against the nut that is inside the frame. This rubber foot needs to be screwed in all the way (Figure A),
and is not used for adjustments.
All stability adjustments are made using the front stabilizer leveling feet (Figure B). Most of the time you will be raising the front of the machine
instead of lowering it. Raise the front of the unit until you can fit a piece of paper underneath the rubber foot on the center of the frame (Figure
C). Once you have both feet set to a level position, use a 14mm or 17mm wrench (depending on which stabilizing feet you have) to tighten the
jam nut and secure the feet (Figure D).
stabiliZinG tHe matriX a5X-02 ascent trainer
9.4 STABILIZING THE ASCENT TRAINER
FIGURE A FIGURE B
FIGURE C
FIGURE D
