8.15 FOOT PEDALS REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE

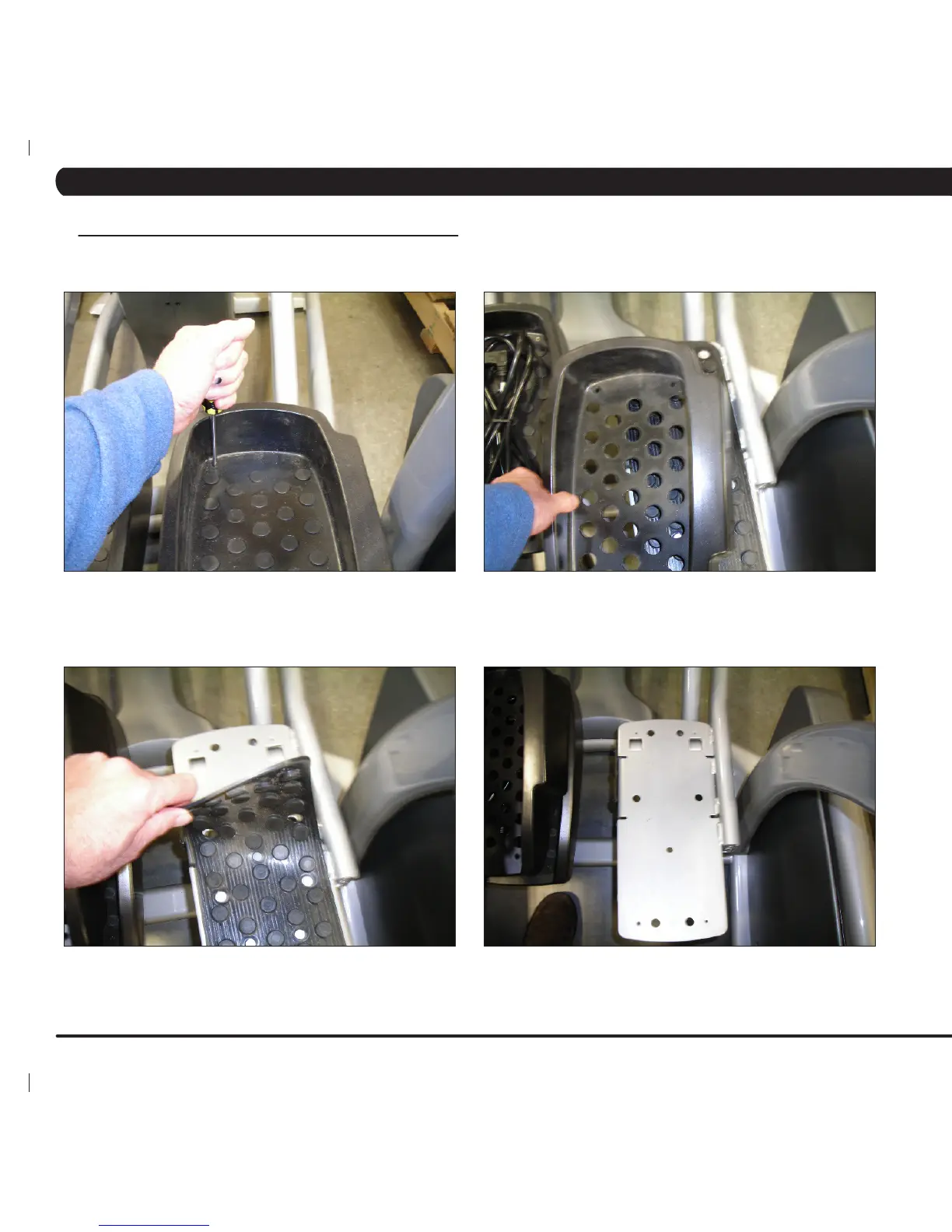

1) Remove the 4 Phillips screws that hold the plastic foot pedal to the foot plate (Figure A).
2) Remove the plastic foot pedal (Figure B).
3) Remove the rubber grip (Figure C).
4) Clean the foot plate to remove any rubber or debris (Figure D).
5) Reverse Steps 1-4 to install a new foot pedal.
6) Test the Ascent Trainer as outlined in Section 9.19.
FIGURE A FIGURE B
FIGURE C FIGURE D
