©2004 Maytag Services 16023432 Rev. 0 13
Troubleshooting Procedures
! WARNING
To avoid risk of electrical shock, personal injury or death, disconnect power to unit before servicing, unless testing
requires power.

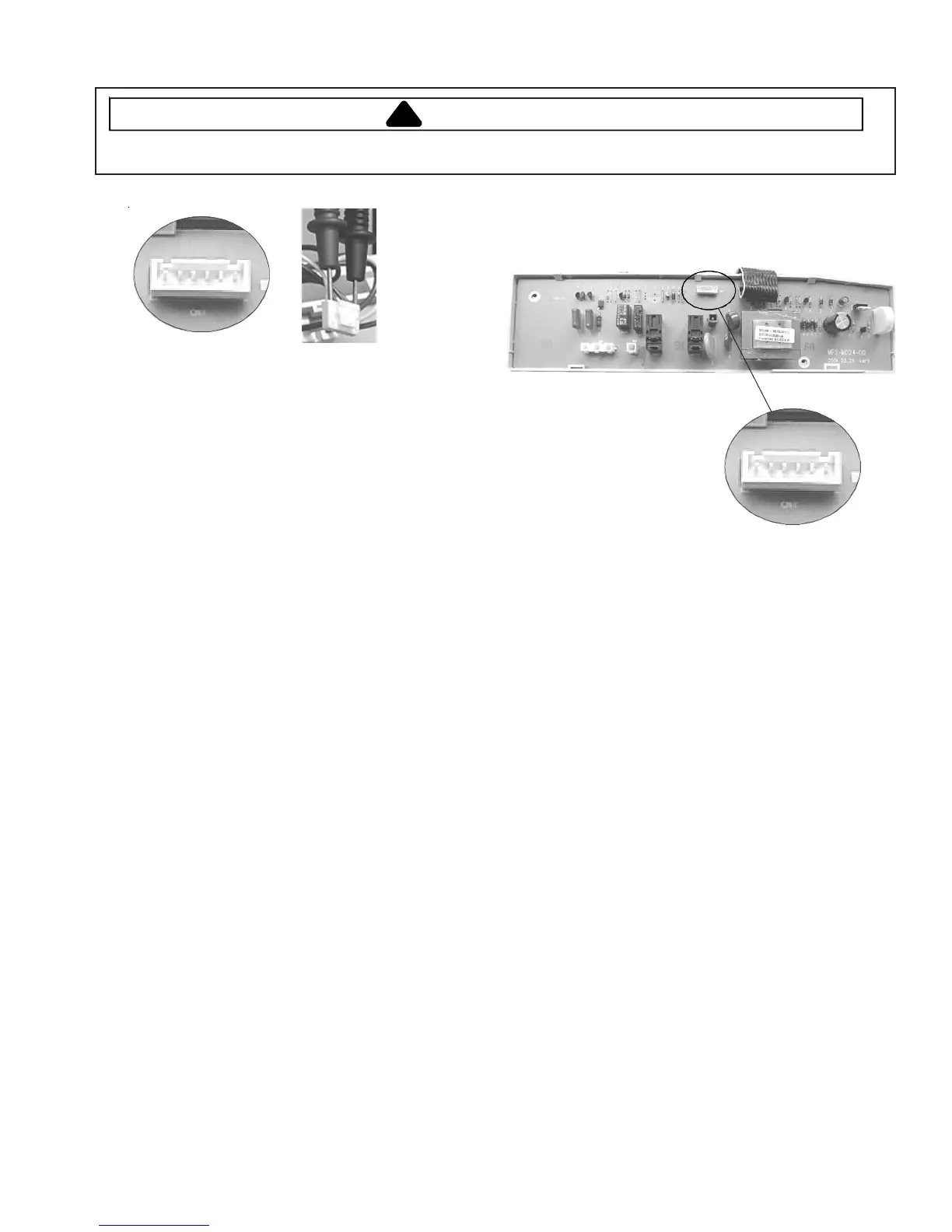

Thermistor check.
Remove plug and test from Red wire Pin 1 to White wire
Pin 6. Approx 60K ohms @ room temp.
CN1
6 5 4 3 2 1
Door Switch check.
Disconnect harness and test Blue wire Pin 2 to Blue
Wire Pin 4. Less than 1ohm
CN1
6 5 4 3 2 1
To Next Page
