Maytag MDE2400AY Series User Manual

22 16023432 Rev. 0 ©2004 Maytag Services
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

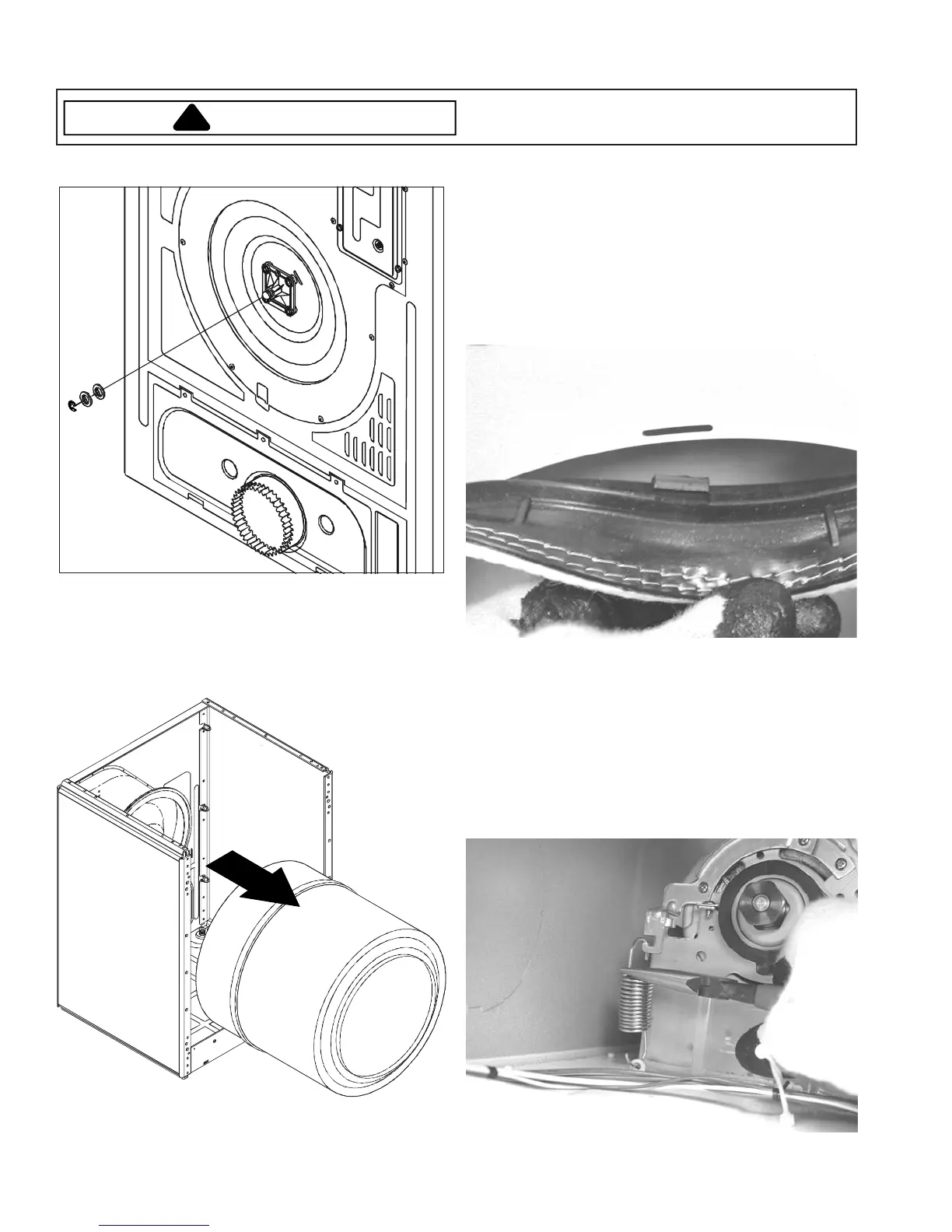

Disassembly Procedures
WARNING
!
11.Slide Retainer Ring and washers from drum shaft.
12.Lift drum from dryer cabinet.
Rear Seal Removal
1. Disconnect power supply to unit.
2. Remove dryer Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove Rear Panel.
6. Remove Belt.
7. Remove Drum.
8. Pull Rear Seal away from dryer back.
Motor/Blower Removal
1. Disconnect power supply to unit.
2. Remove dryer Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove Rear Panel.
6. Remove Belt.
7. Remove Drum.
8. Release Tension spring from Motor Assembly.
