To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!
5. Lift Circuit Board from Console housing.

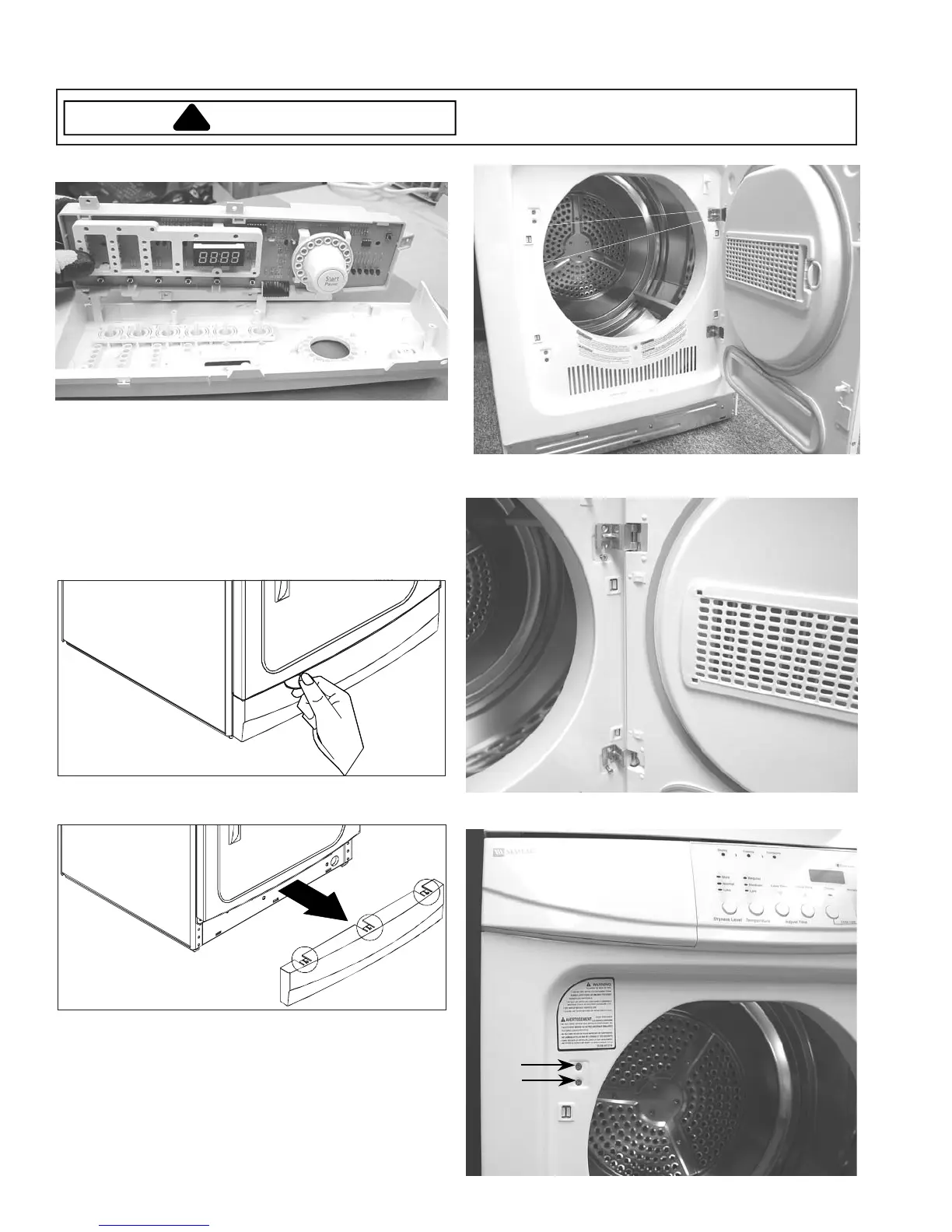

Front Panel/Door/Door Switch/Drum Glide
Removal
1. Disconnect power supply to unit.
2. Remove the dryer Top Cover.
3. Remove Console.
4. Remove the Toe Panel. Using a plastic Putty Knife or
large coin, disengage the latches located
approximately 2” in on both sides and in the center.
5. Remove 1 upper screw attaching the Door Hinge to
the Front Panel. Loosen but do not remove the 1
lower screw attaching the Door Hinge to the Front
Panel. Repeat this step for the lower hinge.
Remove
Loosen
6. Lift and remove door. Remove remaining hinge
screws.
7. Do not remove the 2 upper screws, opposite the
hinge side
To Next Page
