©2004 Maytag Services 16023432 Rev. 0 17
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

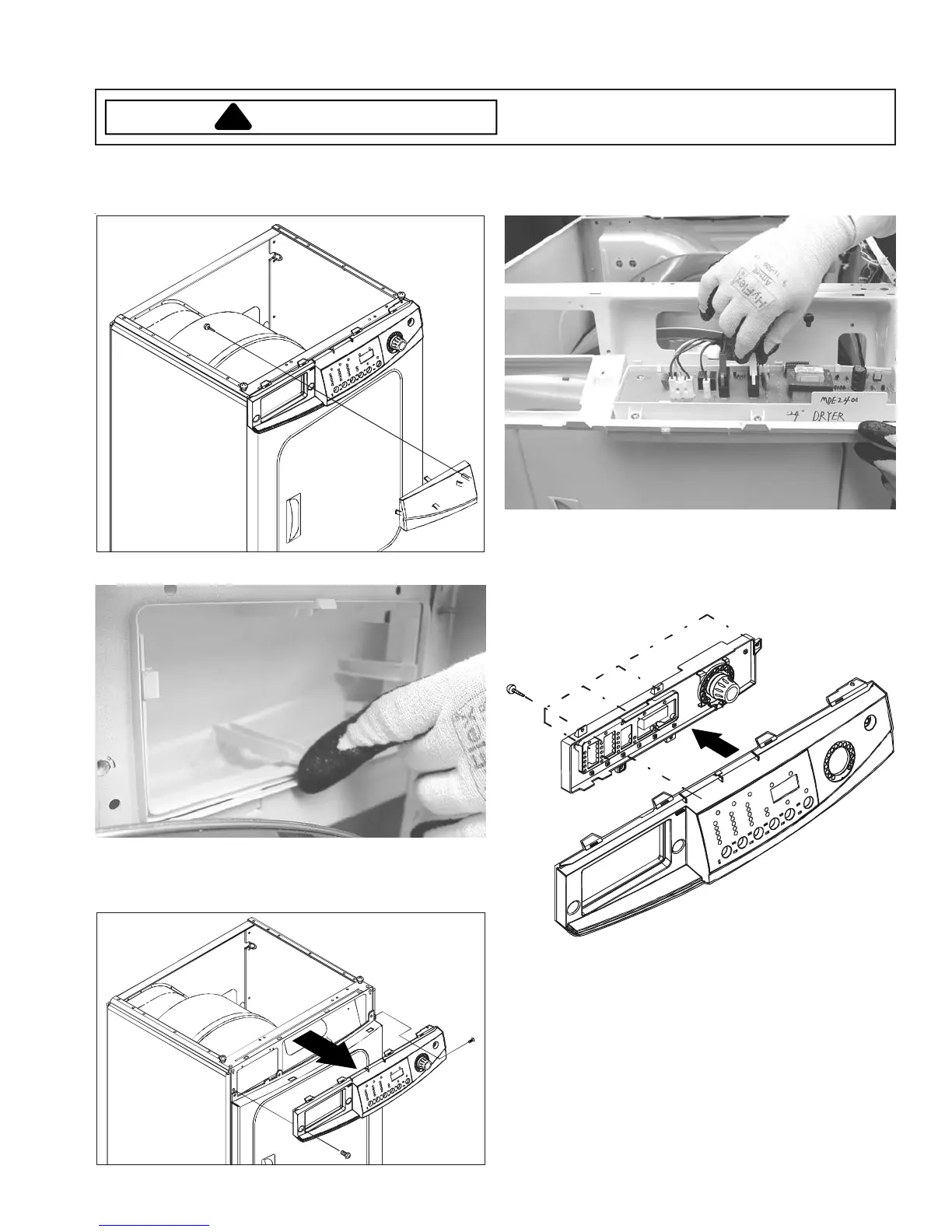

Disassembly Procedures
WARNING
!
5. Unlatch the Console Blank.
6. Remove screw on front face and right side of
Console.
7. Roll Console forward to access wiring on circuit
board.
4. Remove screw inside the dryer attaching the Console
to the cabinet.
Circuit Board Removal
1. Disconnect power supply to unit.
2. Remove the dryer top.
3. Remove Console.
4. Remove 5 screws retaining the Circuit Board.
To Next Page
