To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!
9. Slide belt forward along drum to the front of the dryer
and remove.

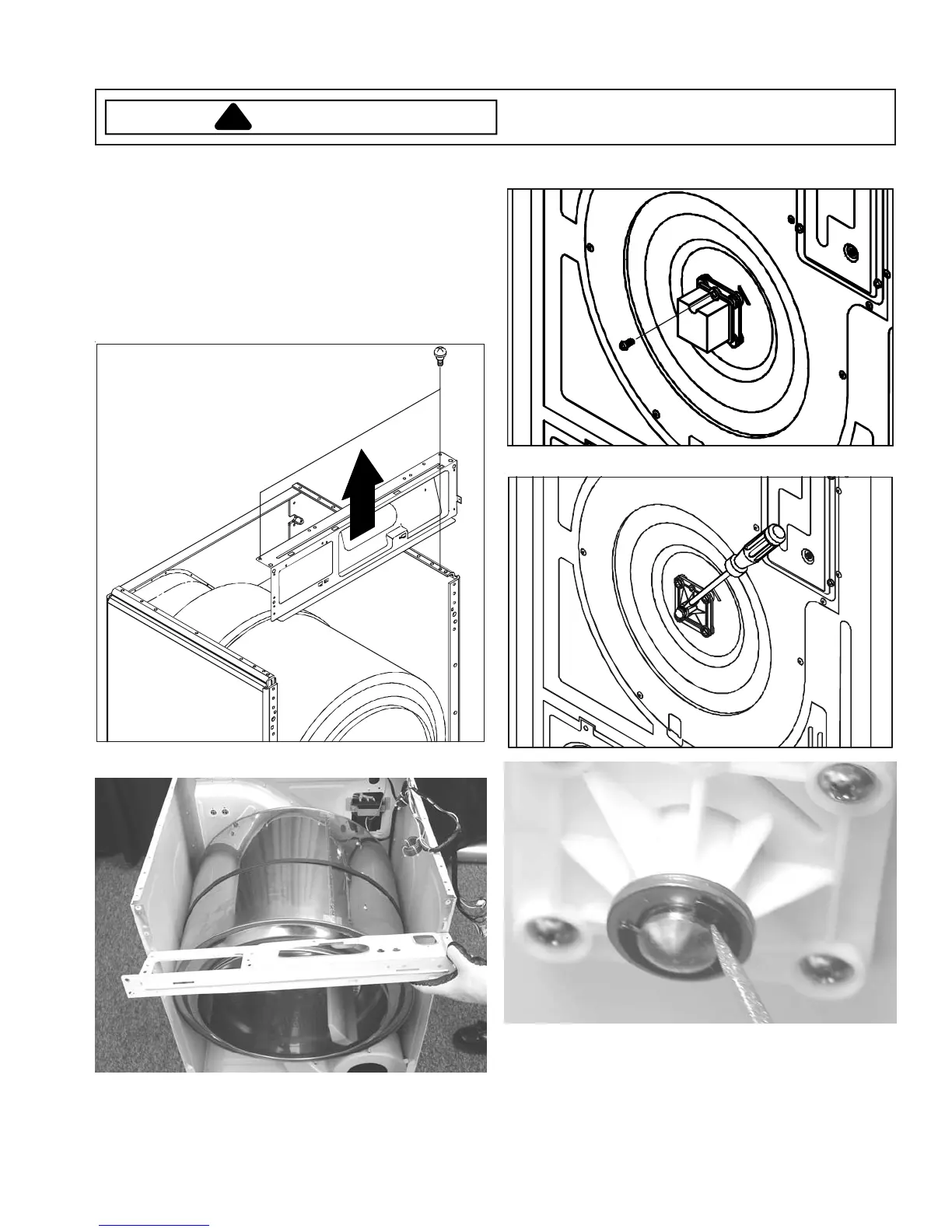

Drum Removal
1. Disconnect power supply to unit.
2. Remove dryer Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove Rear Panel.
6. Remove Belt.
7. Remove 4 screws retaining Front Cross Brace.
8. Lift Front Cross Brace from dyer.
9. Remove 1 screw retaining the Bearing Dust Cap to
the cabinet back.
10.Remove Retainer Ring on drum shaft.
