Maytag MDE2400AY Series User Manual

©2004 Maytag Services 16023432 Rev. 0 15
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

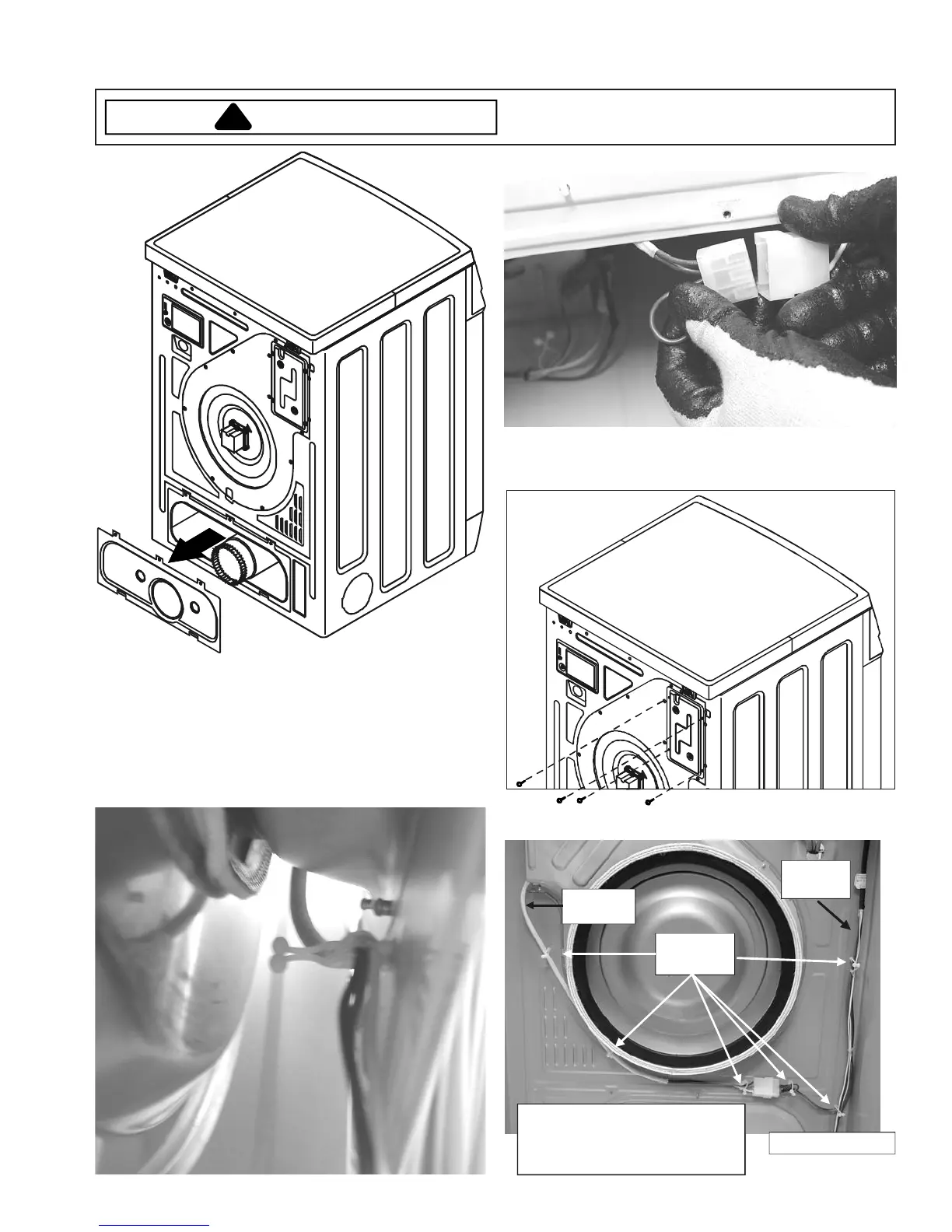

Disassembly Procedures
WARNING
!
3. Pull Vent Tube from the exhaust port on the blower
outlet duct.
Heater Removal
1. Disconnect power supply to unit.
2. Remove Back Cover.
3. Slip Heater Harness from wire tie on the dryer back.
5. Remove 4 screws and Heater Assembly from dryer
back.
Wiring Configuration
4. Disconnect Heater Harness plug.
Main
Harness
Heater
Harness
Motor Harness
Retaining
C lips
View of the rear of the dryer cabinet
with drum removed showing proper
wire harness routing and location of
retaining clips.
Main
Harness
Heater
Harness
Motor Harness
Retaining
C lips
View of the rear of the dryer cabinet
with drum removed showing proper
wire harness routing and location of
retaining clips.
