144
Controls in detail
Loading

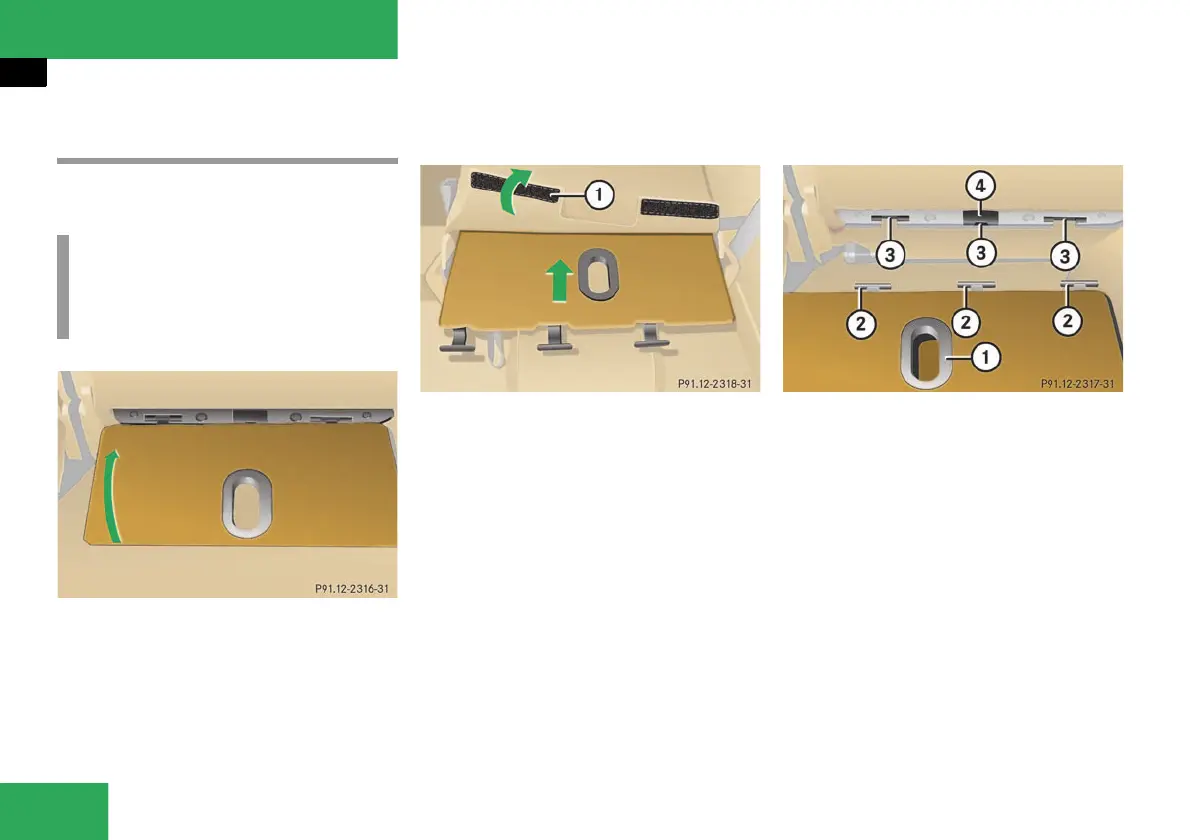

Cargo floor plates
Removing cargo floor plates
왘 Lift cargo floor plate at rear edge (ar-
row).
Cargo floor plate unhinges automati-
cally.
왘 Remove cargo floor plate by pulling it
rearwards.
Storing cargo floor plates
1 Hook and loop strip
왘 Fold the left cargo floor plate together.
왘 Open the hook and loop strip at the
bottom of backrest of the third row
seats* and insert cargo floor plate.
왘 Close the hook and loop strip.
Installing cargo floor plates
1 Opening
2 Pins
3 Attachment opening
4 Latch
왘 Grip into opening 1 and guide pins 2
into attachment opening 3.
The center pin must snap into place in
latch 4.
i
Before you can remove the cargo floor
plates, it is possible that the third row
seats* (
컄 page 96) must be removed.
