277

Technical data

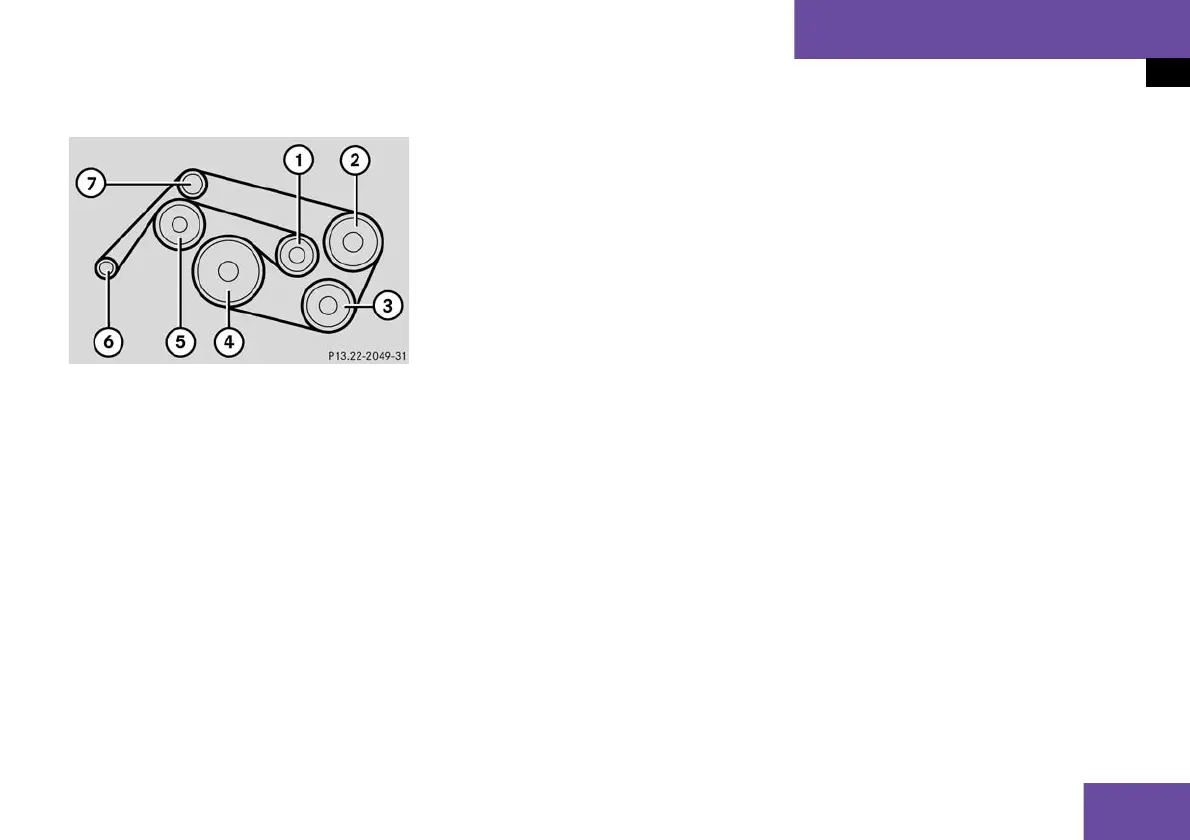

Layout of poly-V-belt drive

1 Automatic belt tensioner

2 Power steering pump

3 Air conditioning compressor

4 Crankshaft

5 Coolant pump

6 Generator/Alternator

7 Idler pully
