R
a telescopic rod
R
two mounting elements
R
two retaining feet

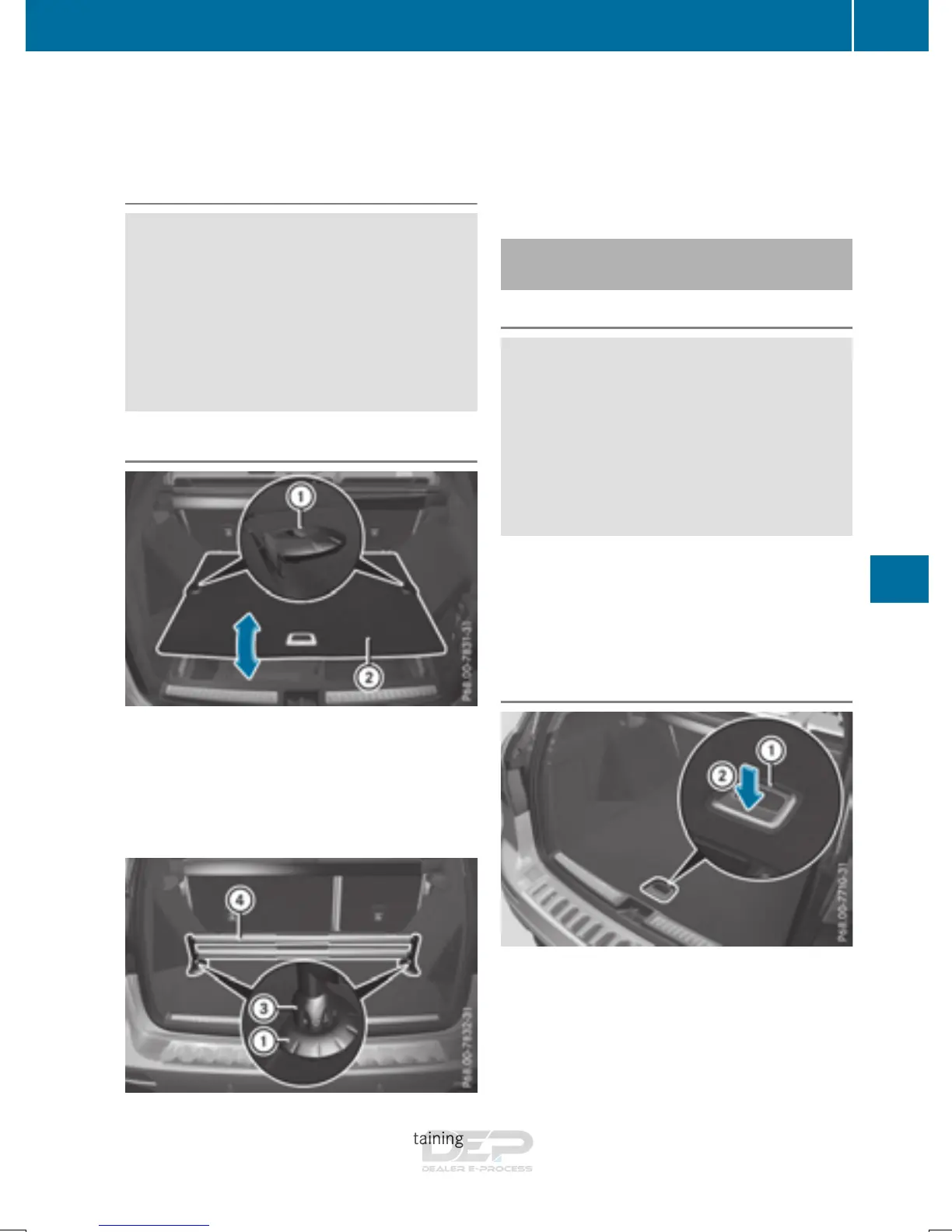

Important safety notes
G
WARNING
If you drive when the cargo compartment floor
is open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey.
Installation
X
Open cargo compartment floor ;
(
Y page 337).
X
Attach retaining feet : in the desired posi-
tion on the side of cargo compartment
floor ;.
X
Close cargo compartment floor ;.
X
Turn mounting elements = to =.
X
Insert mounting elements = into retaining
feet :.
X
Pull telescopic rod ? apart.
X
Insert telescopic rod ? into mounting ele-
ments =.
X
Turn both mounting elements = to & until
you feel them engage.
Stowage well under the cargo com-
partment floor
Important safety notes
G
WARNING
If you drive when the cargo compartment floor
is open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey.
A removable insert under the cargo compart-
ment floor contains the parts of the EASY-PACK
load-securing kit. The tire-change tool kit is
stored beneath this insert.
Opening/closing the cargo compart-
ment floor
X
To open: holding the ribbing, press handle :
down ;.
Handle : folds up.
X
Swing the cargo compartment floor upwards
using handle : until it rests against the cargo
compartment cover.
Stowage areas
337
Stowage and features
Z
