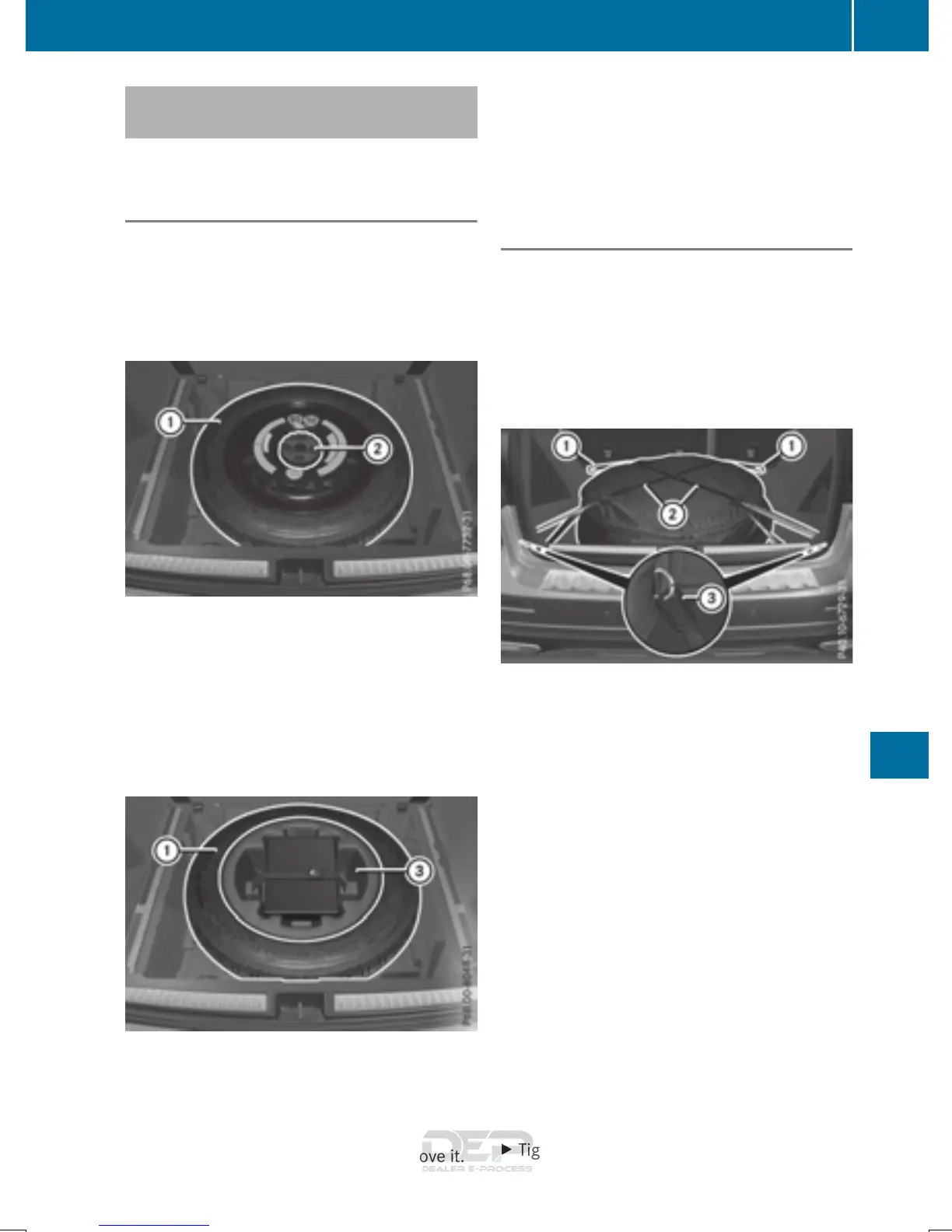

Removing/stowing the emergency
spare wheel
Vehicles with a "Minispare" emergency
spare wheel under the cargo compart-
ment floor
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Y page 409).
The "Minispare" emergency spare wheel can be
found in the stowage well under the cargo com-
partment floor.
Removing the emergency spare wheel
X
Lift the cargo compartment floor upwards
(
Y page 337).
X
Vehicle without a lockable cargo compart-
ment floor: turn emergency spare wheel
retainer ; counter-clockwise and remove it.
X
Remove "Minispare" emergency spare
wheel :.
X
Vehicle with a lockable cargo compart-
ment floor: remove the contents of stowage
tray =.
X
Turn the central retaining screw in stowage
tray = and in "Minispare" emergency spare
wheel : counter-clockwise and remove it.
X
Remove stowage well =.
X
Remove "Minispare" emergency spare
wheel :.
Vehicles with a "Minispare" emergency
spare wheel in the emergency spare
wheel bag
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Y page 409).
On vehicles with a Bang & Olufsen sound sys-
tem, the "Minispare" emergency spare wheel is
packed in an emergency spare wheel bag. The
emergency spare wheel bag is secured to the
cargo tie-down rings in the cargo compartment.
Removing the emergency spare wheel
X
Detach the fastening straps ;.
X
Unhook retaining spring hooks : and = of
fastening straps ; from the cargo tie-down
rings.
X
Remove the emergency spare wheel bag with
the "Minispare" emergency spare wheel.
X
Open the emergency spare wheel bag and
remove the "Minispare" emergency spare
wheel.
Stowing the emergency spare wheel
X
Place the "Minispare" emergency spare wheel
into the emergency spare wheel bag and
close the emergency spare wheel bag.
X
Place the emergency spare wheel bag with
the "Minispare" emergency spare wheel into
the cargo compartment with the carrying
strap at the back.
X
Hook retaining spring hooks : and = of
fastening straps ; into the cargo tie-down
rings.
X
Tighten fastening straps ;.
Emergency spare wheel
427
Wheels and tires
