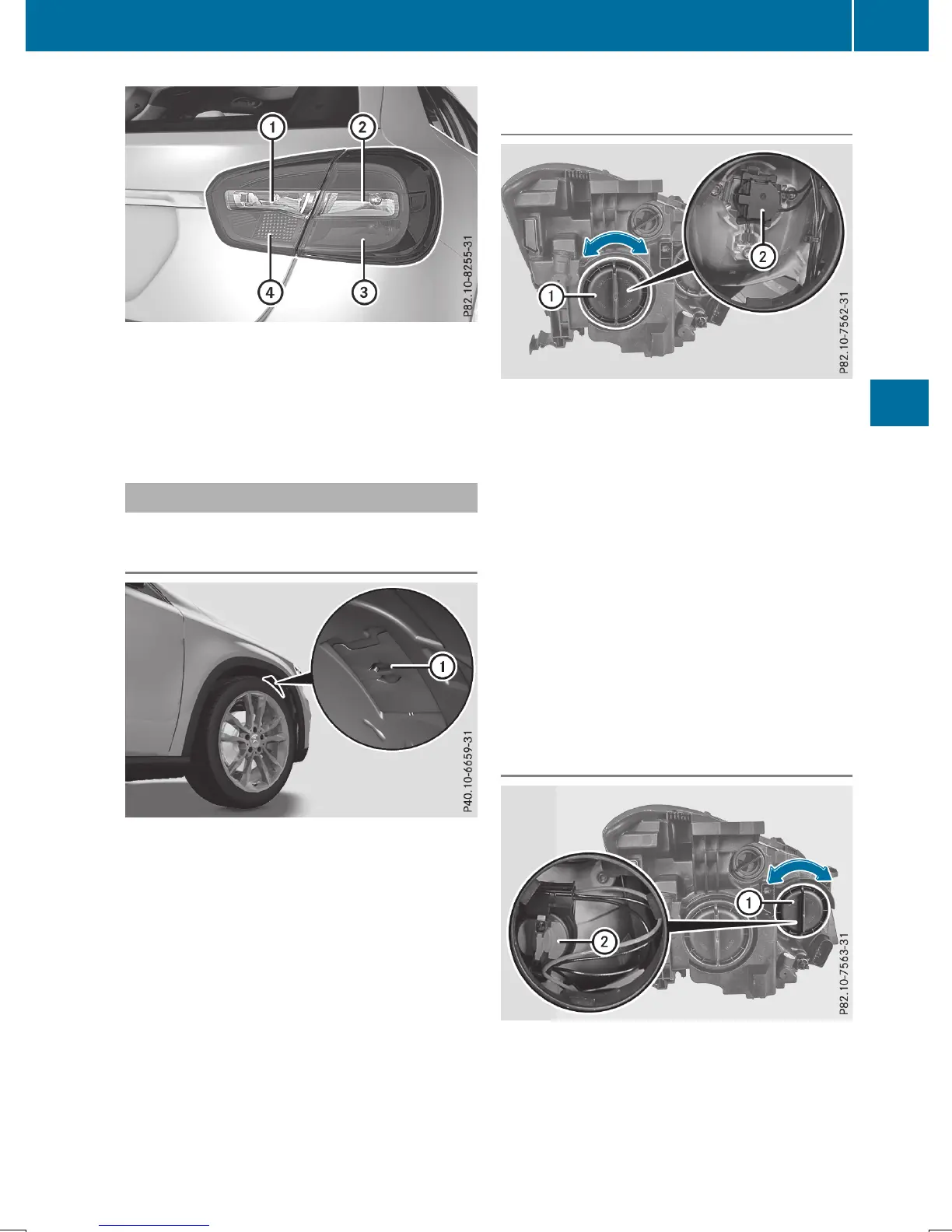

Tail lamps (vehicles with halogen headlamps)
:
Backup lamp: W 16 W
;
Turn signal lamp: PY 21 W
=
Brake lamp: W 16 W
?
Rear fog lamp: H 21 W
Replacing front bulbs
Removing and installing the cover in
the front wheel housing
You must remove the cover of the front wheel
housing before you can change the front turn
signal lamp.
X
To remove: switch off the lights.
X
Turn the front wheels inwards.
X
Slide cover : up and remove it.
X
To install: insert cover : again and slide it
down until it engages.
Low-beam headlamps (halogen head-
lamps)
X
Remove the cover in the front wheel hous-
ing (Y page 107).
X
Turn housing cover : counter-clockwise
and remove it.
X
Turn bulb holder ; counter-clockwise and
pull out.
X
Pull the bulb out of bulb holder ;.
X
Insert the new bulb into bulb holder ;.
X
Insert bulb holder ; and turn it clockwise.
X
Press on housing cover : and turn it to the
right.
X
Replace the cover in the front wheel housing
(Y page 107).
High-beam headlamps/daytime run-
ning lamps/parking lamps and stand-
ing lamps (halogen headlamps)
X
Switch off the lights.
X
Open the hood.
X
Turn housing cover : counter-clockwise
and remove it.
X
Turn bulb holder ; counter-clockwise and
pull out.
Replacing bulbs
107
Lights and windshield wipers
