The fuse allocation chart is on the fuse box in
the front-passenger footwell (Y page 302).

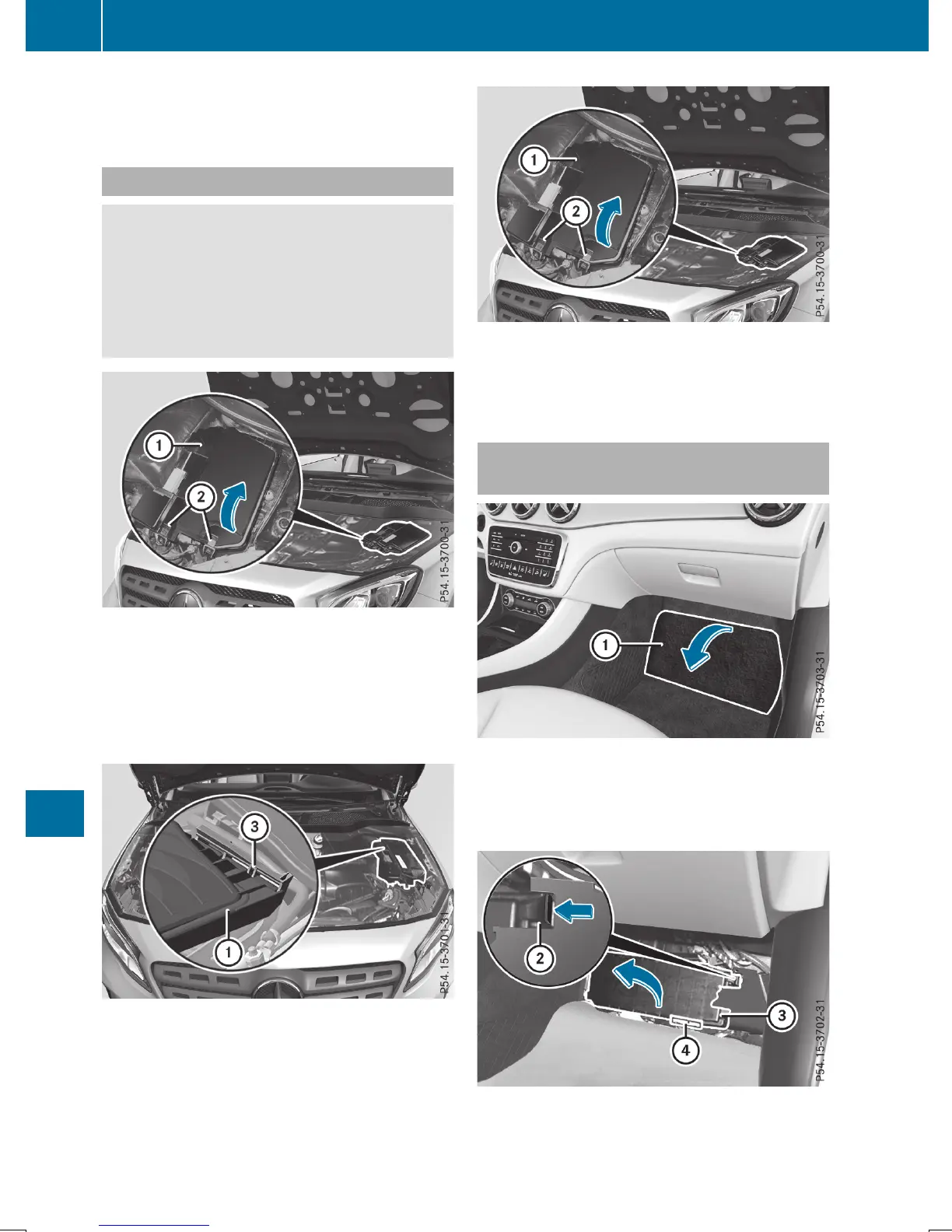

Fuse box in the engine compartment
G
WARNING
When the hood is open and the windshield
wipers are set in motion, you can be injured
by the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
X
Open the hood.
X
Use a dry cloth to remove any moisture
from the fuse box.
X
To open: open clamps ;.
X
Fold up cover : in the direction of the
arrow and remove it.
X
To close: check whether the seal is lying
correctly in cover :.
X
Insert cover : at the back into openings =
on the fuse box.
X
Fold down cover :.
X
Hook clamps ; into the fuse box and
close.
X
Close the hood.
Fuse box in the front-passenger foot-
well
X
To open: open the front-passenger door.
X
Remove the floormat.
X
Fold out perforated floor covering : in the
direction of the arrow.
