A
Yellow guide line at a distance of approx-
imately 3 ft (1.0 m) from the rear of the
vehicle
B
Vehicle center axle (marker assistance)
C
Bumper
D
Red guide line at a distance of approx-
imately 12 in (0.30 m) from the rear of the
vehicle
:
Front warning display
;
Additional measurement operational readi-
ness indicator for Parking Assist
PARKTRONIC
=
Rear warning display
When Parking Assist PARKTRONIC is opera-
tional (Y page 173), additional measurement
operational readiness indicator ; appears in
the multimedia system display. If the Parking
Assist PARKTRONIC warning displays are
active or light up, warning displays : and =
are also active or light up correspondingly in
the multimedia system display.

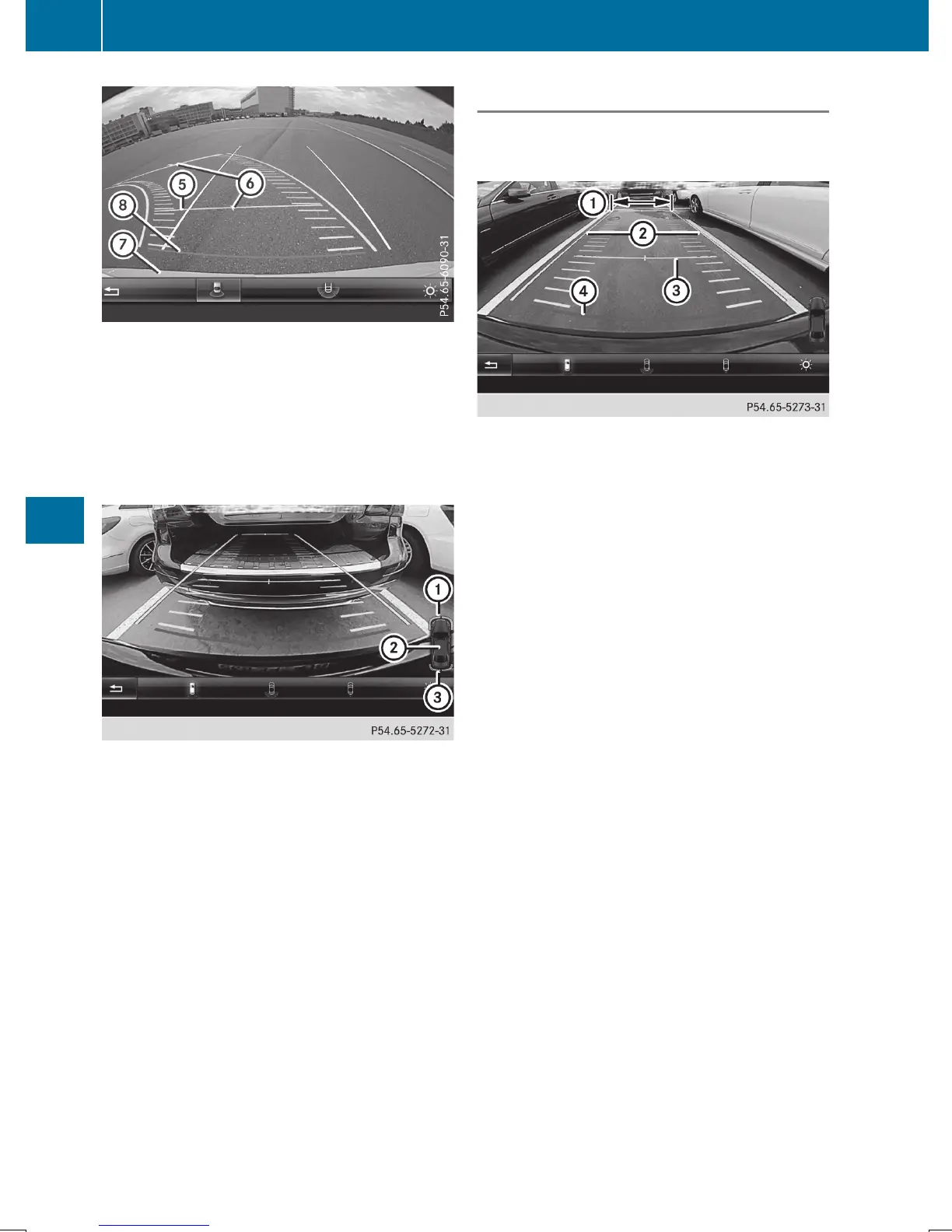

"Reverse parking" function
Backing up straight into a parking space
without steering input
:
White guide line without steering input –
vehicle width including the exterior mirrors
(static)
;
Yellow guide line for the vehicle width
including the exterior mirrors, at the cur-
rent steering wheel angle (dynamic)
=
Yellow guide line at a distance of approx-
imately 3 ft (1.0 m) from the rear area
?
Red guide line at a distance of approx-
imately 12 in (0.30 m) from the rear area
X
Make sure that the rear view camera is
switched on (Y page 179).
The lane and the guide lines are shown.
X
With the help of white guide line :, check
whether the vehicle will fit into the parking
space.
X
Using white guide line : as a guide, care-
fully back up until you reach the end posi-
tion.
Red guide line ? is then at the end of the
parking space. The vehicle is almost parallel
in the parking space.
180
Driving systems
Driving and parking
