MAINTENANCE
SECTION 5
Page 74 CMD-3967823 / 90-865237030 OCTOBER 2003
Filling
A plunger-type of hand pump/primer is located on the fuel filter bracket and is used to:
• Refill fuel filter when changing filter
• Refill fuel system if system was run dry
• To prime the fuel system if engine has not been operated for a while.
To operate the hand pump/primer, move the plunger (upper portion) up and down as
needed.

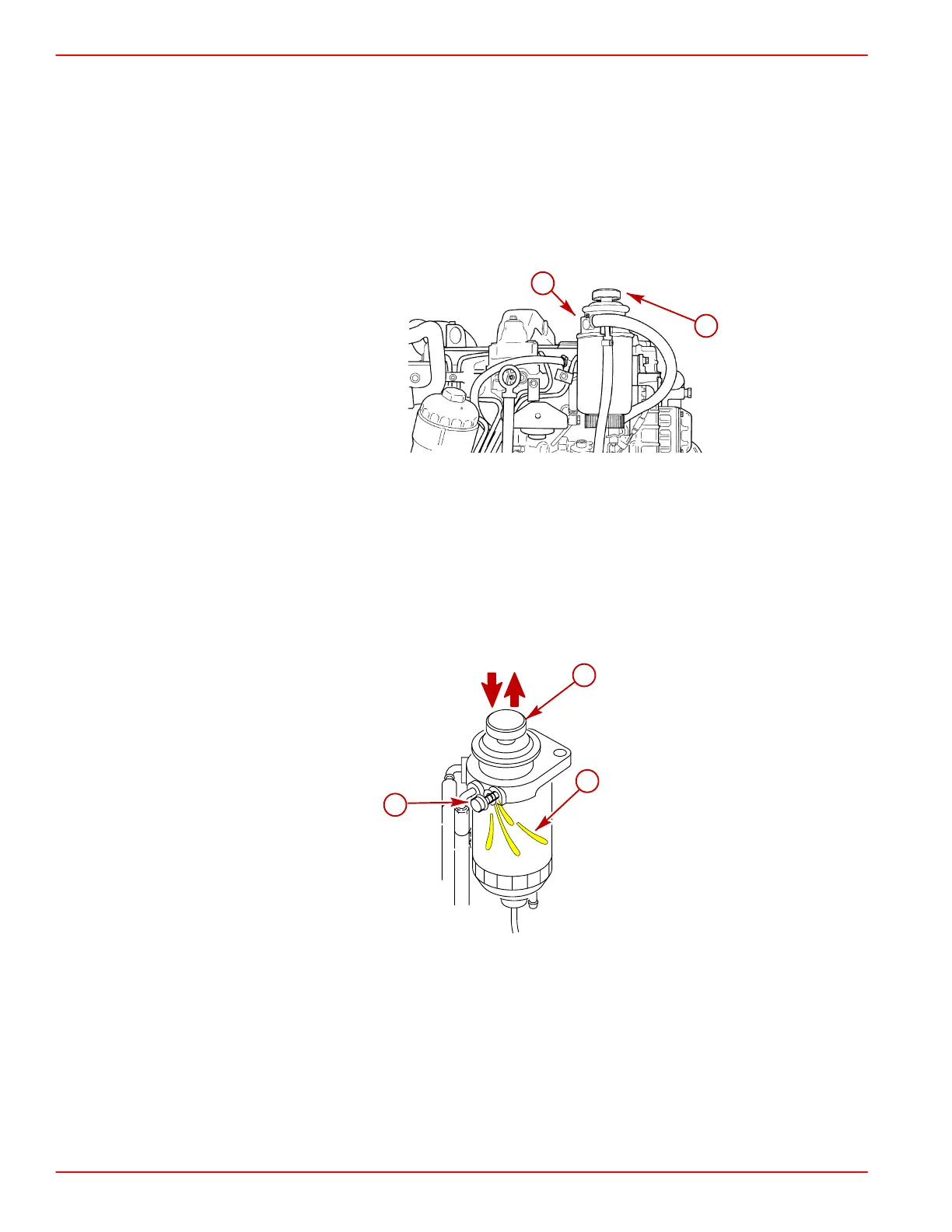

77343
b
a
a-Fuel filter bracket
b-Hand pump / primer
NOTE: Follow this procedure after installing new filter or if fuel has been drained from filter
checking for water.
1. Loosen the bleed screw on fuel filter bracket.
2. Move the plunger on the hand pump/primer up and down repeatedly, until an air free
stream of fuel flows from the bleed screw. Filter is full when this occurs.
a
77381
c
b
a-Bleed screw
a-Plunger
b-Fuel from bleed screw
3. Tighten the bleed screw
