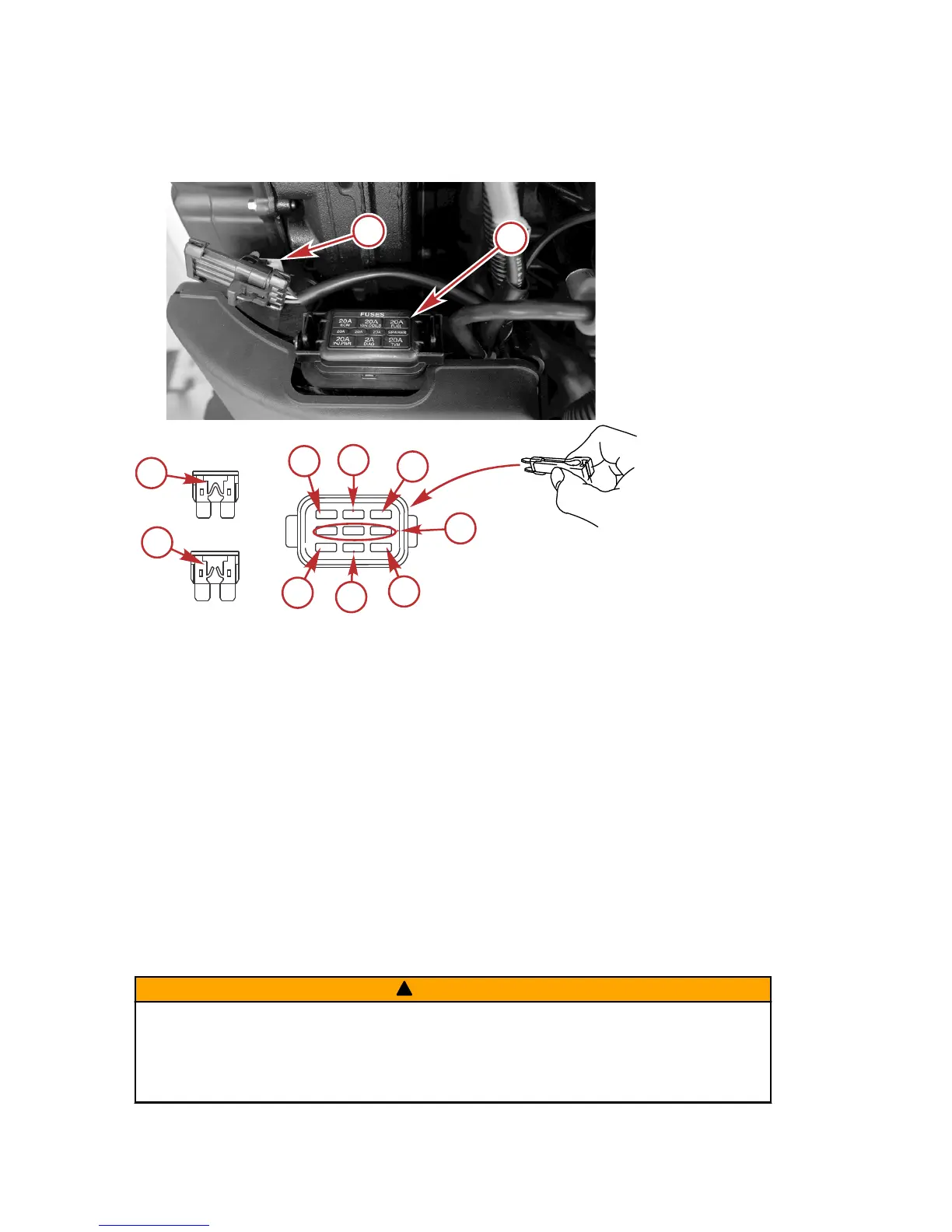

Remove the cover from the fuse holder. Remove the suspected blown fuse and
look at the silver band inside the fuse. If band is broken, replace the fuse.
Replace the fuse with a new fuse with the same amp rating.
a - Fuse puller
b - Fuse holder
c - Good fuse
d - Blown fuse
e - Electronic control module ‑ 20 amp
f - Ignition coils ‑ 20 amp
g - Fuel pumps ‑ 20 amp
h - Spare fuses (3)
i - Thrust vector module ‑ 20 amp (Joystick Piloting models only)
j - Diagnostics terminal ‑ 2 amp
k - Fuel injectors ‑ 20 amp
DTS Wiring System
!
WARNING
Splicing or probing will damage the wire insulation allowing water to enter the
wiring. Water intrusion may lead to wiring failure and loss of throttle and shift
control. To avoid the possibility of serious injury or death from loss of boat
control, do not splice or probe into any wire insulation of the DTS system.
