Midea VRF Service Manual

One-way Cassette MCAC-VTSM-2016-05
8 Indoor Unit
4. Service Spaces
Please avoid installing in the following places :
A place with flammable gas or material.
A saline place such as a seashore vicinity.
A place with sulphur gas.
A place with oil gas, such as kitchen.
A place with high-humidity air.
An unbearable place.
A place where high-frequency waves are generated.
The appliance shall not be installed in the laundry.
Please comply with the related national electric standard to make electric insulation for construction and
metal parts of air-conditioner.
Please choose the place where the ventilation is good.

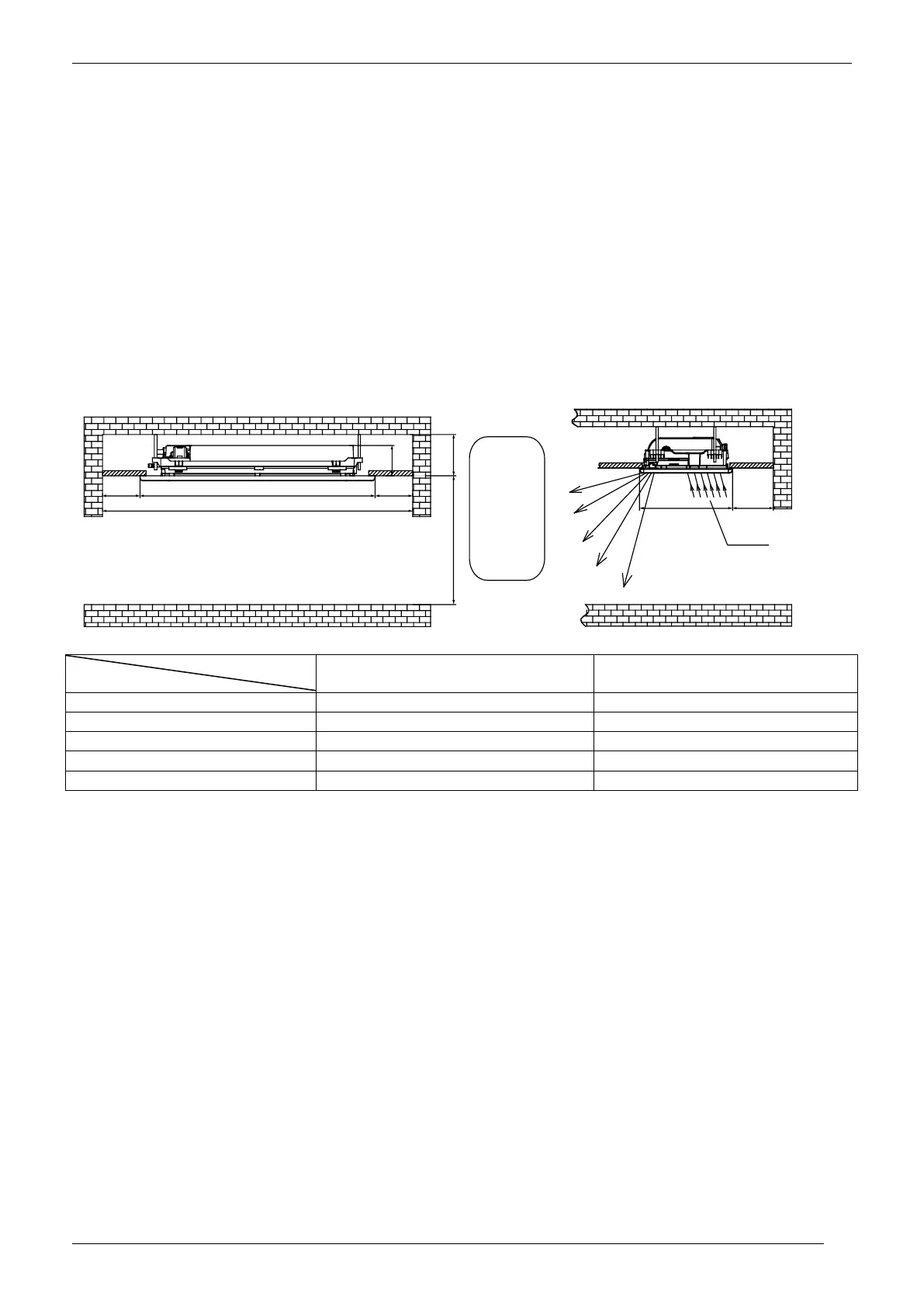

Ceiling space requires ≥C in.(mm).
The installation height of the unit cannot be higher than D in.(mm), or it will affect the operation effect.
≥C
≥B
A
≥3-15/16
(100)
C
≤D
Unit：in.(mm)
≥3-15/16
(100)
E
Fan angle range
Air return port
The air outlet can not has any barriers such as pendant lamp, folding screen etc.
Unit：in.(mm)
≥3-15/16
(100)
Unit : in.(mm)
Model
No.
18-36
45-71
A
46-29/64(1180)
53-5/32(1350)
B
54-21/64(1380)
61-1/32(1550)
C
6-1/32(153)
7-7/16(189)
D
125-63/64(3200)
157-31/64(4000)
E
18-5/16(465)
19-7/8(505)
