Midea VRF Service Manual

MCAC-VTSM-2016-05 Silent Four-way Cassette
Indoor unit 87

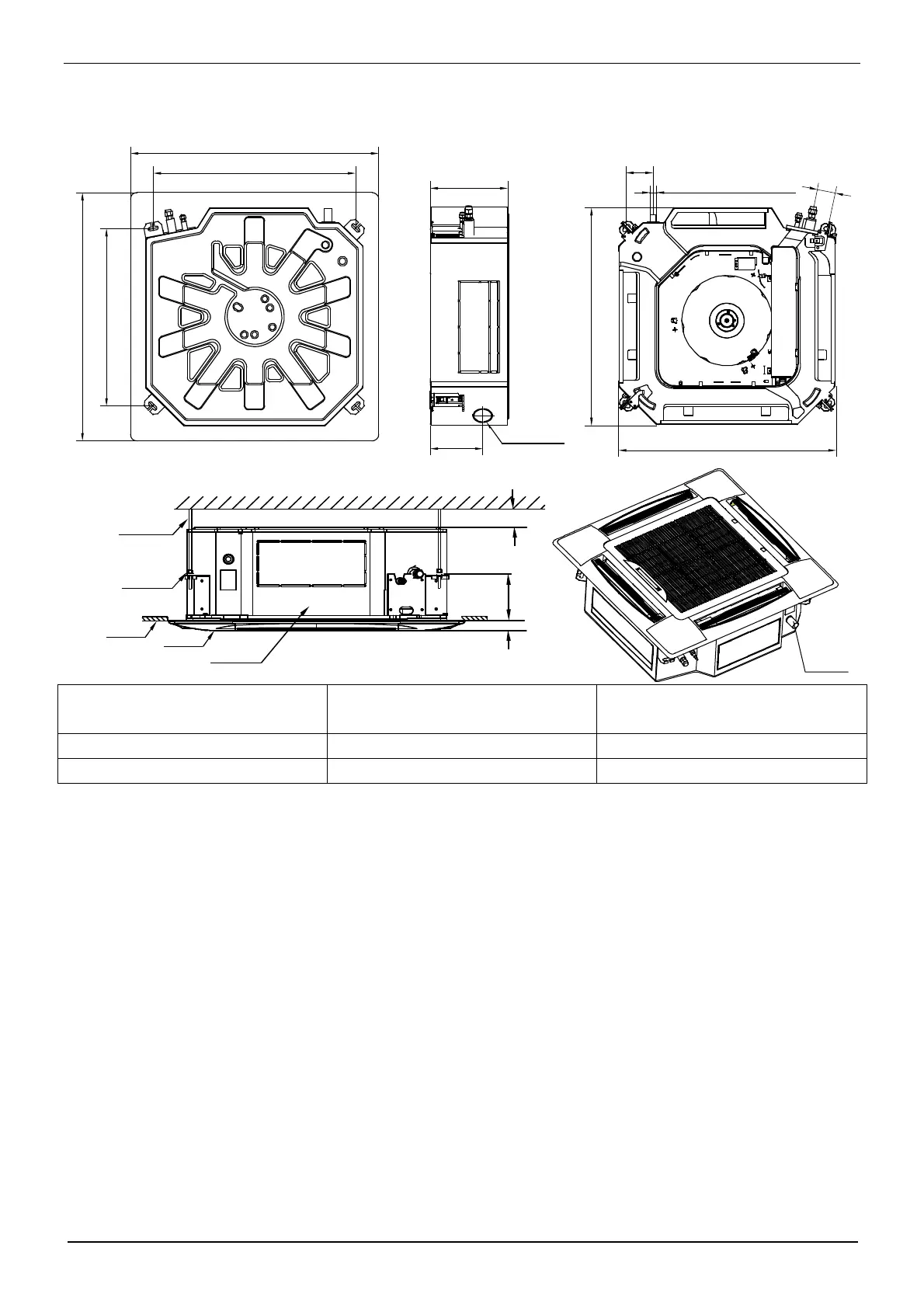

3. Dimensions
Unit：in. (mm)
Model
A
in. (mm)
B
in.(mm)
≤8kW 9-1/16 (230) 4-15/16 (126)
≥9kW 11-13/16 (300) 7-3/4 (197)
Φ75 Fresh air
supply orifice
37-13/32 (950)
30-45/64 (780)
26-49/64 (680)
37-13/32 (950)
A
B
4-9/64 (105)
φ1-1/4 (32) Drain pipe
2
-
3
/
4
(
7
0
)
33-5/64 (840)
33-5/64 (840)
≥25/32 (20)
1-13/16 (46)
Install hanger
Panel
Ceiling
Main body
Hexagon nut
(For adjust to balance)
Drain pip
e
5-3/4 (146)
