Four-way Cassette Type MCAC-VTSM-2016-05
64 Indoor unit

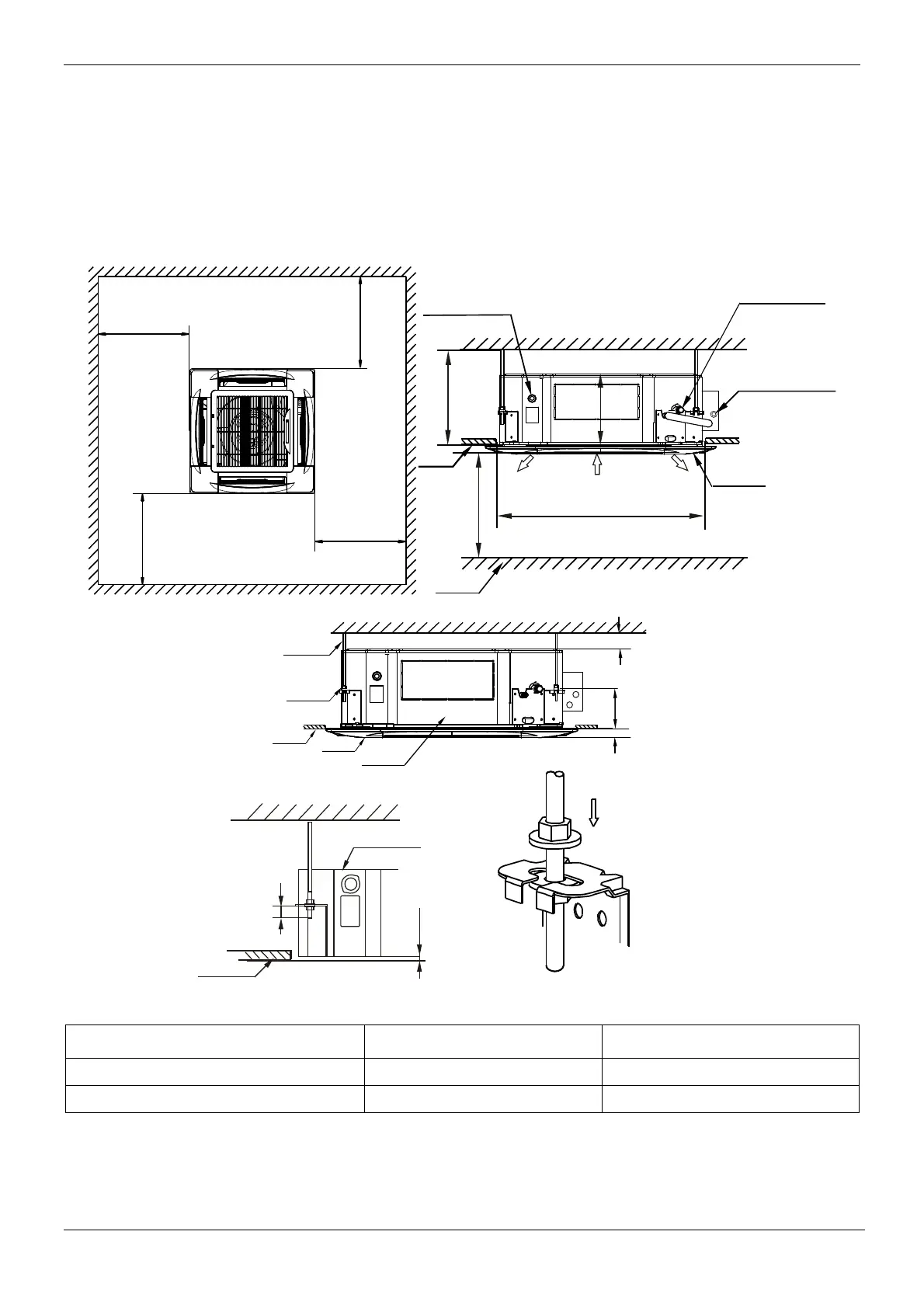

4. Service Spaces
1) There is enough room for installation and maintenance.
2) The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
3) The outlet and the inlet are not impeded, and the influence of external air is the least.
4) The air flow can reach throughout the room.
5) The connecting pipe and drainpipe could be extracted out easily.
6) There is no direct radiation from heaters.
>39-3/8
(1000mm)
>39-3/8
(1000mm)
>39-3/8
(1000mm)
>39-3/8
(1000mm)
A
H
>98-7/16
(2500mm)
Connet to the outlet
of drain pipe
Connective port of
refrigerant pipe
(Air side)
(Liquid side)
Connective port
of refrigerant pipe
Floor
Ceiling
Panel
Air outlet Air inlet Air outlet
34-21/32(880 mm) (Ceiling hole)
≥25/32(20)
1-13/16(46)
5-3/4
(146)
Install hanger
Panel
Ceiling
Main body
Hexagon nut
(For adjust to balance)
L
13/32～15/32
(10～12mm)
Main body of the unit
Ceiling
Unit: in(mm)
Indoor unit
in(mm)
H
in(mm)
MDV-D28Q4/N1-D～ MDV-D80Q4/N1-D
9-1/16(230)
≥10-1/4(260)
MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D
11-13/16(300)
≥13(330)
