Midea VRF Service Manual

MCAC-VTSM-2016-05 Four-way Cassette Type
Indoor unit 63

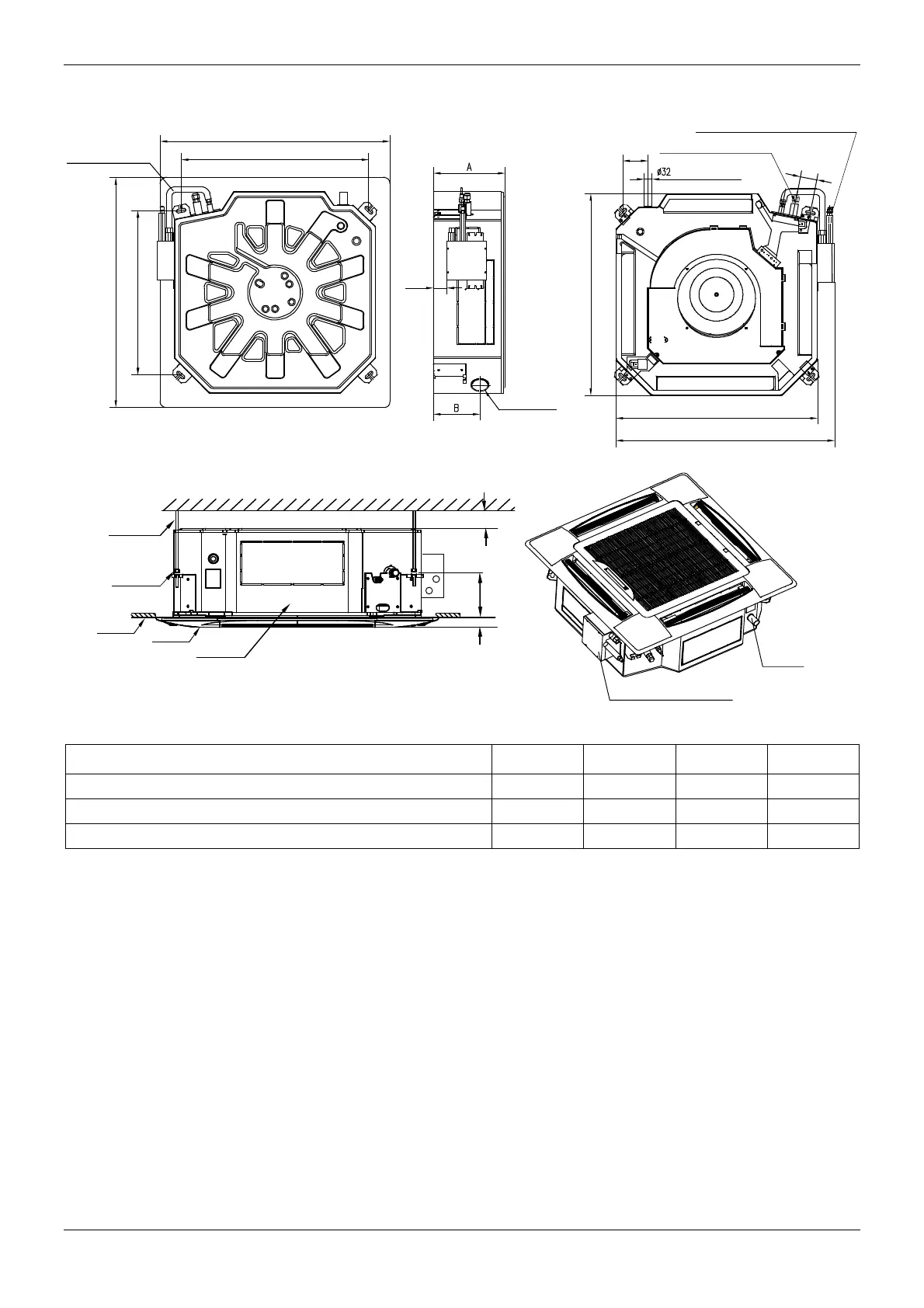

3. Dimensions
Unit: in(mm)
The connective pipe
of restricted assembly
(accessories)
Φ75New air
supply orifice
Drain pipe outter diameter
2-5/32
(55)
37-13/32(950)
30-23/32(780)
37-13/32(950)
26-25/32(680)
4-1/8
(105)
33-1/16(840)
33-1/16(840)
35-19/32(904)
2
-
3
/
4
(
7
0
)
Refrigerant pipe orifice(Liquid side C)
Refrigerant pipe orifice(Air side D)
≥25/32(20)
1-13/16(46)
5-3/4 (146)
Install hanger
Panel
Ceiling
Main body
Hexagon nut
(For adjust to balance)
Drain pipe
Electrical restricting assembly
Indoor unit model
A
in(mm)
B
in(mm)
C
in(mm)
D
in(mm)
MDV-D28Q4/N1-D～ MDV-D45Q4/N1-D 9-1/16(230) 6-11/16(170) 1/4(Ф6.35) 1/2(Ф12.7)
MDV-D56Q4/N1-D～ MDV-D80Q4/N1-D 9-1/16(230) 6-11/16(170) 3/8(Ф9.53) 5/8(Ф15.9)
MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D 11-13/16(300) 7-15/32(190) 3/8(Ф9.53) 5/8(Ф15.9)
