MCAC-VTSM-2016-05
Two-way Cassette Type

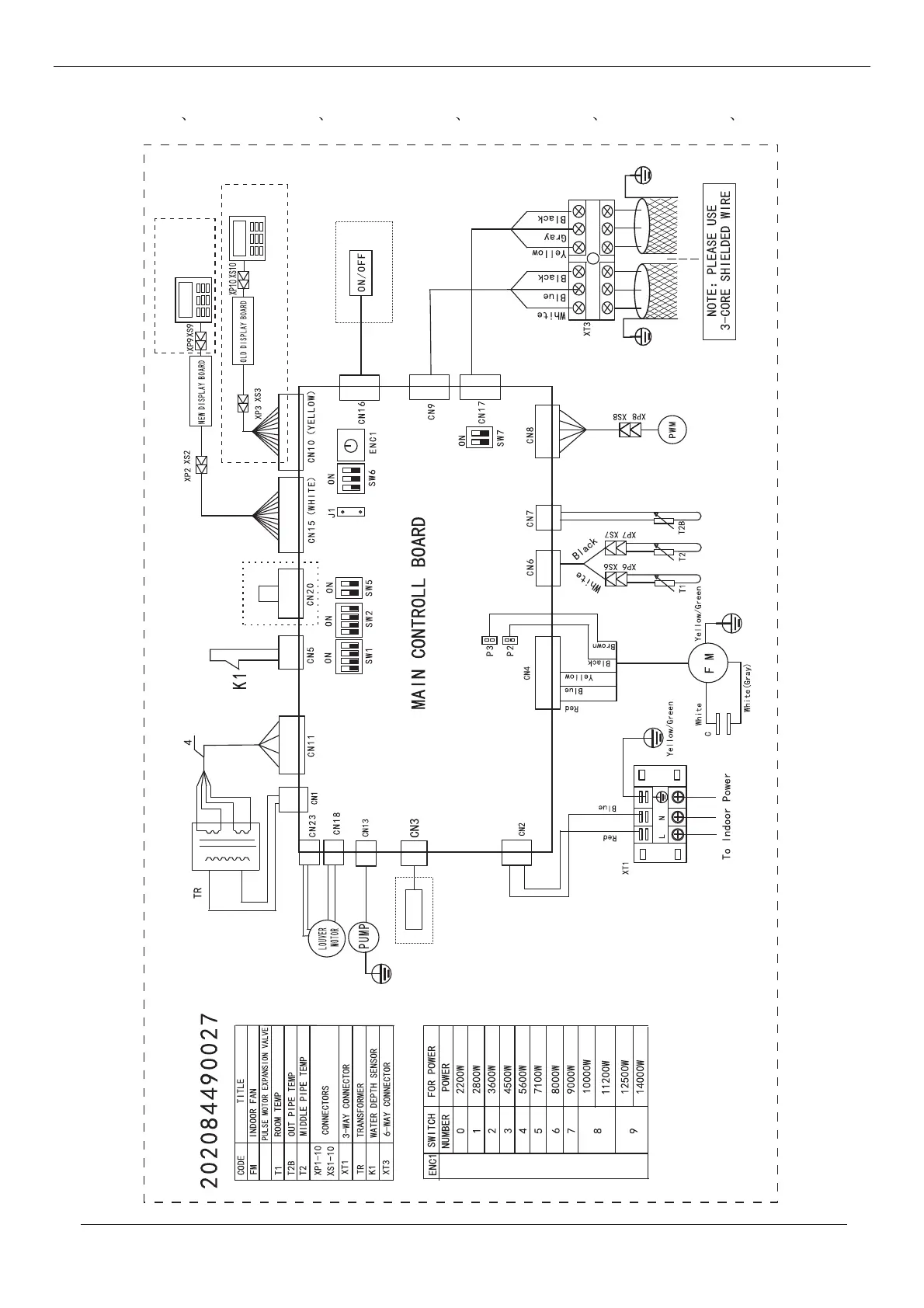

6. Wiring diagram
MDV-D22Q2/VN1 MDV-D28Q2/VN1 MDV-D36Q2/VN1 MDV-D45Q2/VN1 MDV-D56Q2/VN1 MDV-D71Q2/VN1
31
Indoor Unit
PWM
P Q
(E)
X Y
(E)
TO OUTDOOR
COMM. BUS
TO CCM
COMM. BUS
To Wire Controller
To Wire Controller
ALARM
