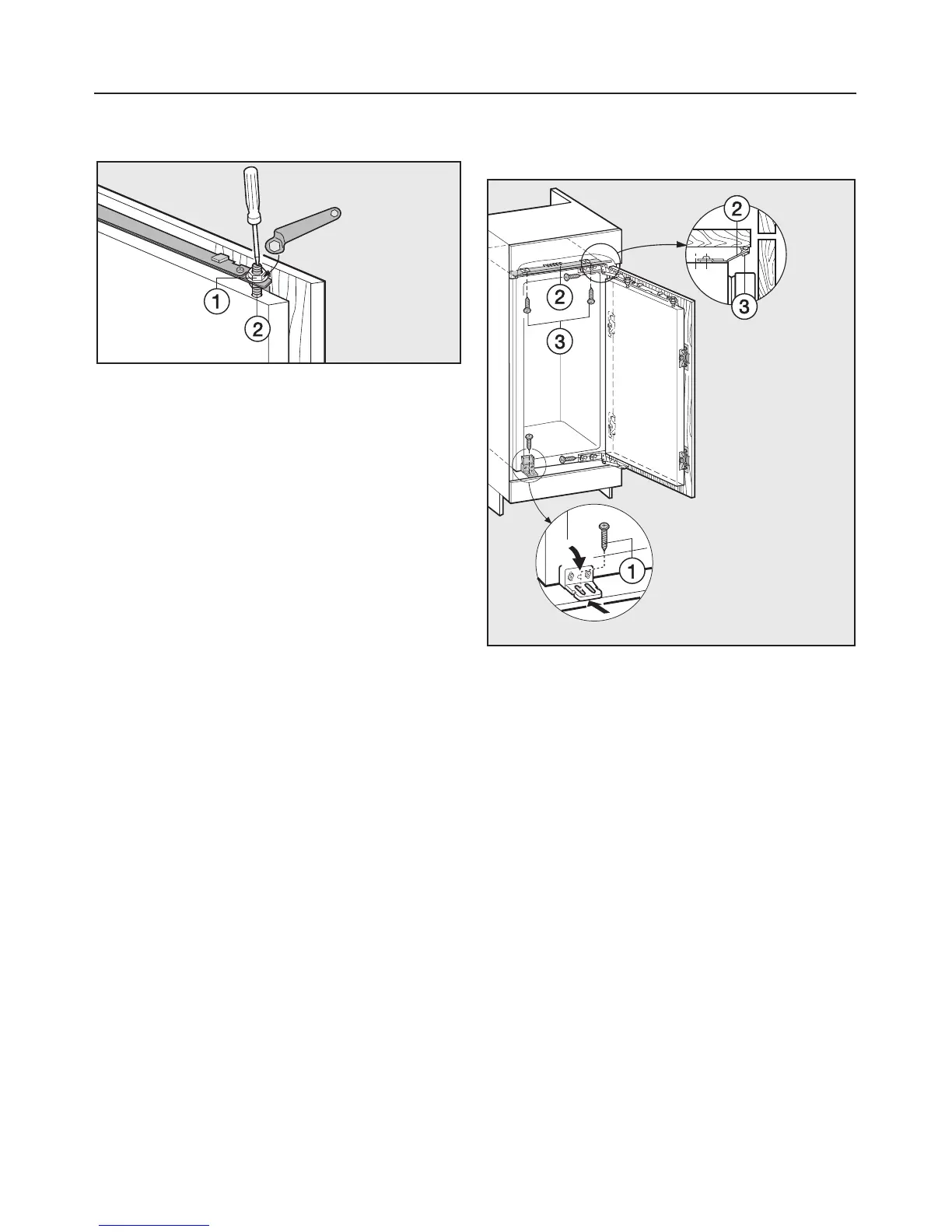

Securing the appliance
^
Whilst counterholding the adjusting
bolts b with a screwdriver, tighten
nuts a at the top of the appliance
door.
^ Tighten all screws.
Securely screw the appliance to the
housing unit at the top and bottom:
^ Flap the plastic bracket up and
screw a second screw a through the
plastic bracket. Tighten both screws
and flap the plastic bracket back
down.
^
Align the cover strip b by sliding it
parallel to the top of the housing unit.
The cover strip must not protrude.
^
Secure the cover strip to the top of
the housing unit using the short 4 x
14 mm chip board screws c.
Building in the appliance
32
