Fitting a door front panel made
by another manufacturer
Preparing the front panel

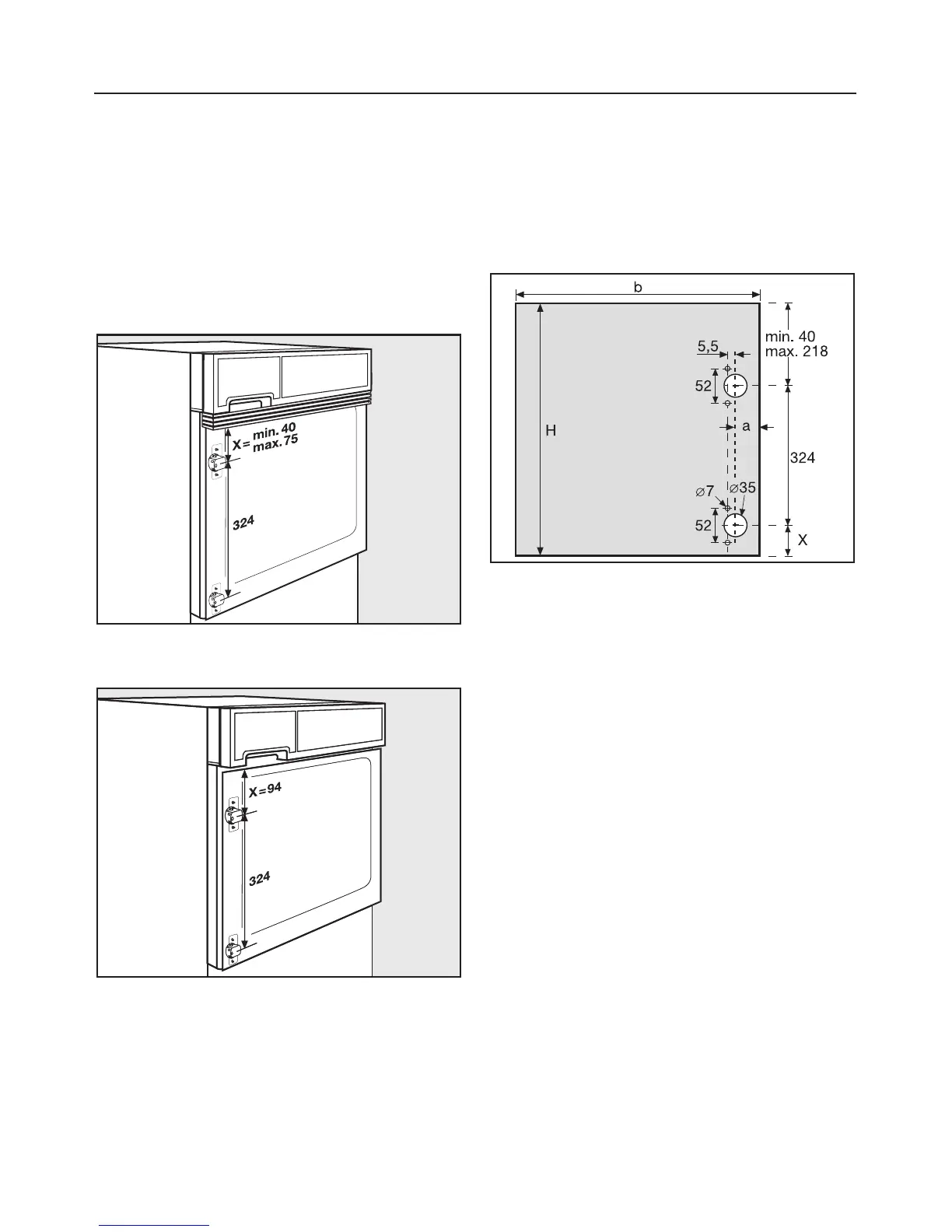

A Measure distance X for drilling the
hinge holes.
–
with spacer bars:
– without spacer bars:
(the front panel must be
correspondingly higher)
B Mark the two hinge holes and the
four smaller holes as shown in the
diagram.
–
front panel shown decor side face
down, upper edge at the bottom:
if width b increases, measurement a
must also be increased
b = 592 mm N a = 21.5 mm
b = 593 mm N a = 22.0 mm
b = 594 mm N a = 22.5 mm
b = 595 mm N a = 23.0 mm
b = 596 mm N a = 23.5 mm
The height of the door front panel H
corresponds to the door height of the
adjacent units.
C Drill the two hinge holes (C 35
mm/15.5 mm deep) in the back of
the front panel.
D Next, drill the four smaller holes (C 7
mm/10 mm deep) in the back of the
front panel.
Installation and connection
68
