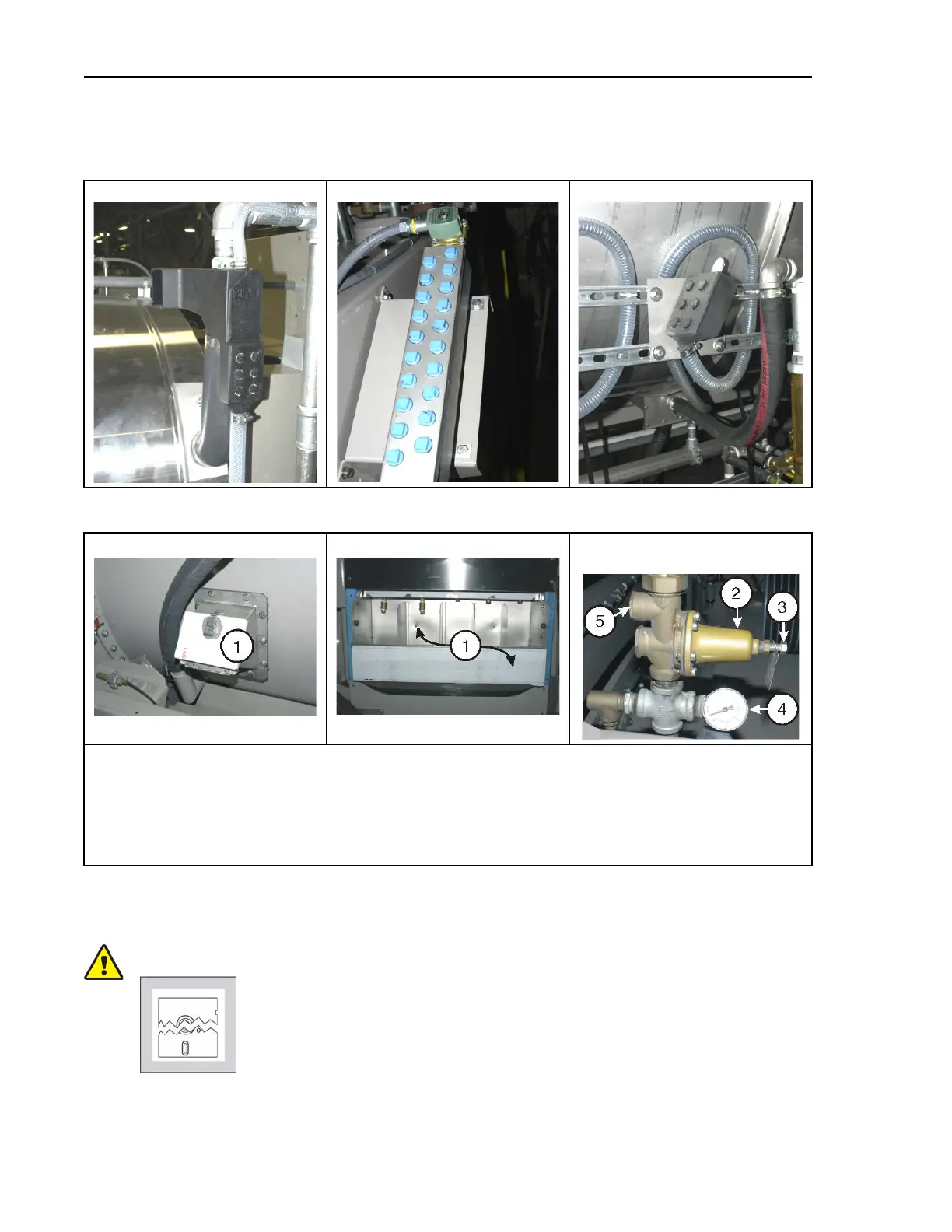

Figure 10. Chemical Inlet Manifolds for Chemical Pump Systems. See caution statement below.
These are examples. Your machine can look different.
36026V7J
60044WP2
76039CBW
®
Figure 11. Soap Chute and Optional 5-compartment Supply Injector. These are examples. Your
machine can look different.
Soap Chute
Supply Injector
Flush Water Adjustment
Components
Legend
1...Do not let chemical supplies stay on surfaces.
2...Water pressure regulator. See caution statement below.
3...Adjustment screw
4...Water pressure gauge
5...Strainer inside
3.2.4 Water and Steam Devices
BNWUUH01.C10 0000351753 A.5 B.21 A.6 10/22/21 3:55 PM Released
CAUTION: Restricted air flow — can cause incorrect level readings.
� Keep the connecting tube or hose free of blockages and leaks.
� Make sure that the connections are tight.
