5-2
5.3 Disassembly Guide
5.3.1 Removing the Covers

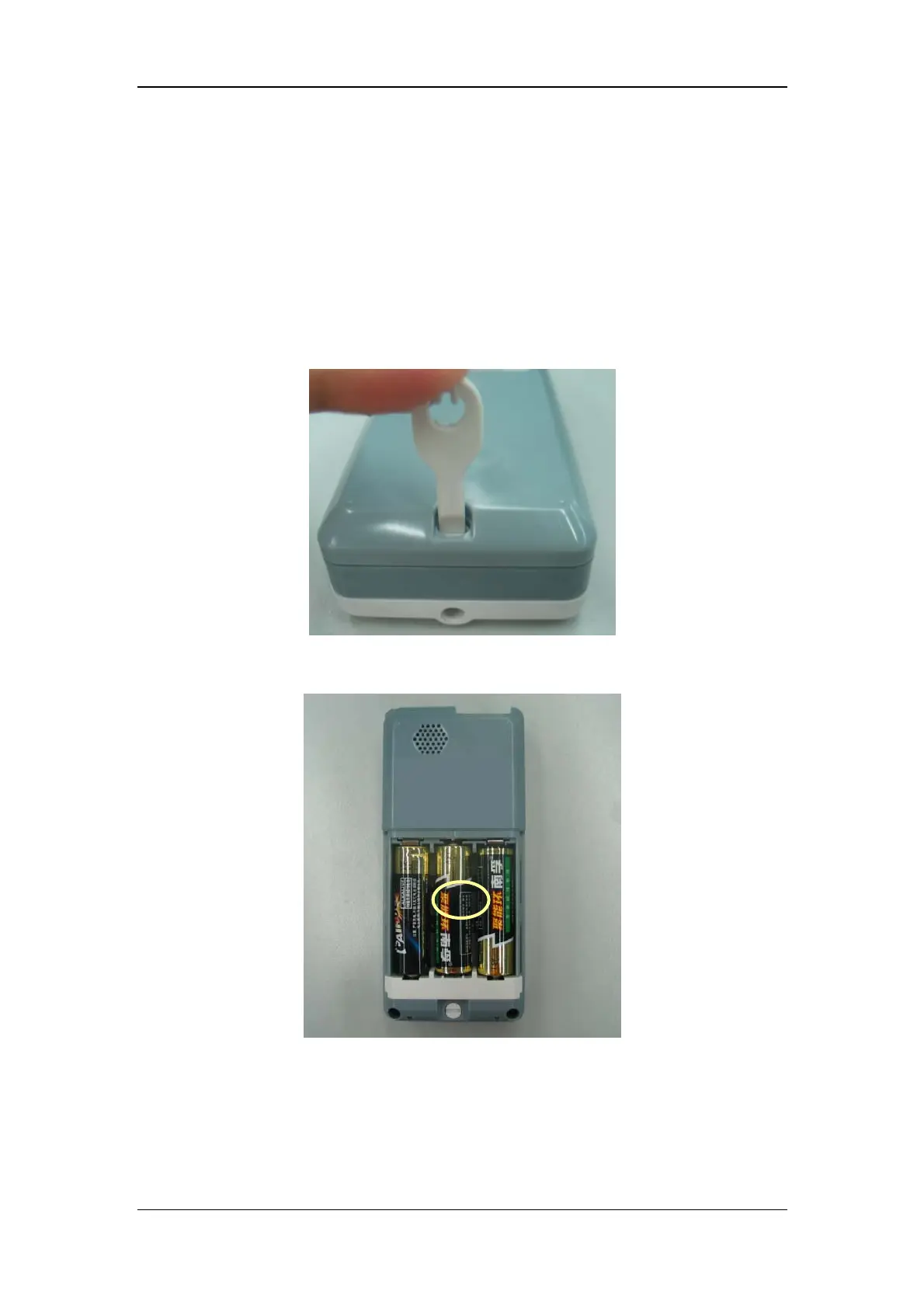

1. As shown in the figure, rotate the battery door key for 90° to loose the lock pin that
secures the battery door. Open the battery door and remove the batteries.
