Trio™ Operating Instructions 0070-10-0666-01 2 - 79
Operations Trends
2.6.2 List Trend
The List Trend display allows the user to view a tabular list of stored vital sign data. Select
LIST TREND from the SYSTEM MENU to access this menu/display (see FIGURE 2-56). A
maximum of 24 hours of data may be stored. When List Trend reaches the maximum number
of data entries, the oldest entry will be deleted from the trend record in order to allow
storage of a new entry. The List Trend data can be set to display in 1min, 2min, 3min,
4min, 5min, 10min, 15min, 30min, or 1HR intervals.

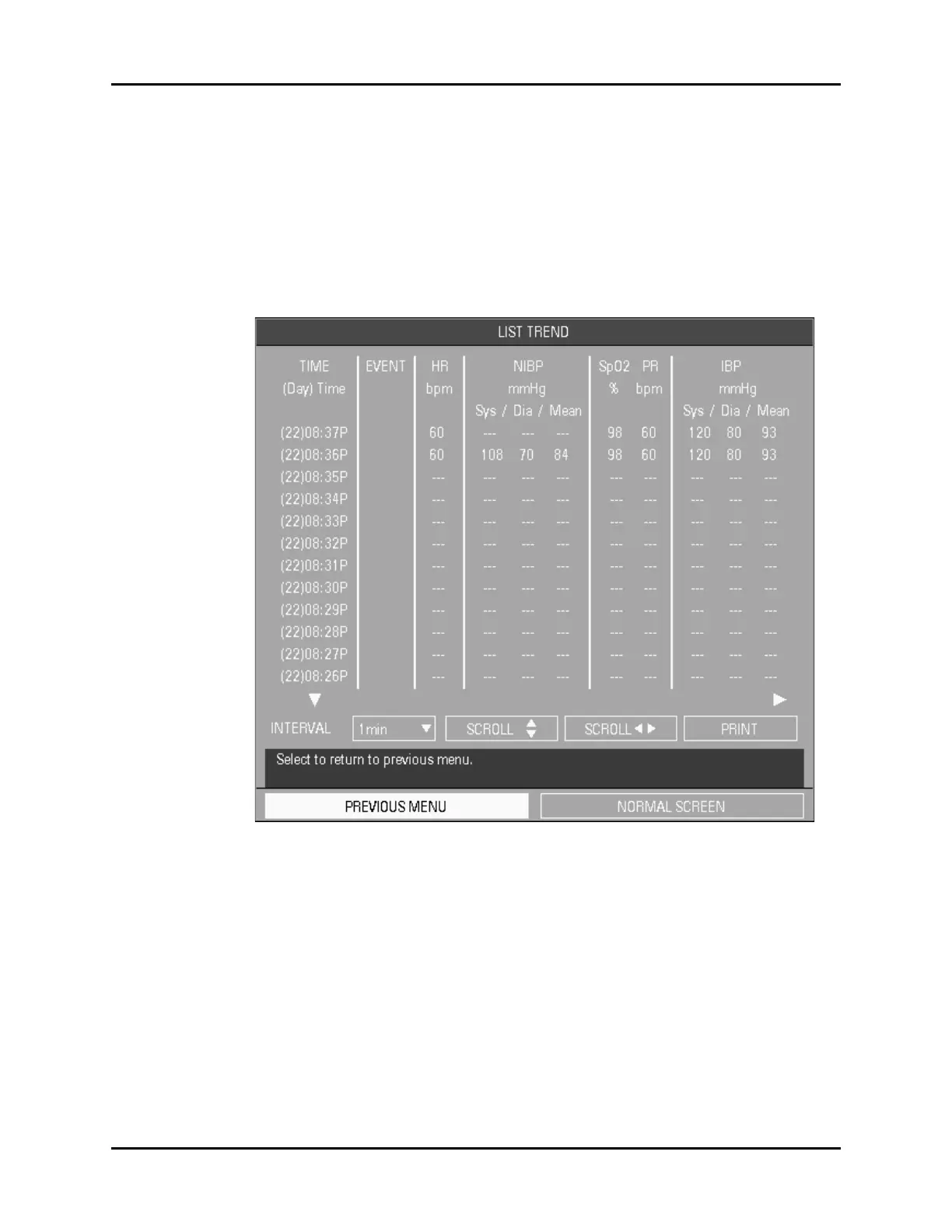

FIGURE 2-56 List Trend Menu/Display
In the List Trend display, time stamps are displayed in the far left column, with the most recent
data appearing at the top. Any alarm violations appearing in the list trend view are
indicated by inverse video. The LIST TREND displays several parameters of data at a time.
Parameter data displays from left to right, in the following order: HR, NIBP, SpO2, PR,
IBP, RESP and TEMP. Use the SCROLL key to view additional parameter data.
NOTE: When the monitor is powered OFF, list trend data is
maintained for 2 hours. If the monitor remains OFF for more
than 2 hours, the list trend data is deleted.
