T
rio™ Operating Instructions
0070-10-0666-01
1 - 3
General Product Description
Front Panel
1
.1
F
ront P
anel

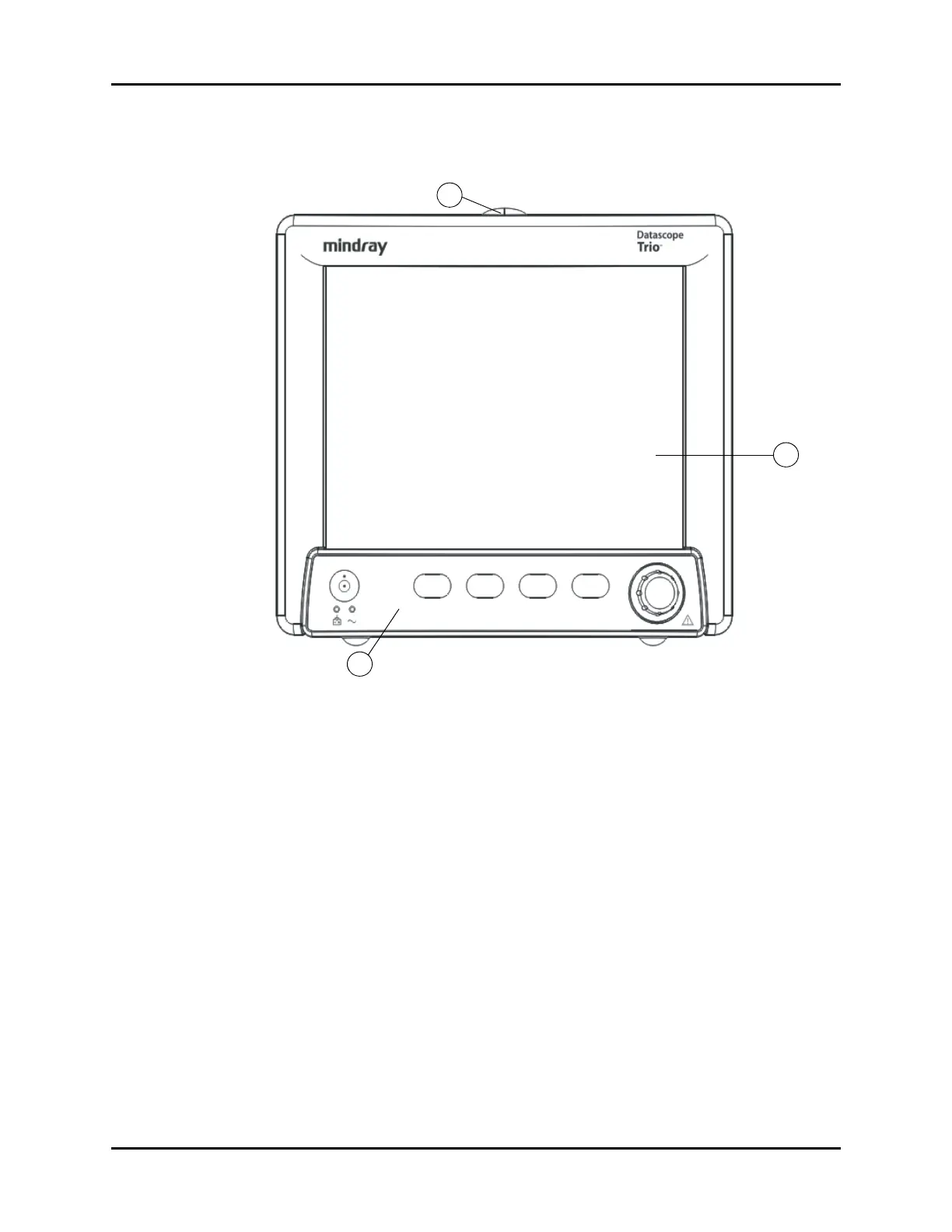

FIGURE 1-1
Front View of Monitor
1.
Alarm Light
Illuminates when an alarm is triggered.
2.
Display
8.4” color TFT LCD (800 x 600 resolutio
n).
3.
Front Panel Keypad
Navigator
™
Knob and dedicated
quick-action keys.
1
2
3
17
19
Table of Contents
Default Chapter
4
Table of Contents
4
Foreword
8
Warnings, Precautions and Notes
8
Warnings
9
Precautions
10
Notes
14
Indication for Use
14
Unpacking
14
Symbols
15
General Product Description
16
Front Panel
18
Front Panel Keypad
18
Display
21
Left Side Panel
25
Right Side Panel
26
Rear Panel
27
Getting Started
30
Setting-Up Patients
30
Operations
30
Setting the Clock (Date and Time)
31
Menus
31
System Menu
32
Patient Setup
32
List Trend
34
Graphic Trend
34
Mark Event
35
Monitor Setup
35
Maintenance
42
Normal Screen
42
Parameter Menus
43
Electrocardiogram (ECG) Monitoring
43
Respiration Monitoring
58
Spo Monitoring
61
NIBP Monitoring
73
Temperature Monitoring
82
IBP Monitoring (Optional)
85
Alarms
92
Alarm Categories
92
Alarm Priorities
93
Alarm Setup Menus
93
Alarm Troubleshooting
104
Trends
105
Graphic Trend
105
List Trend
108
Recorder (Optional)
111
Print Functions
111
Recorder Troubleshooting
115
Defaults
116
Default Configurations
116
Factory Default Configuration
116
User Default Configuration
116
Current Configuration
121
Non-Volatile Configuration
122
User Maintenance
124
Introduction
124
Decontamination of the Monitor
125
Care and Cleaning of the Monitor
125
Care and Cleaning of Accessories
126
Spo Sensors
126
Blood Pressure Cuffs
127
Temperature Sensor Cleaning and Disinfection (Reusable)
129
Battery Replacement and Maintenance
129
Recorder Maintenance
130
Recorder Paper Replacement
131
Care and Storage of Thermal Paper
132
Care and Cleaning of ECG Cables and Leadwires
132
Accessories
134
Optional Accessories
134
NIBP Accessories
134
Oximetry Sensors and Accessories
136
Reusable Temperature Probes
137
Disposable Temperature Probes
137
ECG Accessories
137
IBP Accessories
138
Miscellaneous Accessories
138
Mounting Kits and Accessories
139
Replacement Parts, Trio Rolling Stand
139
Appendix
140
Specifications
140
Safety Standards
140
Safety Designations
141
Performance / Accuracy
142
Environmental / EMC
143
United States Food and Drug Administration Documents
143
Patient Parameter Specifications
144
Ecg
144
ECG Performance Requirements
144
ANSI/AAMI EC13-2002 Compliance
146
ECG Systole Detector and Heart Rate Meter
147
ECG Respiration Performance Requirements
148
NIBP Sub-System Performance Characteristics
148
IBP Parameter Sub-System Performance Characteristics
151
IBP Safety Requirements
151
Temperature Parameter Performance Characteristics
152
Spo Performance Requirements
152
Physical Specifications
156
Information Display and Control
156
LED Indicators
156
Real Time Clock
157
Input/Output Communications
157
Power Supply
158
AC Mains Power Source
158
Battery Power
158
Data Storage
159
Printers
160
Physical Characteristics
160
Environmental and Safety Characteristics
161
Warranty Statements
167
Phone Numbers and How to Get Assistance
168
Manufacturer's Responsibility
168
Other manuals for Mindray Trio
Service Manual
82 pages
