INSTALLING AN EXTERNAL TRANSDUCER
An external transducer is not included with your trolling motor. An external transducer can be installed onto motors that do not have a
built in transducer.

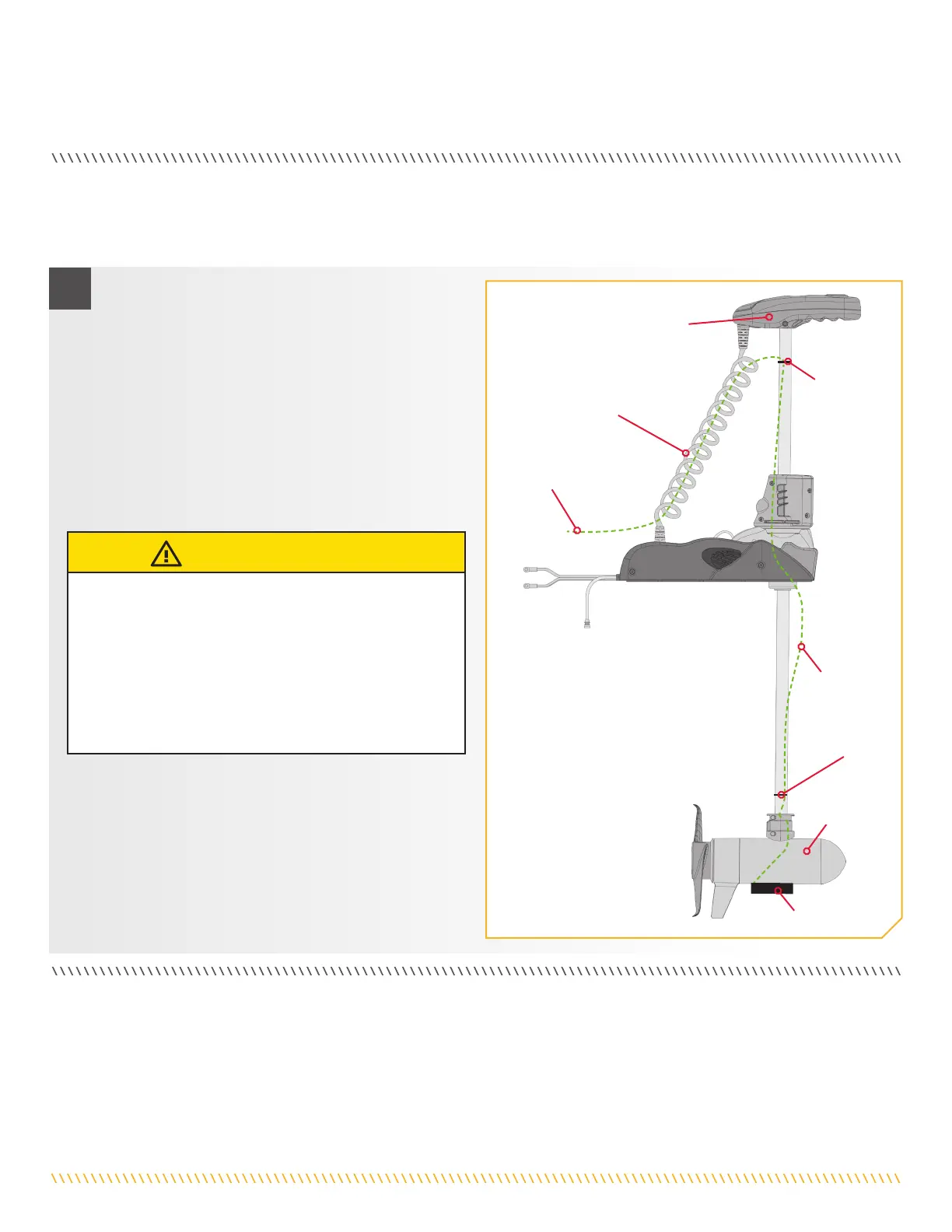

INSTALLING AN EXTERNAL TRANSDUCER
a. Mount the External Transducer according to
directions provided with the transducer.
b. Leave enough slack in the Transducer Cable
between the Lower Unit and Control Head to allow
the motor to properly stow and deploy.
c. Use two tie wrap cables to secure the Transducer
Cable to the Shaft just above the Lower Unit and
just below the Control Head.
d. Run the Transducer Cable through the Coil Cord to
the power supply.
Slack
Tie Wrap Cable
Lower Unit
Tie Wrap
Cable
External Transducer
Transducer Cable
Coil Cord
Control Head
1
CAUTION
Not following the recommended wire routing for the External
Transducer Cables may cause damage to the product and
void your product warranty. Take care to test the length and
placement of cable to be sure that there is enough slack
where needed and that cables are free of being entangled
in moving parts. Routing the cables in any way other than
directed may cause damage to the cables by being pinched
or severed.
